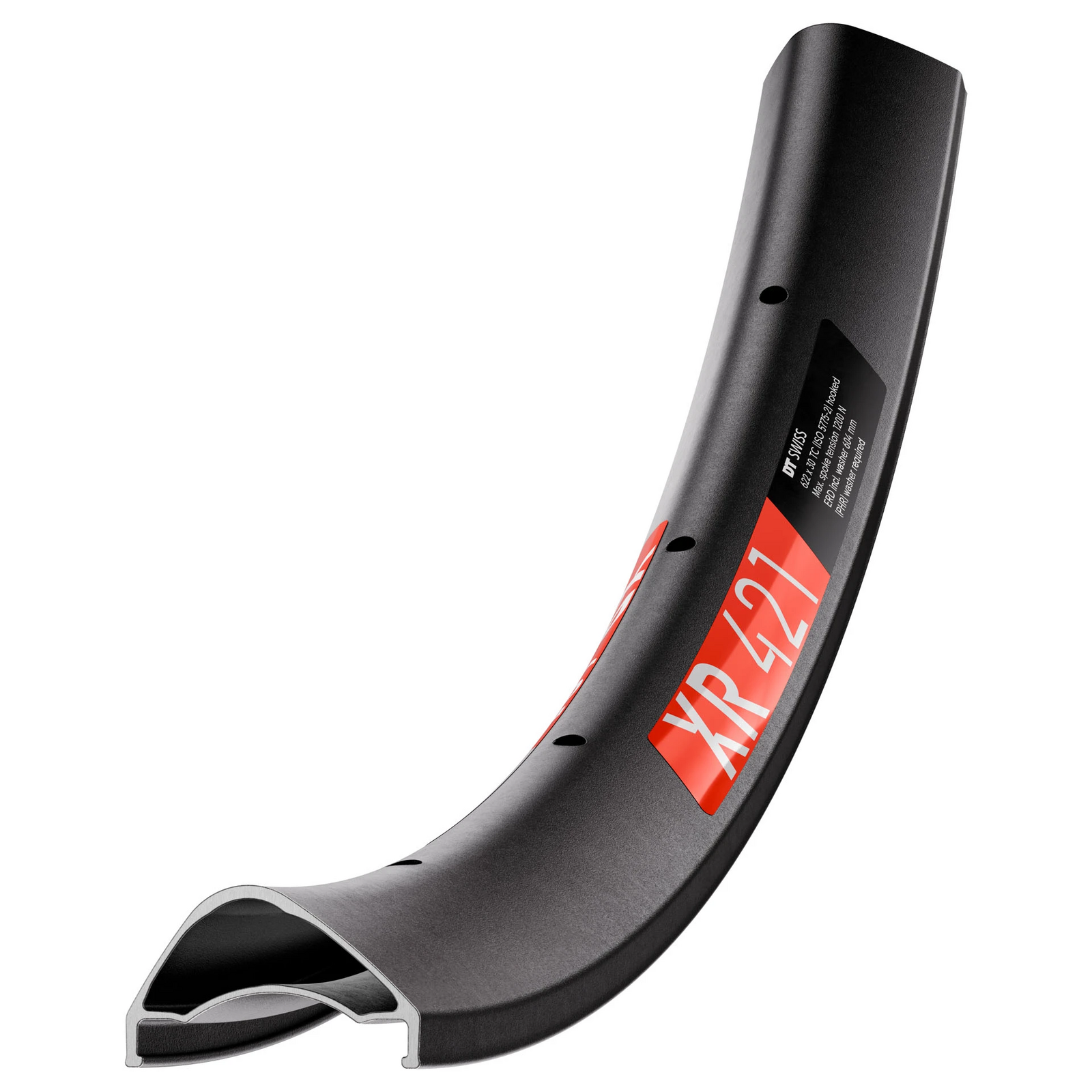

DT Swiss XR 421 XC MTB Rim 29" 28H
SKU code: APO-DTR0115
The DT Swiss XR 421 is DT's aluminium cross-country rim and the replacement for the XR 391, now 30 mm wide inside (the XR 391 was 25 mm) so modern XC tyres up to 2.7" sit with more support. A lightweight, flatter asymmetric profile keeps spoke tension even, lap after lap.
Highlights
- Asymmetric profile: evens out spoke tension between the two sides of the wheel for a stronger, more durable build
- Flatter, lightweight profile: 548 g in 29", 20 mm deep
- 30 mm internal width for 2.1–2.7" tyres (DT's recommended range for a 30 mm rim)
- ASTM 3 (cross-country) and a 120 kg maximum system weight (rider, bike and gear); DT approves it for e-bikes (max. 32 km/h / 250 W)
- In the box: alloy DT Pro Lock Squorx nipples (black), PHR washers and three spare decals (black, chrome, gold)
Construction
A welded aluminium rim with a non-eyelet PHR (Pro Head Reinforcement) spoke bed: the supplied washer under each nipple spreads the load across the rim bed without eyelets. Hooked, tubeless-ready (TC) bead, Presta valve hole, disc brake only. 30 mm internal, 35 mm external, 20 mm deep.
Compatibility & fit
This is the 29" (622 mm), 28-hole version: 548 g, ERD 604 mm (DT's figures). DT makes the XR 421 in 29" 28H only. Set it up tubeless with 32 mm tape and a Presta valve. Build it with the supplied nipples and PHR washers; the maximum spoke tension is 1200 N. A front or rear wheel takes the same rim. Want it built? It is the rim in our hand-built XR 421 wheelsets, laced, tensioned and trued in Marrickville.
DT Swiss covers this rim with a 24-month warranty against material and manufacturing defects from the date of purchase. Wear, crash damage and incorrect building are not covered, and riding outside the rim's ASTM category voids it. DT's Fair-Share crash replacement applies to carbon rims only.
For any warranty support, return the rim to Tune Cycles and our team handles the claim with Apollo, DT Swiss's Australian distributor.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
- Aluminium cross-country rim, asymmetric profile; replaces the XR 391
- 30 mm internal, 35 mm external, 20 mm deep
- 29" (622), 28H, ERD 604 mm, 548 g
- Welded joint, non-eyelet PHR spoke bed
- Hooked tubeless-ready (TC), Presta, disc only
- ASTM 3, 120 kg max system weight, e-bike approved
- Ships with alloy DT Pro Lock Squorx nipples (black), PHR washers and spare decals
| Specification | Value |
|---|---|
| Brand | DT Swiss |
| Model | XR 421 |
| Discipline | XC |
| Diameter | 29" (ETRTO 622 x 30) |
| Spoke holes | 28H |
| Internal / external width | 30 mm / 35 mm |
| Rim depth | 20 mm |
| ERD | 604 mm |
| Weight | 548 g |
| Material / joint | Aluminium / welded |
| Spoke bed | Non-eyelet PHR (washers supplied) |
| Tyre interface | Hooked tubeless-ready (TC) |
| Recommended tyres | 2.1–2.7" |
| Tubeless tape / valve | 32 mm / Presta |
| Brake | Disc only |
| Max spoke tension | 1200 N |
| ASTM / max system weight | 3 / 120 kg |
| E-bike approved | Yes (max. 32 km/h / 250 W) |
| In the box | Alloy DT Pro Lock Squorx nipples (black), PHR washers, spare decal set |
| Colour | Black |
| Replaces | DT Swiss XR 391 |
| DT article | RDXR42CDPW28SA0756 |
| SKU | APO-DTR0115 |
