DT Swiss XMC 320 Carbon Trail/All-Mountain MTB Rim 27.5" 28H
SKU code: APO-DTCR006
In Stock
The DT Swiss XMC 320 is a PURE Carbon trail and all-mountain rim that blends low weight with serious impact resistance. Its Carbon Shield reinforcement adds confidence on rocky, technical terrain without weighing the wheel down.
Highlights
- PURE Carbon trail/all-mountain rim with Carbon Shield impact reinforcement
- Wide 30mm internal width for stable, high-volume tubeless tyres
- Hookless TSS tubeless profile for a secure bead and reliable sealing
- Light yet tough at approx. 440 g (27.5"), ASTM Category 4
- E-bike approved (max. 32 km/h / 250 W) for eMTB builds
PURE Carbon construction

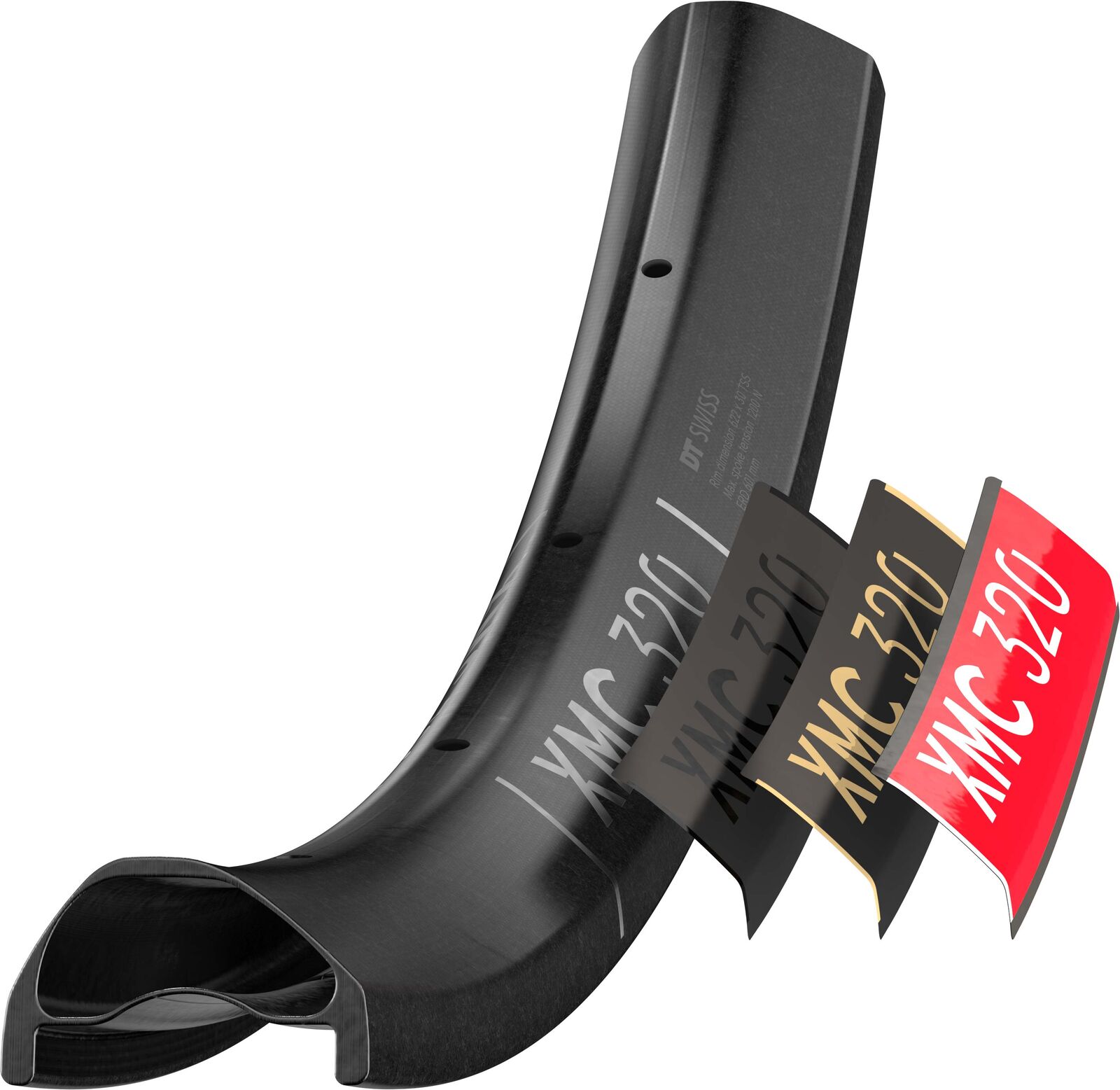

The XMC 320 uses DT Swiss's Carbon Shield technology, an impact-reinforced carbon layup that helps the rim shrug off hits on rough trail and all-mountain terrain while keeping weight to approx. 440 g (27.5"). The disc-specific profile is built for ASTM Category 4 trail use.
Compatibility & fit
27.5"/650B diameter, 28H drilling, disc-specific (no brake track). Hookless TSS tubeless ready; designed for Presta valves. Supports a maximum system weight of 120 kg.
This DT Swiss carbon rim carries a lifetime warranty to the first owner against material and manufacturing defects, plus the DT Swiss Fair Share crash-replacement programme: for 10 years from purchase a rim damaged in a riding accident can be replaced for a fixed contribution (carbon component rim), including new rim, nipples, tubeless tape, hand-build and return shipping. The original purchase receipt is required.
For any warranty or Fair Share support, please return the item to Tune Cycles and our team will handle the claim on your behalf.
- PURE Carbon trail/all-mountain rim with Carbon Shield reinforcement
- ASTM Category 4
- 30mm internal width, ~37mm outer width, 22mm depth
- 27.5"/650B diameter, 28H
- Hookless TSS tubeless
- Disc-specific profile
- Weight approx. 440 g
- E-bike approved (max. 32 km/h / 250 W)
- Maximum system weight 120 kg
| Brand | DT Swiss |
| Model | XMC 320 |
| Discipline | Trail / all-mountain MTB |
| Material | Carbon |
| Diameter | 27.5"/650B |
| Internal width | 30mm |
| Outer width | ~37mm |
| Rim depth | 22mm |
| Hole count | 28H |
| Brake type | Disc-specific |
| Tubeless | Hookless (TSS) |
| Valve | Presta |
| ASTM | Category 4 |
| Max system weight | 120 kg |
| E-bike approved | Yes (max. 32 km/h / 250 W) |
| Weight | Approx. 440 g |
| SKU | APO-DTCR006 |
| Barcode # | 7613052549309 |
