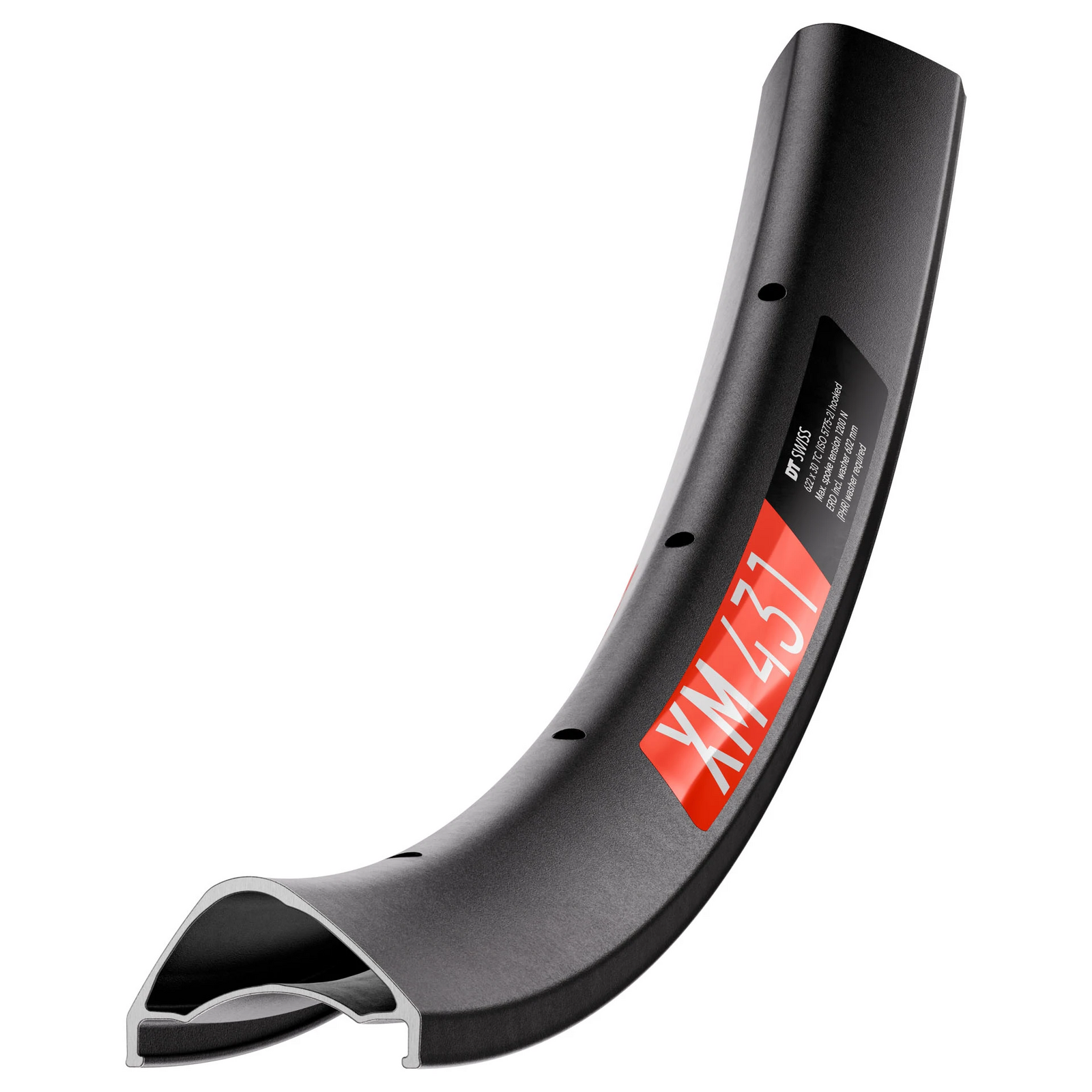

DT Swiss XM 431 All-Mountain MTB Rim 29" 28H
SKU code: APO-DTR0116
The DT Swiss XM 431 is DT's aluminium all-mountain rim and the replacement for the XM 481. It has an asymmetric profile that evens out spoke tension, wider rim horns for impact resistance, and a redesigned tyre contact patch for better lateral tyre support. Choose 27.5" or 29" — this listing is the 28-hole rim.
Highlights
- 30 mm internal, 35 mm external, 21 mm deep for 2.1–2.7" tyres (DT's recommended range for a 30 mm rim)
- ASTM 4 and a 120 kg maximum system weight (rider, bike and gear); DT approves it for e-bikes (max. 32 km/h / 250 W)
- Welded joint, non-eyelet PHR spoke bed, hooked tubeless-ready (TC) bead, Presta, disc brake only
- In the box: alloy DT Pro Lock Squorx nipples (black), PHR washers and three spare decals (black, chrome, gold)
Sizes
27.5" 544 g, ERD 564 mm / 29" 580 g, ERD 602 mm (DT's figures). Tubeless with 32 mm tape; maximum spoke tension 1200 N. Want it built? It is the rim in our hand-built XM 431 wheelsets, laced, tensioned and trued in Marrickville.
DT Swiss covers this rim with a 24-month warranty against material and manufacturing defects from the date of purchase. Wear, crash damage and incorrect building are not covered, and riding outside the rim's ASTM category voids it. DT's Fair-Share crash replacement applies to carbon rims only.
For any warranty support, return the rim to Tune Cycles and our team handles the claim with Apollo, DT Swiss's Australian distributor.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
- Aluminium all-mountain rim, asymmetric; replaces the XM 481
- 27.5" or 29", 28H
- 30 mm internal, 35 mm external, 21 mm deep
- ASTM 4, 120 kg, e-bike approved
- Ships with alloy DT Pro Lock Squorx nipples (black) and PHR washers
| Specification | Value |
|---|---|
| Model | DT Swiss XM 431 |
| Diameter | 27.5" or 29" |
| Spoke holes | 28H |
| Internal / external width | 30 mm / 35 mm |
| Rim depth | 21 mm |
| ERD / weight 27.5" | 564 mm / 544 g |
| ERD / weight 29" | 602 mm / 580 g |
| Spoke bed | Non-eyelet PHR |
| Tyre interface | Hooked tubeless-ready (TC) |
| Recommended tyres | 2.1–2.7" |
| Tape / valve | 32 mm / Presta |
| ASTM / max system weight | 4 / 120 kg |
| Max spoke tension | 1200 N |
| In the box | Alloy DT Pro Lock Squorx nipples (black), PHR washers, spare decal set |
| Replaces | DT Swiss XM 481 |
| SKU | APO-DT-XM431-28 |
| Brand | DT Swiss |
| Shipping Weight | 0.7000kg |
| Shipping Width | 0.700m |
| Shipping Height | 0.080m |
| Shipping Length | 0.700m |
