DT Swiss EX511 DT 240 Hybrid hand-built wheelset

A DT Swiss EX511 rim set laced 32-spoke front and rear to DT 240 Hybrid hubs, built by hand in our Marrickville workshop, tensioned, stress-relieved and trued before it leaves the bench. Our Pro wheel build and tubeless tape fitted are included and show as two free lines in your cart.

Before you order — what your bike decides

Wheel size — 29", 27.5" or mullet; mullet means 29" front and 27.5" rear. Read it off your tyre sidewall.
Rear axle — Boost 12 × 148 only on this wheelset: measure the inside of the dropouts.
Front axle — Boost 15 × 110 only on this wheelset: check the fork lowers.
Rotor mount — Centre Lock only on this wheelset: check your rotors.
Cassette — the freehub body follows it: Shimano 12-speed MTB is Micro Spline, SRAM Eagle is XD, Shimano 11-speed and older (and CUES LG) is HG. Offered here: Shimano Micro Spline.

Who it is for

For e-MTB riding — the rear hub is an e-bike-duty hub. Riding without a motor? The same rim on standard hubs is lighter and cheaper: see our DT Swiss EX511 DT 350 and Hope Pro 5 kits.

The rider's questions

How much can it carry? Max system weight (rider, bike and gear) 130 kg — the DT Swiss EX511 rating, the lowest-rated part of the build.
What tyres fit? 2.1–2.7" tyres are DT's recommended range for a 30 mm inner width; 1.85"–2.05" and 2.8" are possible. The tyre's own maximum pressure applies; the rim sets none.
E-bike? Yes — the DT 240 Hybrid is DT's e-bike-duty hub: DT recommends the Hybrid above 55 Nm of motor torque and requires it above 100 Nm.
How fast does the hub engage? 30 points of engagement — Ratchet EXP OS 30, 12° between clicks. DT's Ratchet EXP OS 30T service kit keeps it running (sold separately).
Warranty? DT Swiss parts 24 months from purchase; our build work is guaranteed. Any claim comes back to Tune Cycles — see the Warranty tab.
How long does it take? Built to order from supplier stock — we confirm the build date by email when you order.

Kit includes

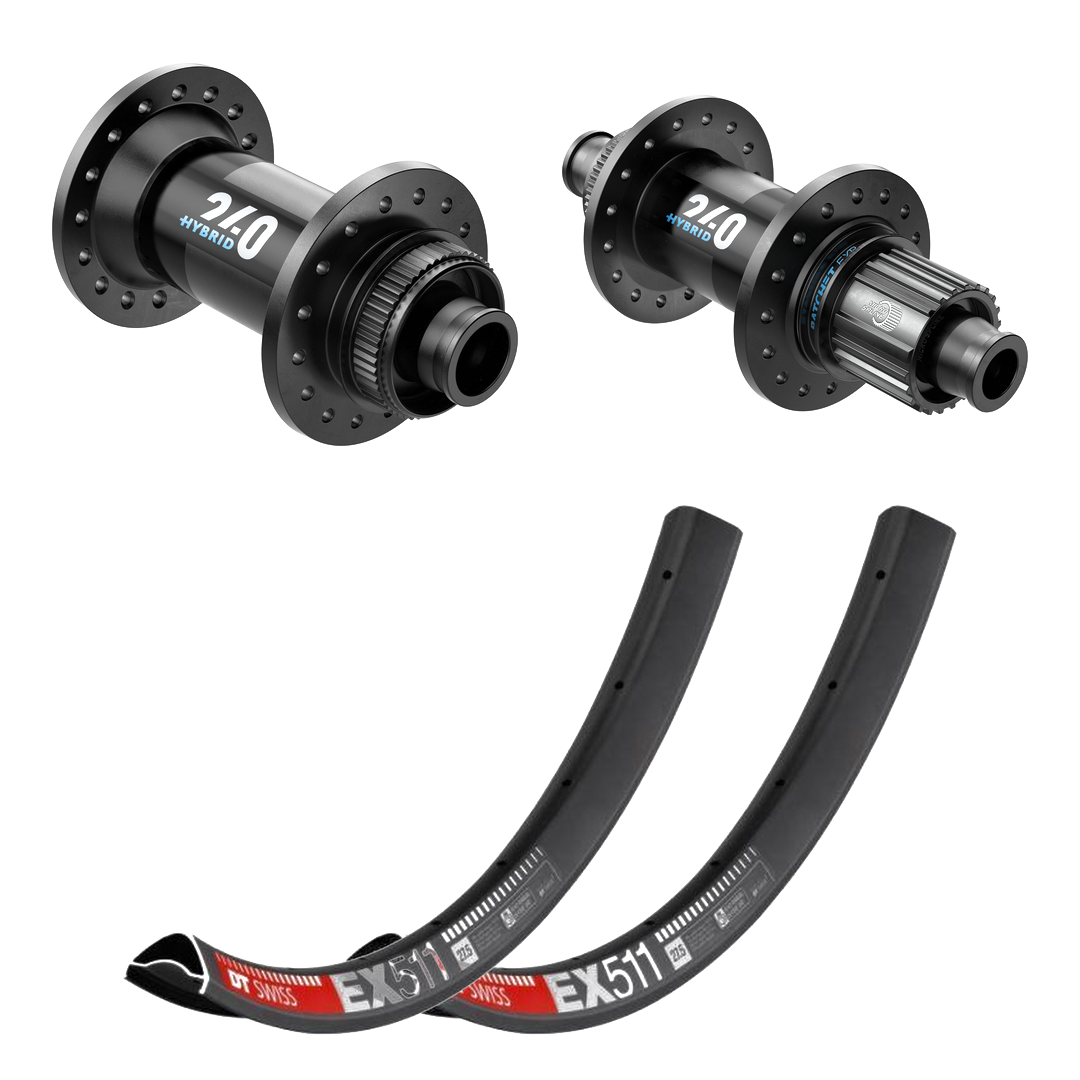

DT Swiss EX511 rim set — two 32H rims, 29", 27.5" or mullet
DT 240 Hybrid front hub, 32H: Centre Lock · Boost 15 × 110
32 × DT Swiss Competition 2.0/1.8/2.0 double-butted black J-bend spokes (front)
DT 240 Hybrid rear hub, 32H: Centre Lock · Boost 12 × 148 · freehub Shimano Micro Spline
32 × DT Swiss Alpine III 2.34/1.85/2.0 triple-butted black spokes (rear)

Options: rim diameter 29", 27.5" or mullet · tubeless valves (50 mm, up to 2).

Everything in the Wheelset box is built in. The rows under Upgrades are optional: tick what you want and the price updates. If you want us to lace a rim or hub you already own, that is a workshop job — contact us for a quote.

Sold separately (shown with this kit): tubeless sealant (Muc-Off No Puncture 140 ml), RT-CL700 203 mm Centre Lock rotor, the Shimano SM-RTAD05 adapter (runs a 6-bolt rotor on a Centre Lock hub; not with SM-RT86 / RT76 aluminium-carrier rotors), a Panzer tyre insert for e-bike loads, a cassette for your freehub body, tyres to suit (sizes above). Rotors: one per wheel, to match your rotor mount and your brake caliper's size range.

How we build it

Every wheel is laced by hand in Marrickville, brought up to tension evenly to the lower of the rim and hub limits (1200 N), stress-relieved and trued, then checked again before it is packed. Tubeless tape (32 mm) is fitted to the rim; add valves and sealant and it is ready for tyres.

Tune Cycles builds and fits these wheels. If you are unsure what your frame, fork or drivetrain takes, ask us before you order.

DT Swiss rims and hubs are covered for 24 months from purchase against material and manufacturing defects (dtswiss.com/en/support/warranty); riding outside the rim's ASTM category voids it. Our build — lacing, tension and truing — carries our workmanship guarantee. Any claim comes back to Tune Cycles: bring the wheel to Marrickville or contact us with your order number and we handle it with the brand. Wear, crash damage, corrosion and incorrect fitting are not covered.

DT Swiss EX511 rims — 30 mm internal, welded, PHR spoke bed, ASTM 4; 29", 27.5" or mullet
DT 240 Hybrid hubs — 30 points of engagement, Ratchet EXP OS 30; Centre Lock; Boost 15 × 110 or Boost 12 × 148; freehub Shimano Micro Spline
Spokes — 32 × DT Competition front, 32 × DT Alpine III rear (triple-butted for e-bike loads)
Your bike's fit from the dropdowns: size — nothing is pre-selected, choose each one
Hand-laced, tensioned, stress-relieved and trued in Marrickville — Pro wheel build and tubeless tape included (two free lines in your cart)
DT 240 Hybrid — DT's e-bike-duty 240: Ratchet EXP OS 30, hardened steel Micro Spline body, larger flanges
Editable kit: the Upgrades rows are optional and the price follows what you tick

	Front	Rear
Rim	DT Swiss EX511	DT Swiss EX511
Rim construction	welded, PHR spoke bed	welded, PHR spoke bed
Diameters offered	29", 27.5" or mullet	29", 27.5" or mullet
Internal width	30 mm	30 mm
Rim depth	21 mm	21 mm
ERD	27.5" 563 mm, 29" 601 mm	27.5" 563 mm, 29" 601 mm
Spoke holes	32H	32H
Hub	DT 240 Hybrid	DT 240 Hybrid
Axle	Boost 15 × 110	Boost 12 × 148
Rotor mount	Centre Lock	Centre Lock
Freehub bodies	—	Shimano Micro Spline
Engagement	—	30 POE — Ratchet EXP OS 30
Spokes	32 × DT Swiss Competition 2.0/1.8/2.0 double-butted black J-bend spokes	32 × DT Swiss Alpine III 2.34/1.85/2.0 triple-butted black spokes
Tape fitted	32 mm tubeless tape	32 mm tubeless tape
Valves	optional, 50 mm tubeless valves	optional, 50 mm tubeless valves
Max spoke tension	1200 N	1200 N
Max system weight	130 kg (rider, bike and gear)	130 kg (rider, bike and gear)
Tyre width	2.1–2.7" recommended (53–69 mm)	2.1–2.7" recommended (53–69 mm)
Intended use	eMTB — ASTM 4	eMTB — ASTM 4
E-bike rating	e-bike-duty hub (DT Hybrid)	e-bike-duty hub (DT Hybrid)
Warranty	DT Swiss parts 24 months from purchase	DT Swiss parts 24 months from purchase
Built by	Tune Cycles, Marrickville — Pro wheel build and tubeless tape included	Tune Cycles, Marrickville — Pro wheel build and tubeless tape included
