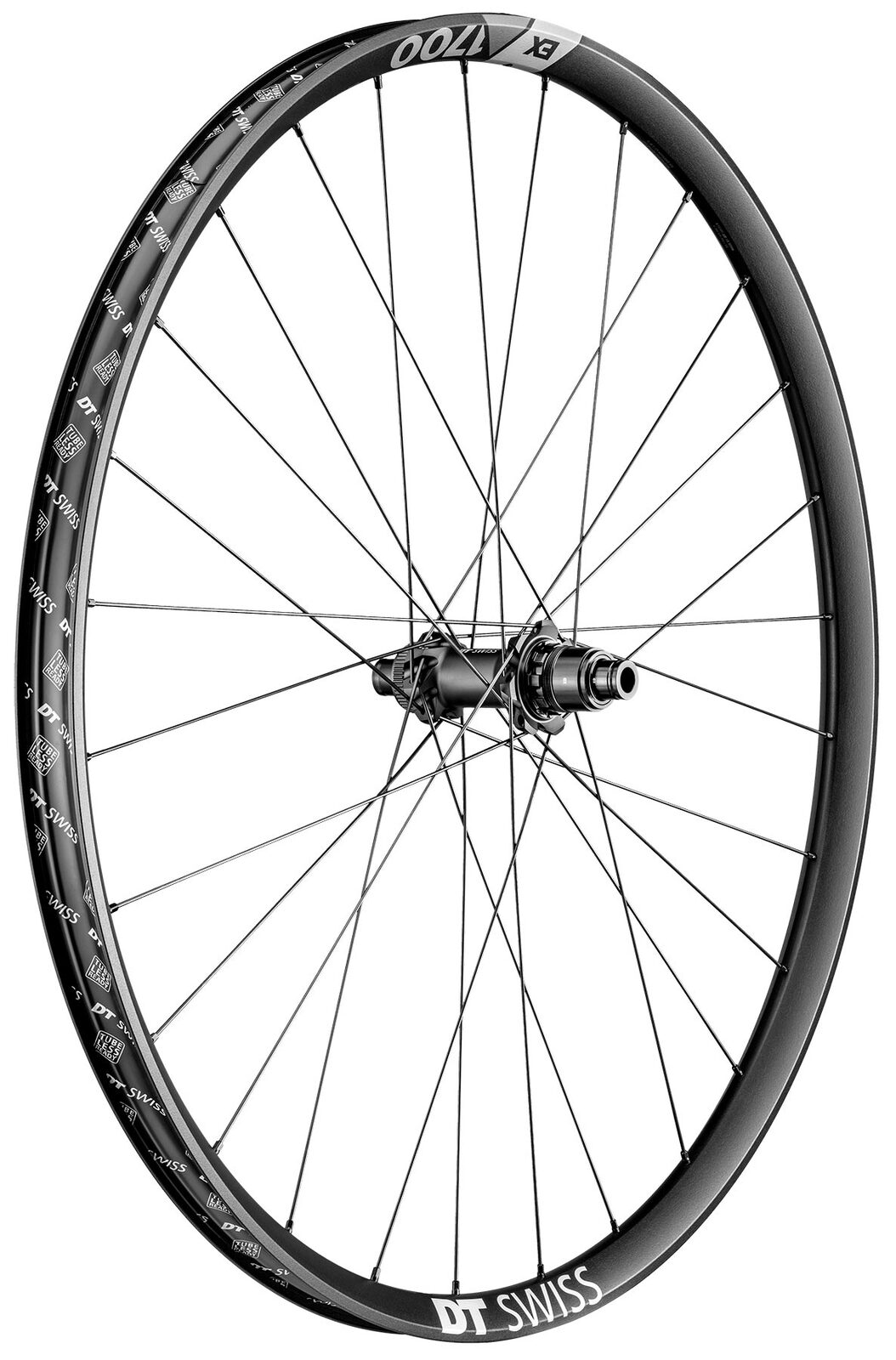

The DT Swiss EX1700 Spline rear wheel delivers the same enduro-spec alloy rim and proven 350 hub as the full EX1700 wheelset — available as a standalone unit for wheel replacement, single-end upgrades or mixed builds.

  • DT Swiss EX alloy rim — 30mm inner, hooked tubeless-ready profile
  • DT Swiss 350 rear hub — 36T Ratchet, 12x148mm Boost
  • Upgradeable to 54T ratchet spring for faster engagement
  • DT Swiss Competition straightpull spokes
  • Tubeless-ready

The EX rim is built for enduro: 30mm inner, welded alloy construction, and a hooked tubeless bead profile that provides a secure seat for 2.3"–2.5" rubber. The 350 rear hub uses Boost 12x148mm axle spacing to maximise spoke bracing angles and wheel stiffness. The 36-tooth Ratchet gives a responsive 10° engagement angle, with a simple spring swap to 54T available as an upgrade path when you want even faster pick-up.

DT Swiss provides a 5-year warranty on rims and hubs. Warranty claims for this product should be directed to Tune Cycles. Return the item to us with proof of purchase and we will manage the warranty process with the brand on your behalf.
  • DT Swiss EX1700 alloy rim — 30mm inner width, welded, hooked tubeless-ready profile engineered for enduro racing
  • DT Swiss 350 Boost rear hub — 36T Ratchet System, 12x148mm Boost thru-axle
  • Ratchet engagement is field-upgradeable to 54T for a faster 6.6° pick-up
  • DT Swiss Competition straightpull spokes for a strong, long-lasting build
  • Pairs with the EX1700 front wheel or can be run with a custom front build
SpecificationValue
Rim materialAluminium, welded
Inner width30mm
ProfileHooked, tubeless-ready
HubDT Swiss 350
Engagement36T Ratchet (10°), upgradeable to 54T (6.6°)
Axle standard12x148mm Boost
SpokesDT Swiss Competition straightpull
Intended useEnduro MTB — rear
SKU WHL-DT-EX1700-RR
Barcode # WHL-DT-EX1700-RR
Brand DT Swiss
Shipping Width 0.660m
Shipping Height 0.130m
Shipping Length 0.660m
Shipping Cubic 0.056628000m3
