DT Rim XR421 XC MTB 28H Rimset 29"
SKU code: APO-DT-XR421-28-29-RIMS

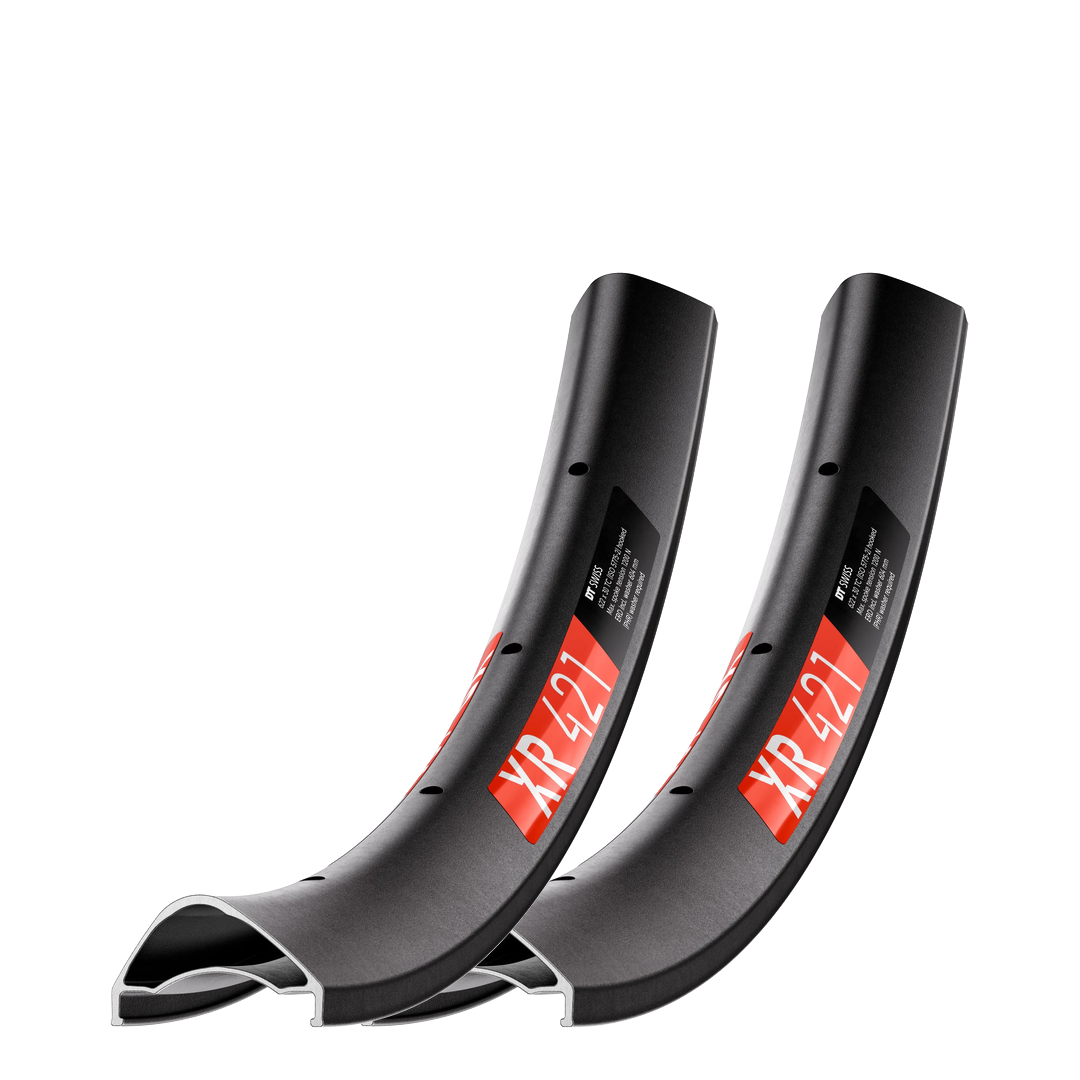

DT Swiss XR 421 rim set — 28H, 29"
Two DT Swiss XR 421 rims packed as one set: the rim pair inside our hand-built cross-country wheel kits, and the same pair on its own for your own build. Both rims drilled 28H.
What is in the box
- Two DT Swiss XR 421 rims — 29" (DT makes this rim in 29" only)
- Each rim ships with DT Pro Lock Squorx alu black nipples + PHR washers + a spare decal set (black / chrome / gold) — nothing else to buy for lacing
The rim
- 30 mm internal width, 35 mm external, 20 mm deep — sized for 2.1–2.7" tyres (DT's recommended range for a 30 mm rim)
- Welded joint, PHR spoke bed (Pro Head Reinforcement washers spread the nipple load)
- ASTM 3 — XC; max system weight (rider, bike and gear) 120 kg
- ERD 604 mm · weight 548 g each (DT's figures)
- Tubeless-ready with 32 mm tape; e-bike approved by DT (max 32 km/h / 250 W)
Warranty
DT Swiss rims are covered for 24 months from purchase against material and manufacturing defects (dtswiss.com/en/support/warranty). Any claim comes back to Tune Cycles — bring the rim to Marrickville or contact us with your order number.
DT Swiss rims are covered for 24 months from purchase against material and manufacturing defects (dtswiss.com/en/support/warranty); riding outside the rim's ASTM category voids it. Any claim comes back to Tune Cycles: bring the rim to Marrickville or contact us with your order number and we handle it with the brand. Wear, crash damage, corrosion and incorrect fitting are not covered.
- DT Swiss XR 421 × 2 — 28H, 29"
- 30 mm internal, welded, PHR spoke bed, ASTM 3 (XC)
- Nipples and PHR washers in the box
- Tubeless-ready — 32 mm tape, 2.1–2.7" tyres
- Max system weight 120 kg; DT e-bike approved
- The rim pair in our hand-built cross-country wheel kits — sold here on its own too
| Specification | Value |
|---|---|
| Rims | 2 × DT Swiss XR 421 |
| Diameter | 29" |
| Spoke holes | 28H |
| Internal / external width | 30 mm / 35 mm |
| Rim depth | 20 mm |
| ERD | 604 mm |
| Weight | 548 g each |
| Joint / spoke bed | welded / PHR |
| ASTM | 3 — XC |
| Max system weight | 120 kg |
| Tyre width | 2.1–2.7" recommended |
| Tape | 32 mm tubeless tape |
| In the box | DT Pro Lock Squorx alu black nipples + PHR washers + a spare decal set (black / chrome / gold) |
| Warranty | DT Swiss 24 months, claims via Tune Cycles |
| SKU | APO-DT-XR421-28-RIMSET |
| Brand | DT Swiss |
