DT Rim EX511 & FR541 DH Lite MTB 32H Rimset 29"
SKU code: APO-DT-DHLITE32-29-RIMS
In Stock

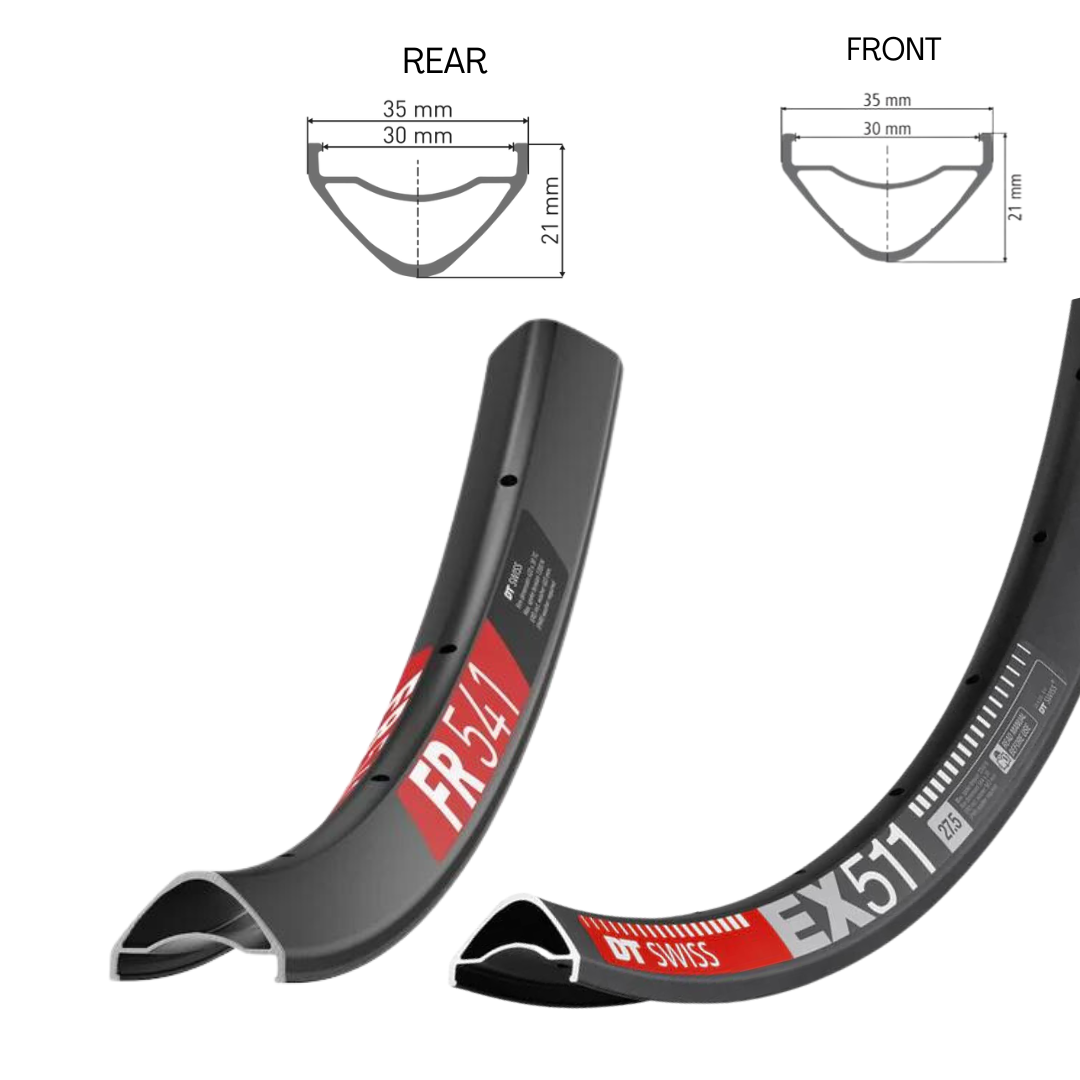

DT Swiss EX 511 (front) / DT Swiss FR 541 (rear) rim set — 32H, 29", 27.5" or Mullet (29" front / 27.5" rear)
A DT Swiss EX 511 front rim and a DT Swiss FR 541 rear rim packed as one set — the lighter enduro rim up front, the freeride-rated rim where the hits land: the rim pair inside our hand-built DH-Lite and enduro wheel kits, and the same pair on its own for your own build. Both rims drilled 32H.
What is in the box
- DT Swiss EX 511 front and DT Swiss FR 541 rear in the diameter you choose — 29", 27.5" or Mullet (29" front / 27.5" rear)
- Each rim ships with DT Pro Lock Squorx alu silver + PHR washer — nothing else to buy for lacing
The rim
- 30 mm internal width, 35 mm external, 21 mm deep — sized for 2.1–2.7" tyres (DT's recommended range for a 30 mm rim)
- Welded joint, PHR spoke bed (Pro Head Reinforcement washers spread the nipple load)
- ASTM 4 — DH Lite / Enduro; max system weight (rider, bike and gear) 130 kg — the lower-rated rim (the DT Swiss EX 511) sets both
- ERD front 563 mm (27.5") / 601 mm (29"); rear 565 mm / 603 mm · weight front 550 g (27.5") / 590 g (29"); rear 570 g / 605 g (DT's figures)
- Tubeless-ready with 32 mm tape; e-bike approved by DT (max 32 km/h / 250 W)
Warranty
DT Swiss rims are covered for 24 months from purchase against material and manufacturing defects (dtswiss.com/en/support/warranty). Any claim comes back to Tune Cycles — bring the rim to Marrickville or contact us with your order number.
DT Swiss rims are covered for 24 months from purchase against material and manufacturing defects (dtswiss.com/en/support/warranty); riding outside the rim's ASTM category voids it. Any claim comes back to Tune Cycles: bring the rim to Marrickville or contact us with your order number and we handle it with the brand. Wear, crash damage, corrosion and incorrect fitting are not covered.
- DT Swiss EX 511 front + DT Swiss FR 541 rear — 32H, 29", 27.5" or Mullet (29" front / 27.5" rear)
- 30 mm internal, welded, PHR spoke bed, ASTM 4 (DH Lite / Enduro)
- Nipples and PHR washers in the box
- Tubeless-ready — 32 mm tape, 2.1–2.7" tyres
- Max system weight 130 kg; DT e-bike approved
- The rim pair in our hand-built DH-Lite and enduro wheel kits — sold here on its own too
| Specification | Value |
|---|---|
| Rims | DT Swiss EX 511 front / DT Swiss FR 541 rear |
| Diameter | 29", 27.5" or Mullet (29" front / 27.5" rear) |
| Spoke holes | 32H |
| Internal / external width | 30 mm / 35 mm |
| Rim depth | 21 mm |
| ERD | front 563 mm (27.5") / 601 mm (29"); rear 565 mm / 603 mm |
| Weight | front 550 g (27.5") / 590 g (29"); rear 570 g / 605 g |
| Joint / spoke bed | welded / PHR |
| ASTM | 4 — DH Lite / Enduro |
| Max system weight | 130 kg |
| Tyre width | 2.1–2.7" recommended |
| Tape | 32 mm tubeless tape |
| In the box | DT Pro Lock Squorx alu silver + PHR washer |
| Warranty | DT Swiss 24 months, claims via Tune Cycles |
| SKU | APO-DT-DHLITE32-RIMSET |
| Brand | DT Swiss |
