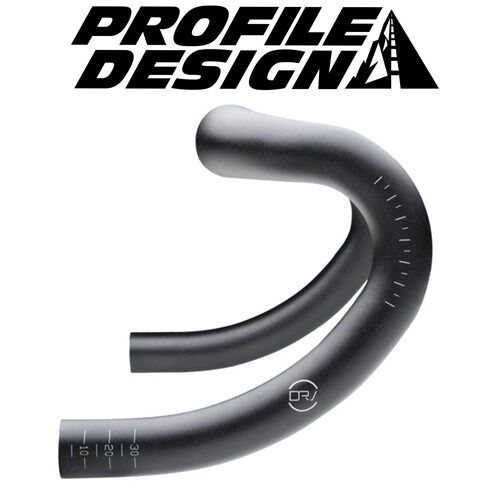

Profile Design DRV/A Aluminium Drop Bar DRiVe 105 42cm
SKU code: BCP-RH105421
The DRV/A is an aluminium drop bar with a round 31.8 mm section across the tops, designed specifically for clip-on aerobars. Its curve is shaped for modern road levers.
Highlights
- DRiVe 105: 122 mm drop, 70 mm reach
- 7° ramp and 4° flare in the drops for a natural wrist angle
- 31.8 mm round tops, 120 mm clamp width, clip-on aerobar compatible
- 6061-T6 aluminium
What DRiVe means
Profile Design's DRiVe (Drop Reach Variant) is measured along a 73° line from the bar bore to where it meets the drop. It marks the spot in the drops where riders instinctively put their hands, and the bars are progressively sized around it: reach and DRiVe grow with the bar width, and the tops and hoods are shaped to complement the DRiVe position.
Profile Design sizes DRiVe from handbreadth: under 80 mm suits a 105 DRiVe, 80–90 mm a 120, and over 90 mm a 135.
Compatibility & fit
31.8 mm clamp for stems and clip-on aerobars across a 120 mm clamp width. External cable routing. Maximum brake lever torque 10 Nm; maximum clamping torque on the bar 6 Nm. Our workshop can fit the bar and set up your position.
Profile Design warrants this product to the original retail purchaser against defects in materials and workmanship for two years from the date of original retail purchase. The warranty does not cover products that have been modified, misused, involved in a crash or impact, or damaged by improper assembly or by failing to follow the installation instructions.
This cover is in addition to your rights under the Australian Consumer Law. Keep your proof of purchase.
For warranty support, return the product to Tune Cycles and we'll manage the claim with Profile Design's Australian distributor.
- 42 cm centre to centre
- DRiVe 105, 122 mm drop, 70 mm reach
- 7° ramp, 4° drop outsweep
- 31.8 mm clamp, 120 mm clamp width
- Clip-on aerobar compatible
- 6061-T6 aluminium
| Width | 42 cm (centre to centre) |
|---|---|
| DRiVe | 105 mm |
| Drop | 122 mm |
| Reach | 70 mm |
| Drop outsweep | 4° |
| Ramp angle | 7° |
| Clamp diameter | 31.8 mm |
| Clamp width | 120 mm |
| Clip-on aerobar compatible | Yes |
| Internal cable routing | No |
| Max brake lever torque | 10 Nm |
| Max clamping torque on bar | 6 Nm |
| Material | 6061-T6 aluminium |
| Weight (brand-listed) | 305 g (42 cm) |
| SKU | BCP-RH105421 |
| Model # | RH105421 |
| Barcode # | 0723661004155 |
| Brand | Profile Design |
| Shipping Weight | 0.3500kg |
| Shipping Width | 0.120m |
| Shipping Height | 0.100m |
| Shipping Length | 0.800m |
