Paint build-up and machining tolerances can leave brake mounts out of square, which shows up as rub and squeal you can't adjust out. Facing cuts the mounts flat and parallel to the rotor.

Highlights

  • Faces IS, post mount and Shimano flat mount brake mounts
  • Includes low-clearance chainstay mounts
  • Telescoping axle adaptors for open and thru-axle dropouts
  • Covers Boost 110, Boost 148 and fat bike axle widths
  • Two facing cutters: IS mounts, and post and flat mounts

A workshop tool

Facing removes frame material. It's a job for a trained mechanic, and it has to be done carefully to avoid taking off too much.

Compatibility & fit

IS, post and Shimano flat mount brake mounts on open or thru-axle frames and forks. Super B doesn't list this set for steel frames and forks. For carbon mounts there's a separate carbon cutter.

Prefer to leave it to us? Our workshop can face your disc brake mounts.

Super B offers a limited lifetime warranty: under normal use, a tool with a defect in material or manufacture will be repaired or replaced. It doesn't cover normal wear, or damage from accident, abuse, neglect, modification or improper use. This cover is in addition to your rights under the Australian Consumer Law. Keep your proof of purchase. For warranty support, return the product to Tune Cycles and we'll manage the claim with Super B's Australian distributor.

  • Faces IS, post and flat mounts
  • Low-clearance chainstay mounts
  • Telescoping axle adaptors
  • Boost 110 / Boost 148 / fat bike axles
  • Two facing cutters included
BrandSuper B

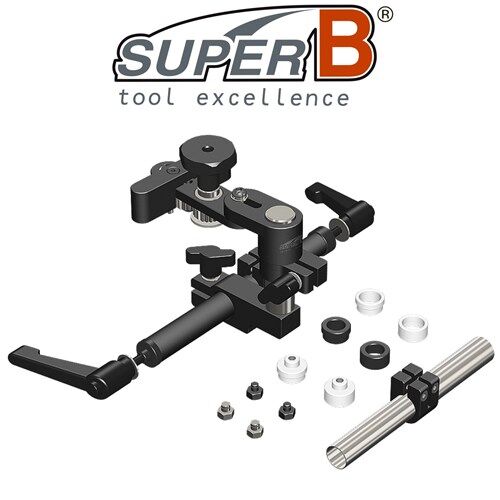

ModelTB-DB10 Disc Brake Mount Facing Set
MountsIS, post mount, Shimano® flat mount
AxlesOpen and thru-axle dropouts, incl. Boost 110, Boost 148, fat bike
Cutters2 (IS mounts; post and flat mounts)
SKU BCP-TBDB10
Model # TBDB10
Barcode # 4710898410350
Brand Super B Tools
Shipping Weight 0.4000kg
Shipping Width 0.200m
Shipping Height 0.080m
Shipping Length 0.300m
