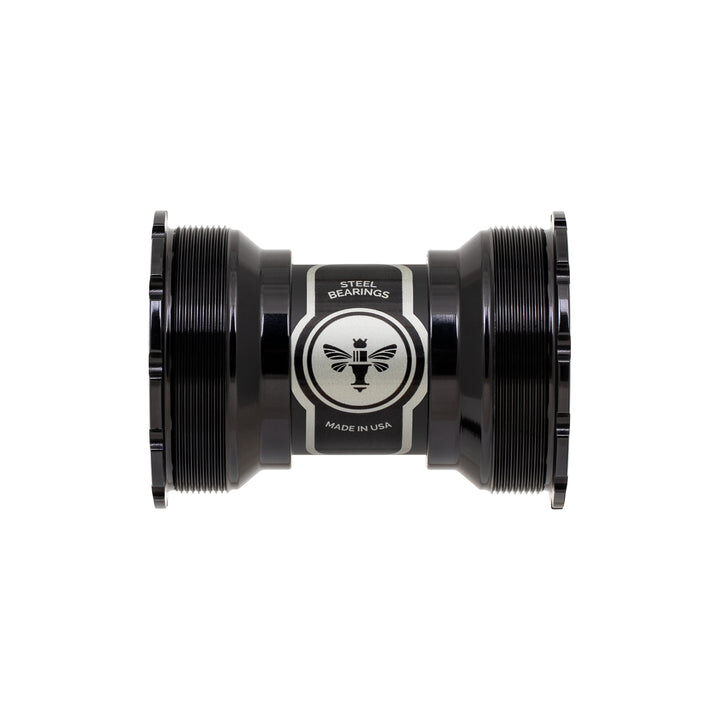

ThreadFit T47 30i is the widest-fitting T47 bottom bracket in the range, covering shells from 68mm up to 92mm with a 30mm spindle.

Highlights

  • Fits 68mm, 73mm, 83mm, 86mm and 92mm T47 shell widths with 30mm spindles
  • Threaded security with PressFit 30 shell stiffness
  • Angular-contact bearings, steel or ceramic, made in-house
  • Uses the Chris King ThreadFit T47i cup tool for installation

Compatibility & fit

Fits 68mm, 73mm, 83mm, 86mm and 92mm T47 shell widths with 30mm-spindle cranks. A Fit Kit matched to your crankset is required and sold separately. Available in the Chris King colours listed below.

Colours & options

ColourNotes
BlackChris King anodised finish, same fit and bearings
SilverChris King anodised finish, same fit and bearings
Matte TurquoiseChris King anodised finish, same fit and bearings
Matte MangoChris King anodised finish, same fit and bearings
MidnightChris King anodised finish, same fit and bearings
Chris King backs this bottom bracket with the King Lifetime Warranty: bearings included, covered for the life of the original purchaser against manufacturing defects, verified on chrisking.com/pages/king-lifetime-warranty. Crash damage, misuse and normal wear are not covered. For warranty support, return the product to Tune Cycles and we'll manage the claim with Chris King's Australian distributor.
  • Fits 68-92mm T47 shells
  • 30mm crank spindle
  • Angular-contact bearings, steel or ceramic
  • Threaded cups, PF30 shell stiffness
  • Fit Kit required, sold separately
BrandChris King
Shell standardT47 threaded, 68/73/83/86/92mm
Spindle30mm
BearingAngular-contact, steel or ceramic
ColoursBlack, Silver, Matte Turquoise, Matte Mango, Midnight
SKU SCV-P-5427
Brand Chris King
