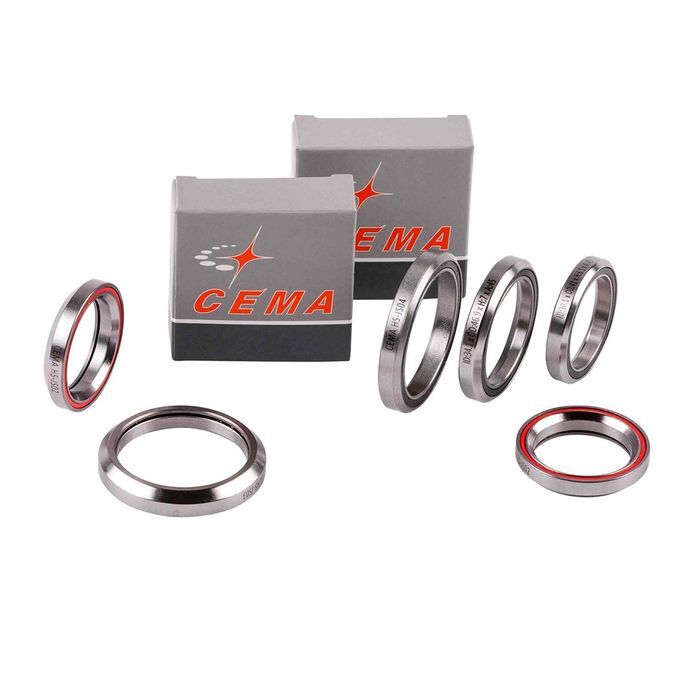

The CEMA SRC-HS-JS05 is a sealed cartridge headset bearing sized 46.9 x 34.1 x 7mm with a 45°/45° contact angle, built for 1-1/4" headset applications. It's a direct cartridge swap for a worn or notchy headset bearing of this exact size — no adjustment, no races to press, just drop it in.
Manufacturing defects are covered under CEMA's warranty terms. Return the bearing to Tune Cycles and we'll manage the claim on your behalf — no need to contact CEMA directly. This is in addition to your rights under the Australian Consumer Law.
  • Dimensions: 46.9mm OD x 34.1mm ID x 7mm height
  • Contact angle: 45°/45°
  • CEMA SRC chrome steel construction
  • Double-sealed design keeps lubricant in and dirt/moisture out
  • Direct cartridge replacement — no machining or pressing of races required
  • Model: SRC-HS-JS05
Outer diameter46.9mm
Inner diameter34.1mm
Height7mm
Contact angle45°/45°
MaterialChrome steel
SeriesCEMA SRC-HS
ModelSRC-HS-JS05
SKU BPW-0874
Model # 0874
Barcode # 4712910906407
Brand CEMA
Shipping Weight 0.0800kg
Shipping Width 0.160m
Shipping Height 0.060m
Shipping Length 0.220m
