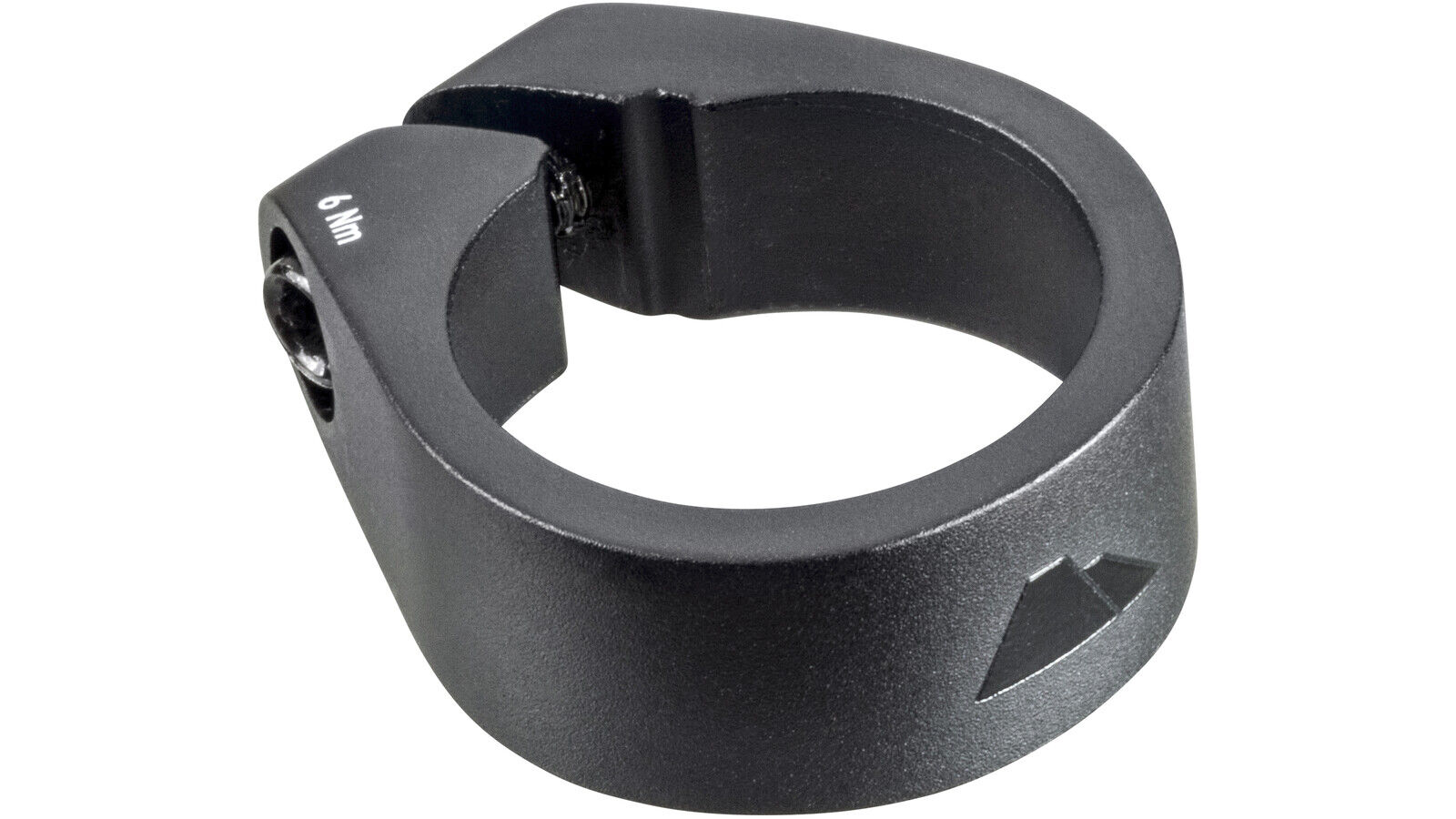

A neat, light seatpost clamp in anodised aluminium with a discreet Canyon logo. It is the genuine replacement for a range of Canyon road, gravel and mountain bikes.

  • Quality finish: high-quality anodised aluminium.
  • Three sizes: 31.2, 31.8 and 34.9 mm clamp diameters.
  • Easy to set: a 4 mm Allen screw, tightened to 6 Nm.
  • Understated look: a discreet Canyon logo.

Fit and compatibility

Canyon lists this clamp for:

  • Endurace: Endurace AL Disc (R138-01, 2027), Endurace AL (R138-01, 2026)
  • Grand Canyon: Grand Canyon AL (M196-01, 2027)
  • Grizl: Grizl AL (R124-01, 2027)
  • Lux Trail: Lux CF (M194-01, 2027)
  • Neuron: Neuron AL (M118-01, 2025 and 2027), Neuron CF (M119-01, 2025)

Canyon doesn't say which diameter each bike takes, so check the size marked on your current clamp and match your frame code and model year before ordering.

Not sure of the size? Bring the bike in and we'll check it.

Canyon warranty. Canyon covers its parts and accessories against defects for 2 years from the day you receive them. For warranty support, return the item to Tune Cycles with your proof of purchase and we'll manage the claim for you. This is in addition to your rights under the Australian Consumer Law.

  • Anodised aluminium
  • 31.2, 31.8 or 34.9 mm
  • 4 mm Allen, 6 Nm
  • Discreet Canyon logo
BrandCanyon
MaterialAnodised aluminium
Clamp diameter31.2, 31.8 or 34.9 mm
Bolt4 mm Allen
Torque6 Nm
In the box1 x Canyon Seat Clamp
Weight152 g
Frame codesM118-01, M119-01, M194-01, M196-01, R124-01, R138-01
SKU CAN-P-9100604
Brand Canyon
Shipping Weight 0.2200kg
Shipping Width 0.100m
Shipping Height 0.050m
Shipping Length 0.120m
