Genuine Canyon GP7043-01 Mounting Kit Main Pivot for the Spectral CF, Torque AL. Pivot and shock-mount hardware holds the suspension linkage together. Bolts, axles and spacers wear and work loose with use, and Canyon's kits are specific to each frame.

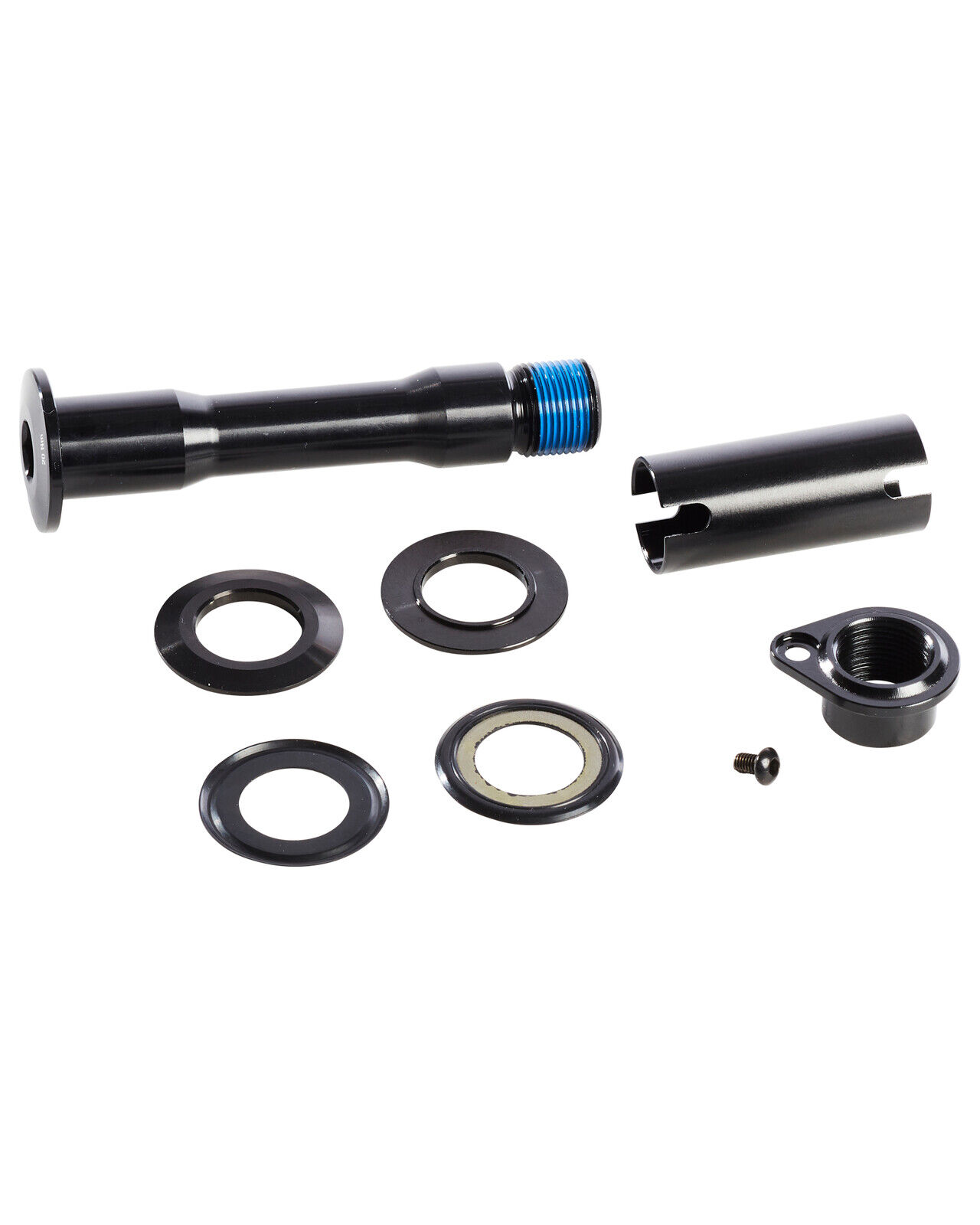

What's in the box

  • 2x Canyon EP1174-01 Main Pivot Washer
  • 2x Sealing 61902 28x15x0.9
  • 1x Canyon EP1177-01 Spacer
  • 1x Canyon EP1185-01 Main Pivot Axle
  • 1x Canyon EP1186-01 Main Pivot Nut
  • 1x Screw M3x8

Fits

Canyon lists this part for these bikes:

ModelFrame codeModel yearsBuilds
Spectral CFM179-012025–2027Spectral CF 8
Torque ALM185-012027Torque AL 8

Before you order

Canyon spares are matched to the frame code and model year, and some come in frame sizes or colours. Check your bike against the table. Not sure? Send us the model, year and frame size, or the frame's serial number, and we'll confirm the part before it's ordered.

Fitting

Tune Cycles is an authorised Canyon service and assembly partner, so we can fit this part for you at the workshop or with our mobile service.

Canyon warranty. Canyon covers its parts and accessories against defects for 2 years from the day you receive them. For warranty support, return the item to Tune Cycles with your proof of purchase and we'll manage the claim for you. This is in addition to your rights under the Australian Consumer Law.

  • Genuine Canyon part GP7043-01
  • Fits the Spectral CF, Torque AL (frame M179-01, M185-01)
  • In the box: 2x Canyon EP1174-01 Main Pivot Washer; 2x Sealing 61902 28x15x0.9; 1x Canyon EP1177-01 Spacer; and more
  • Weight: 39 g
BrandCanyon
Canyon part codeGP7043-01
In the box2x Canyon EP1174-01 Main Pivot Washer; 2x Sealing 61902 28x15x0.9; 1x Canyon EP1177-01 Spacer; 1x Canyon EP1185-01 Main Pivot Axle; 1x Canyon EP1186-01 Main Pivot Nut; 1x Screw M3x8
Weight39 g
Frame codesM179-01, M185-01
SKU CAN-10007492
Brand Canyon
Shipping Weight 0.0800kg
Shipping Width 0.100m
Shipping Height 0.040m
Shipping Length 0.150m
