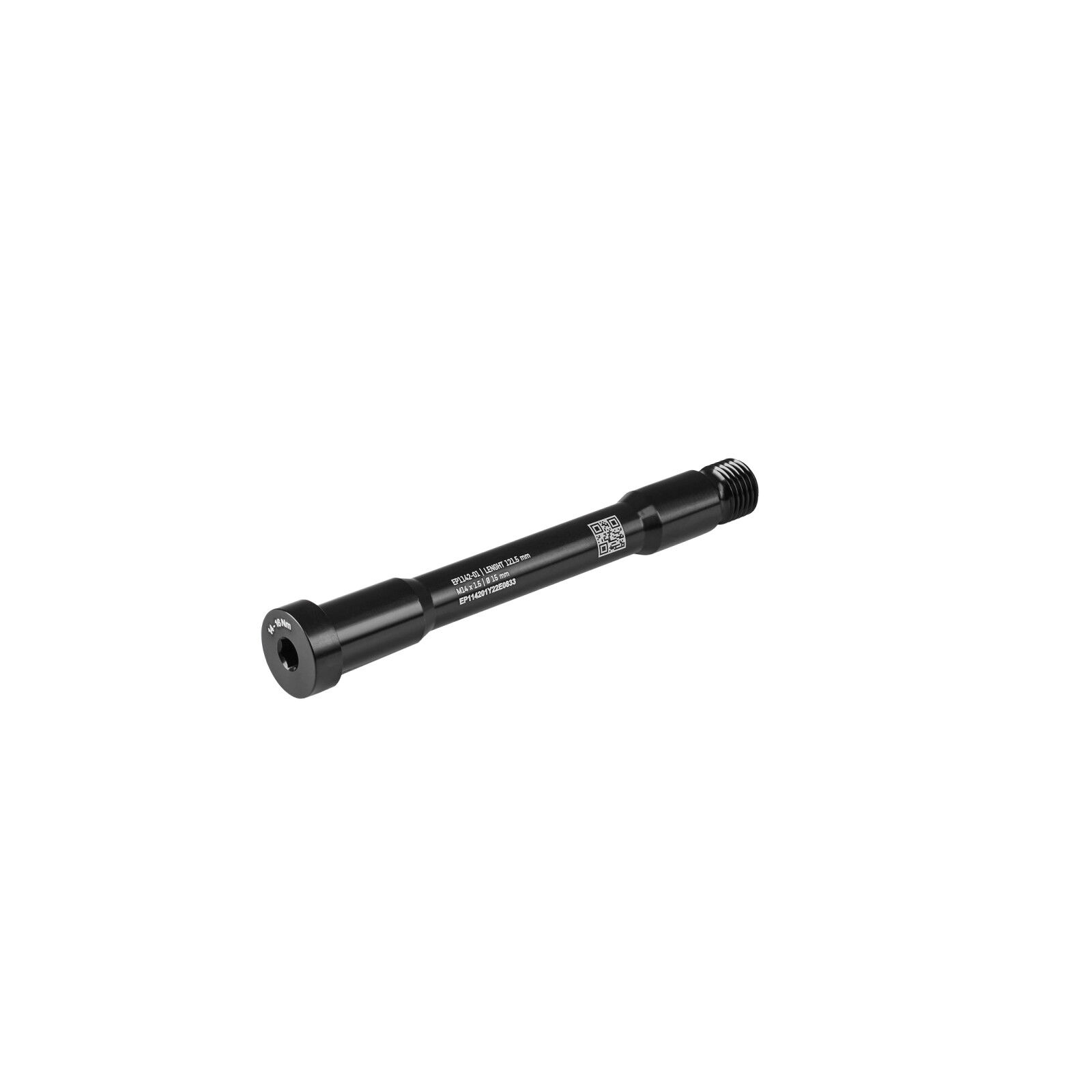

The EP1142-01 is Canyon's 15 x 100 mm front thru axle with a 1.5 mm thread pitch, weighing 51 g.

  • Size: 15 x 100 mm.
  • 1.5 mm thread pitch: the pitch has to match the thread it screws into.
  • Front axle: supplied as one EP1142 front thru axle.
  • Weight: 51 g.

Getting the right axle

Thru axles differ in diameter, length and thread pitch, and a near match won't do. Your frame code or the part number is the reliable check.

Fit and compatibility

Canyon doesn't publish a list of compatible bikes for this part. Match the part number (EP1142-01) to the part on your bike, or send us your bike's model, frame code and year and we'll confirm the fit before you order.

Need it fitted? Tune Cycles is an authorised Canyon service partner.

Canyon warranty. Canyon covers its parts and accessories against defects for 2 years from the day you receive them. For warranty support, return the item to Tune Cycles with your proof of purchase and we'll manage the claim for you. This is in addition to your rights under the Australian Consumer Law.

  • Front thru axle
  • Size: 15 x 100 mm
  • Thread pitch: 1.5 mm
  • Weight: 51 g
BrandCanyon
Canyon part codeEP1142-01
PositionFront
Size15 x 100 mm
Thread pitch1.5 mm
Weight51 g
In the box1 x Canyon EP1142 Front Thru Axle
