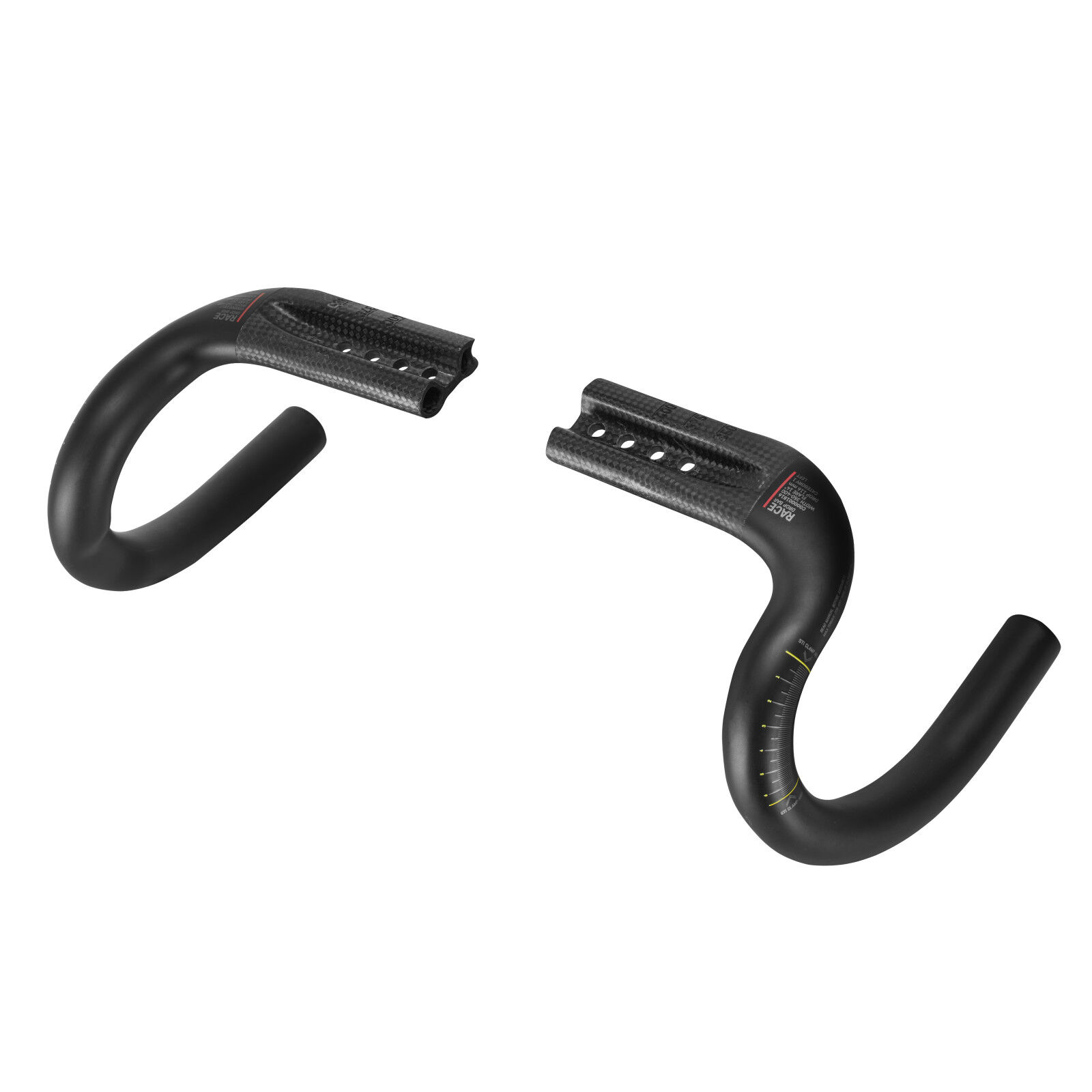

Built for racing, the Race Drops put you longer and lower for better aerodynamics. They connect to the T-bar of Canyon's CP0048 and CP0049 cockpits, narrow your frontal area and give a deeper drop for control when sprinting or descending fast.

• Longer reach: 10 mm more than Canyon's Classic Drops for a stretched, lower position.
• Narrow and adjustable: width adjusts between 350 and 400 mm to cut frontal area.
• Deeper drop: 116 mm for an aggressive position and stability at speed.
• Aero lever position: the shape places the shift and brake levers to trim frontal area.
• Simple swap: the brake lines route past the drops, so they don't need disconnecting or bleeding.
• Integrated finish: connects cleanly to the T-bar for a tidy cockpit.

Race Drops or Compact Drops?

The Race Drops suit riders after a long, low position. If you want more comfort or have smaller hands, the Compact Drops have a shorter reach, a shallower 108 mm drop and a 390-440 mm width range.

Fit and compatibility

For the CP0048 and CP0049 T-bar cockpit system. Canyon lists these bikes:

• Aeroad: CF SLX and CF SLX Disc (R107-01, 2026 and 2027); CFR and CFR Disc (R136-01, 2027); CFR (R108-01, 2026)
• Endurace: CF SLX Disc (R077-02, 2026; R130-01, 2027); CFR (R072-02, 2026; R148-01, 2027)
• Grail: CF SLX (R140-01, 2027)
• Ultimate: CF SL Disc (R101-01, 2026); CF SLX and CF SLX Disc (R100-01, 2026 and 2027); CFR Disc (R102-01, 2026)

Cockpit parts are frame-specific. Check which T-bar your bike has, then match your frame code and model year before ordering.

As an authorised Canyon service partner, Tune Cycles can fit the drops and set the width for you.
