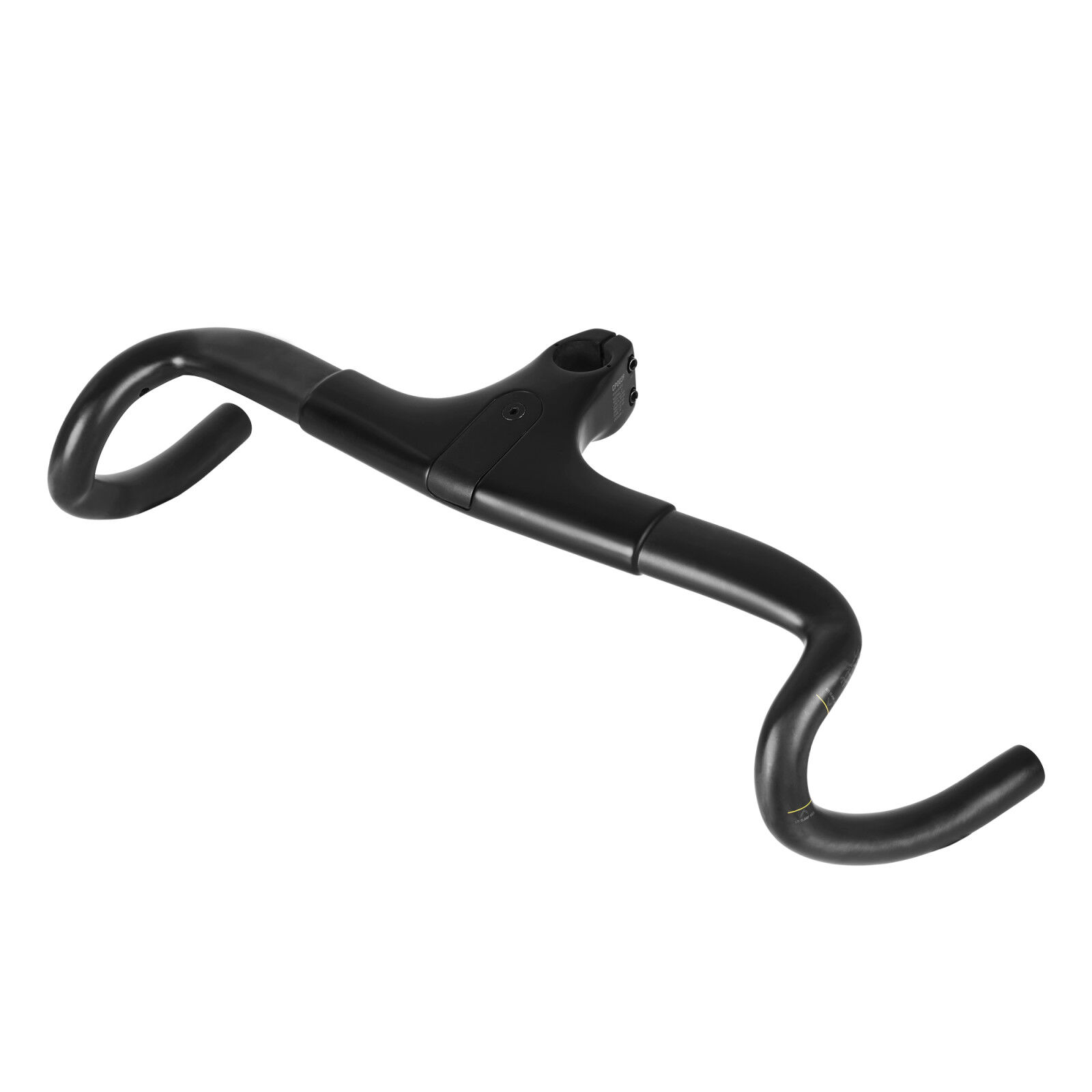

Canyon CP0039 1 1/8" CF Cockpit (Integrated Carbon Bar and Stem) – 60-400
Pick-up or mobile mechanic only. Buy at canyon.com/en-au
SKU code: CAN-10016372
Canyon pitches the CP0039 as the match for the Grail and also lists it for the Grizl: a carbon integrated bar and stem with a gently swept top, flared drops and GEAR GROOVE.
- Control on rough ground: 16° of flare keeps the bike steady on technical sections and tricky descents.
- A narrower hood position: the hoods sit inside the flared drops, so you can tuck in on fast, flat roads.
- Comfort on the tops: a slight backsweep gives your hands a relaxed spot on long climbs.
- GEAR GROOVE: mounts compatible Canyon accessories such as computer mounts and lights; a GEAR GROOVE screw is included.
Shape and sizes
Reach is 69 mm, drop 115 mm and flare 16°. Sizes are stem length-bar width in mm: 60-400, 60-420, 70-420, 70-440 and 80-460.
Swapping cockpits
Canyon says the CP0039, CP0045 and CP0047 are cross-compatible. If you're moving from a CP0045, you'll need the GEAR GROOVE computer mount rather than the standard 2-bolt computer mount.
Fit and compatibility
An integrated cockpit is frame-specific. Canyon lists the CP0039 for:
- Grail: CF SL 2026 (R119-01); CF SLX 2026 (R120-01); CF SLX 2027 (R139-01); CFR 2026 (R121-01)
- Grizl: AL 2027 (R124-01); CF 2026 and 2027 (R126-01)
Match your frame code and model year before ordering. The steerer clamp is 1 1/8". Unless you're changing your fit, match your current size.
Tune Cycles is an authorised Canyon service partner and can fit and set up the new cockpit for you.
Canyon warranty. Canyon covers its parts and accessories against defects for 2 years from the day you receive them. For warranty support, return the item to Tune Cycles with your proof of purchase and we'll manage the claim for you. This is in addition to your rights under the Australian Consumer Law.
- Carbon integrated bar and stem
- Flare 16°, drop 115 mm, reach 69 mm
- Steerer clamp: 1 1/8"
- GEAR GROOVE accessory interface, screw included
- Sizes: 60-400 to 80-460 (stem length-bar width, mm)
| Brand | Canyon |
|---|---|
| Canyon part code | CP0039 |
| Material | Carbon |
| Steerer clamp | 1 1/8" |
| Reach | 69 mm |
| Drop | 115 mm |
| Flare | 16° |
| Sizes (stem length-bar width) | 60-400, 60-420, 70-420, 70-440, 80-460 mm |
| Canyon category | 1 |
| Weight | 500 g (size not specified) |
| Also included | 1 x GEAR GROOVE screw |
| Frame codes | R119-01, R120-01, R121-01, R124-01, R126-01, R139-01 |
| SKU | CAN-P-9102162 |
| Brand | Canyon |
| Shipping Weight | 0.8000kg |
| Shipping Width | 0.450m |
| Shipping Height | 0.150m |
| Shipping Length | 0.800m |
