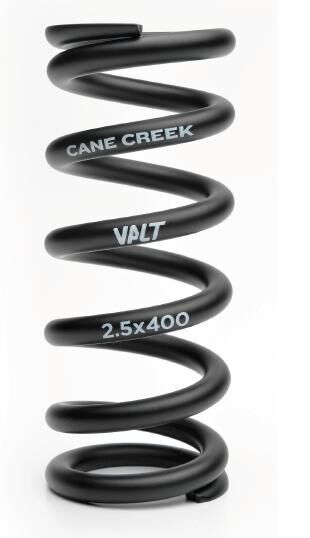

Cane Creek's VALT coil spring swaps into compatible rear shocks for a lighter, tunable alternative to a standard steel coil, so you can match spring rate to rider weight without the usual weight penalty.

Highlights

  • High-performance steel coil, lighter than a standard steel spring at the same rate
  • Large inner diameter suits Cane Creek coil shocks and most other coil shocks on the market
  • Linear and progressive rate options across the range
  • Spring rates in 50lb increments from 300lb to 650lb

Choosing a spring rate

Spring rate is set by rider weight (including gear) and the shock's leverage ratio. Cane Creek publishes a spring rate guide, and the Tune workshop can help you land on the right weight – too soft and the shock sits too deep in travel, too firm and it feels harsh without using full travel.

Options

Weight (spring rate)300lb, 350lb, 400lb, 450lb, 500lb, 550lb, 600lb, 650lb
Stroke2.00in, 2.25in, 2.50in, 3.00in, 3.50in, 45mm – confirm against your shock's stroke before ordering

Compatibility & fit

Stroke length must match your shock exactly – a spring built for the wrong stroke won't seat correctly and can bind or coil-bind under compression. Check your shock's stroke length before ordering; fit is as published by Cane Creek only.

Cane Creek backs the VALT spring under its general 1-year warranty from original purchase against manufacturing defects; everyday wear and use with the wrong stroke length aren't covered. For warranty support, return the product to Tune Cycles and we'll manage the claim with Cane Creek's Australian distributor. This is in addition to your rights under the Australian Consumer Law – keep your proof of purchase.
  • High-performance steel coil, lighter than a standard steel spring at the same rate
  • Large inner diameter suits Cane Creek coil shocks and most other coil shocks on the market
  • Linear and progressive rate options across the range
  • Spring rates in 50lb increments from 300lb to 650lb, stroke lengths from 2.00in to 3.50in plus 45mm
BrandCane Creek
ProductVALT coil spring
MaterialHigh-performance spring steel
Weight (spring rate) options300lb to 650lb
Stroke options2.00in, 2.25in, 2.50in, 3.00in, 3.50in, 45mm
SKU DTW-CSG-SHSPGV-PAR
Brand Cane Creek
Shipping Weight 0.4000kg
