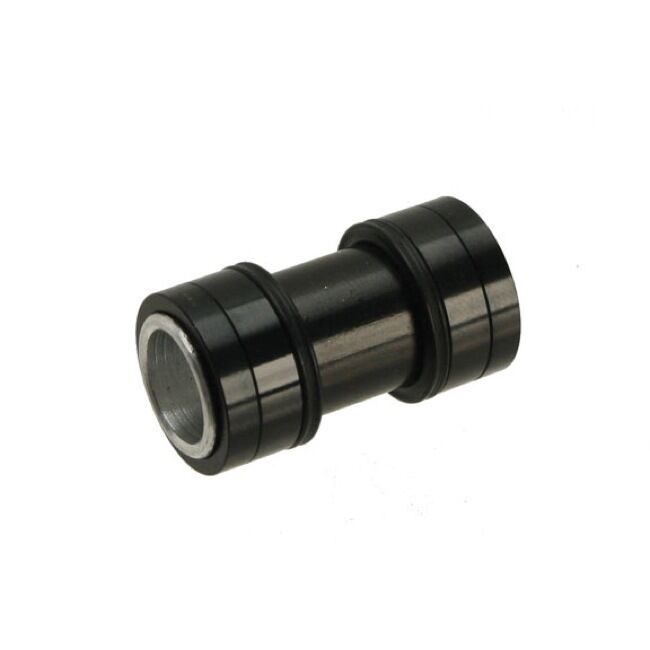

Replacement mounting hardware for a Cane Creek rear shock's eyelet or trunnion — the bushing and bolt set that goes between the shock and the frame, sold separately from the shock itself. Each kit is one width to suit one frame mount; measure your frame's mount before ordering.

Compatibility & fit

10mm bolt diameter, in frame mount widths of 14.9mm, 22.1mm or 40.0mm. Fit is frame- and shock-specific — match the width exactly to your frame's shock mount, not to the shock's listed eyelet width alone, since the same shock can ship for different frame widths. The Tune workshop can measure your frame and fit the correct kit.

Cane Creek covers this hardware against defects in materials and workmanship under its standard component warranty. For warranty support, return the product to Tune Cycles and we'll manage the claim with Cane Creek's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
  • 10mm mounting bolt
  • Frame mount widths: 14.9mm, 22.1mm or 40.0mm
  • Sold separately from the shock
Bolt mount diameter10mm
Frame mount width (by option)14.9mm, 22.1mm or 40.0mm
SKU DTW-CSG-SHHW10-PAR
Brand Cane Creek
Shipping Weight 0.0300kg
