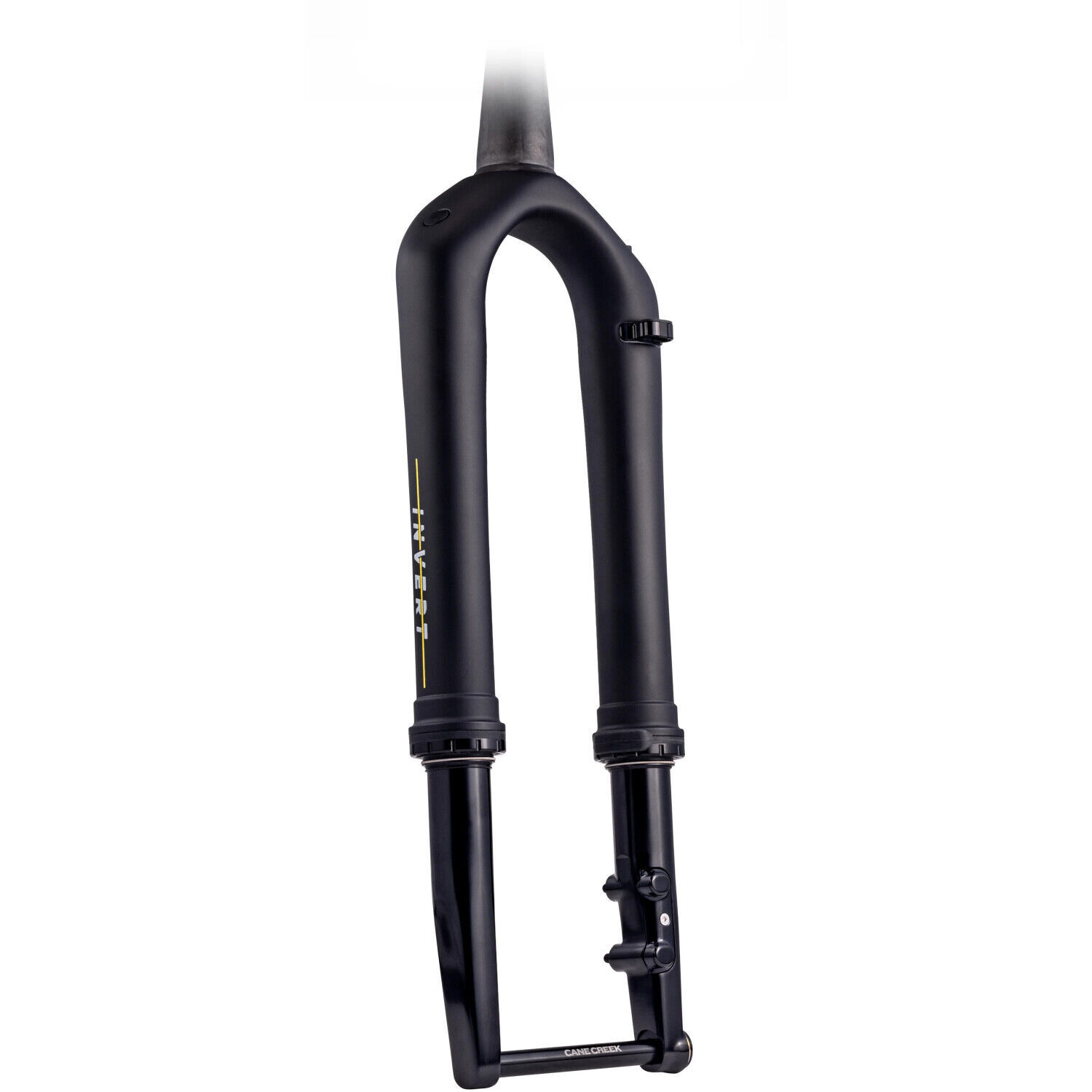

Invert CS is the fuller-featured version of Cane Creek's gravel suspension fork, adding a Climb Switch lever that firms the platform for climbing out of the saddle.

Highlights

  • Climb Switch: single-click lever dramatically reduces fork movement for climbing
  • Inverted-leg design: 30mm machined stanchions in one-piece forged lowers, hidden brake bolts and hidden thru-axle
  • Carbon fibre crown and steerer bonded to aluminium upper tubes
  • 30mm or 40mm travel
  • 700 x 50mm max tyre clearance
  • 1113g claimed weight, either travel

Fit and mounting

Flat mount brake, drilled for a 160mm rotor (180mm with Cane Creek's BBG0800 adapter). 12x100mm thru-axle, included. Tapered 1-1/8in to 1.5in steerer (28.6mm to 40mm).

Compatibility & fit

Built for gravel and adventure bikes with a flat-mount front brake and a tapered steerer; check head tube and steerer compatibility before ordering. Cane Creek also sells the lighter Invert SL without Climb Switch, in the same two travel lengths.

Options

TravelWhat differs
30mm425mm axle-to-crown
40mm435mm axle-to-crown
Cane Creek's Invert fork carries a two-year warranty against defects in materials and workmanship. Normal wear and tear, crash damage and lack of routine service aren't included. For warranty support, return the product to Tune Cycles and we'll manage the claim with Cane Creek's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
Climb Switch firms the platform for climbing, Inverted-leg design, hidden thru-axle, Carbon fibre crown and steerer, aluminium uppers, 30mm or 40mm travel, 700x50mm max tyre clearance, 1113g claimed weight
BrandCane Creek
ModelInvert CS
Travelsee Options table
Brake mountFlat mount, 160mm (180mm with adapter)
Max tyre size700x50mm
Thru-axle12x100mm, included
Steerer1-1/8in to 1.5in tapered (28.6-40mm)
Weight1113g claimed
Warranty2 years
SKU DTW-CSG-FKBBG000-PAR2
Brand Cane Creek
