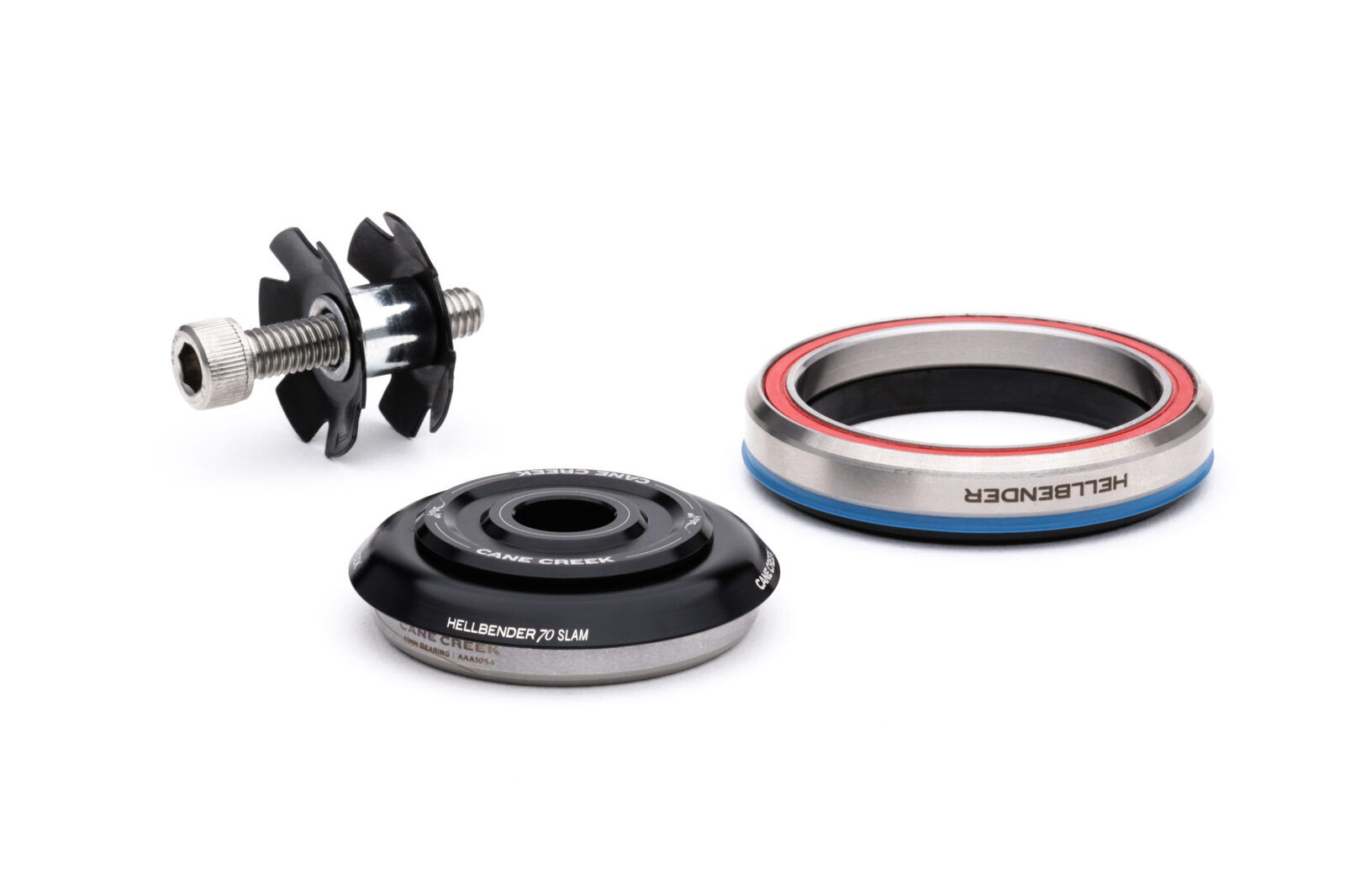

Cane Creek's Hellbender 70 Slam swaps the standard top cover for an ultra-low-stack version, so a rider can slam the stem right down onto the frame or run a fork with a shorter-than-usual steerer, without giving up the Hellbender 70's sealed stainless bearings.

Highlights

• Ultra-low-stack top cover: 4.6mm, versus 9mm on a standard Integrated (IS) Hellbender 70 top
• S.H.I.S. IS42/28.6 top, IS52/40 tapered bottom
• Sealed stainless-steel Hellbender bearings top and bottom
• 6061-T6 aluminium cups, bright-dip black anodised finish
• Sealed crown race included

What S.H.I.S. means

S.H.I.S. (Standardized Headset Identification System) is the industry code that states a headset's fit in one line: the letters give the cup type (ZS zero-stack, EC external cup, IS integrated), the first number is the head tube bore it presses into in mm, and the number after the slash is the steerer or crown race diameter the bearing takes. This headset is IS42/28.6 on top and IS52/40 on the bottom.

Compatibility & fit

Fits a 42mm integrated top head tube bore and a 52mm integrated bottom bore, tapered 1-1/8in to 1.5in steerer. The low-stack top cover is the point of this headset – it suits a rider who wants the stem as low as possible or whose fork steerer has already been cut short. Check your frame's own S.H.I.S. marking before ordering, or ask Tune's workshop to measure it and press the headset as part of a fork or frame build.
