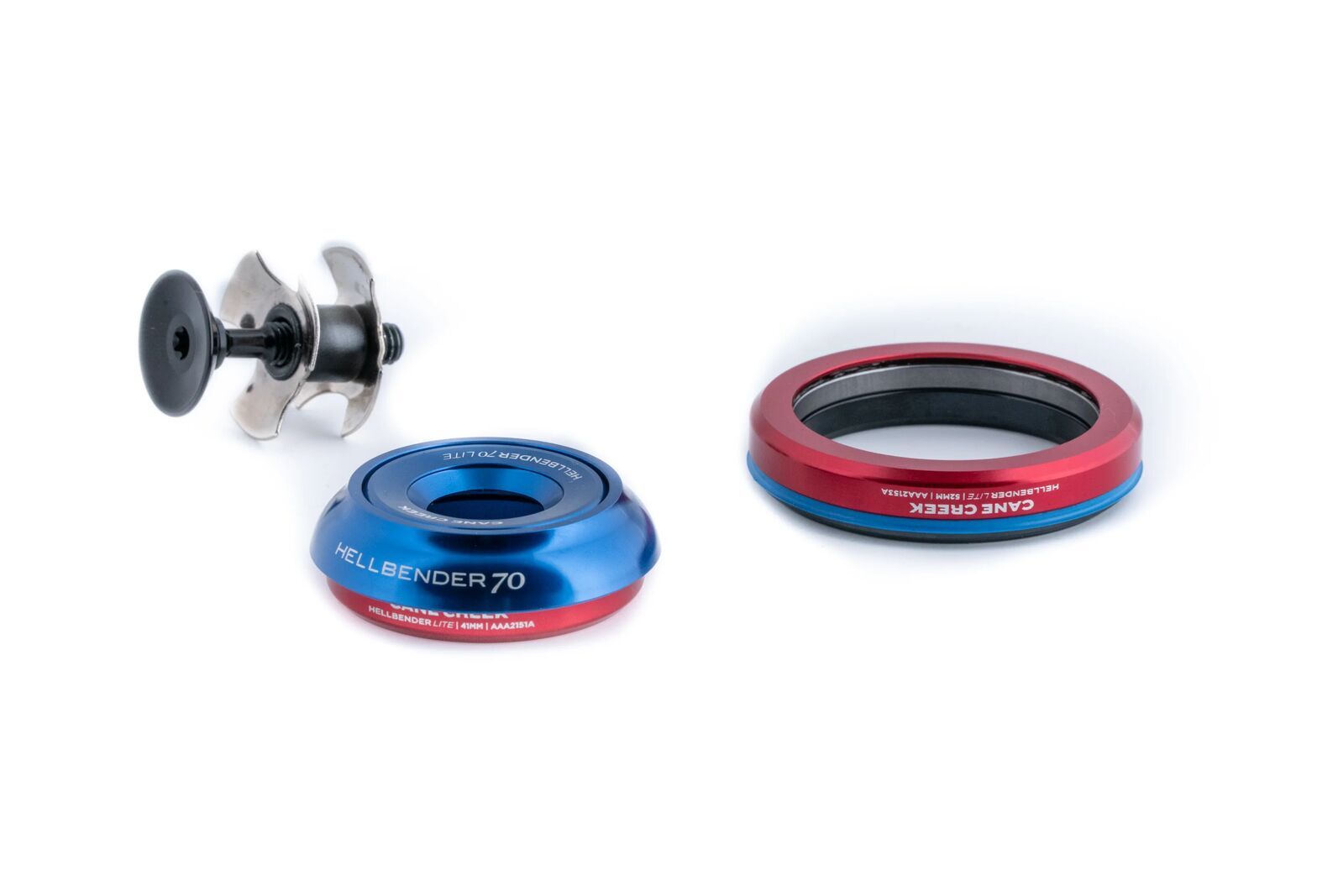

The Hellbender 70 Lite is Cane Creek's weight-saving version of its workshop headset, using hybrid aluminium/steel bearings and a lighter preload assembly without giving up the sealed, serviceable design of the standard Hellbender 70.

Highlights

• Hybrid aluminium/steel Hellbender Lite bearings, around 30% lighter than a standard cartridge bearing
• S.H.I.S. IS42/28.6 upper, IS52/40 lower
• Tapered steerer fit (1-1/8in to 1.5in)
• Alloy dual-seal crown race
• Six colours, all the same fit and bearing spec
• Backed by Cane Creek's Hellbender 70 headset warranty

What S.H.I.S. means: S.H.I.S. (Standard Headset Internal Sizing) is Cane Creek's own code for headset bearing fit. The number after the letters is the bearing's outside diameter in millimetres; the number after the slash is what sits inside it — the steerer tube on an upper cup, or the steerer/crown race on a lower cup. Match your frame's own S.H.I.S. code exactly; a close but different size will not seat.

Compatibility & fit

Upper cup: IS42/28.6, an integrated bearing with a 28.6mm (1-1/8in) stem clamp. Lower cup: IS52/40, an integrated bearing sized for a tapered steerer (1-1/8in at the stem, 1.5in at the crown). Confirm your frame takes this exact S.H.I.S. combination before ordering. The Tune Cycles workshop can confirm your frame's S.H.I.S. and press the headset.
