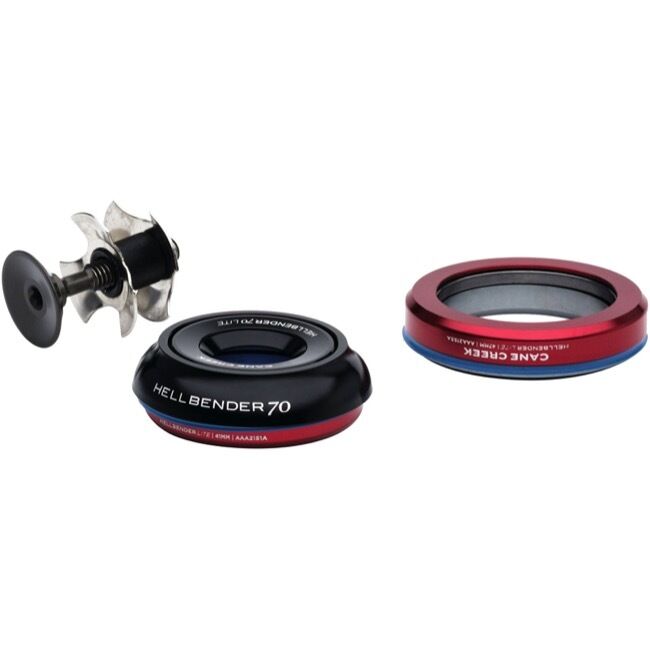

The Hellbender 70 Lite is Cane Creek's weight-saving version of its workshop headset, using hybrid aluminium/steel bearings and a lighter preload assembly without giving up the sealed, serviceable design of the standard Hellbender 70.

Highlights

• Hybrid aluminium/steel Hellbender Lite bearings, around 30% lighter than a standard cartridge bearing
• S.H.I.S. IS42/28.6 upper, IS47/33 lower
• Both cups sized for a 1-1/8in steerer (non-tapered)
• Alloy dual-seal crown race
• Backed by Cane Creek's Hellbender 70 headset warranty

What S.H.I.S. means: S.H.I.S. (Standard Headset Internal Sizing) is Cane Creek's own code for headset bearing fit. The number after the letters is the bearing's outside diameter in millimetres; the number after the slash is what sits inside it — the steerer tube on an upper cup, or the steerer/crown race on a lower cup. Match your frame's own S.H.I.S. code exactly; a close but different size will not seat.

Compatibility & fit

Upper cup: IS42/28.6, a 42mm integrated bearing with a 28.6mm (1-1/8in) stem clamp — not interchangeable with IS41 despite the close size. Lower cup: IS47/33, a 47mm integrated bearing over a 33mm bore — a straight (non-tapered) 1-1/8in steerer the full length of the fork. Confirm your frame takes this exact S.H.I.S. combination before ordering. The Tune Cycles workshop can confirm your frame's S.H.I.S. and press the headset.
