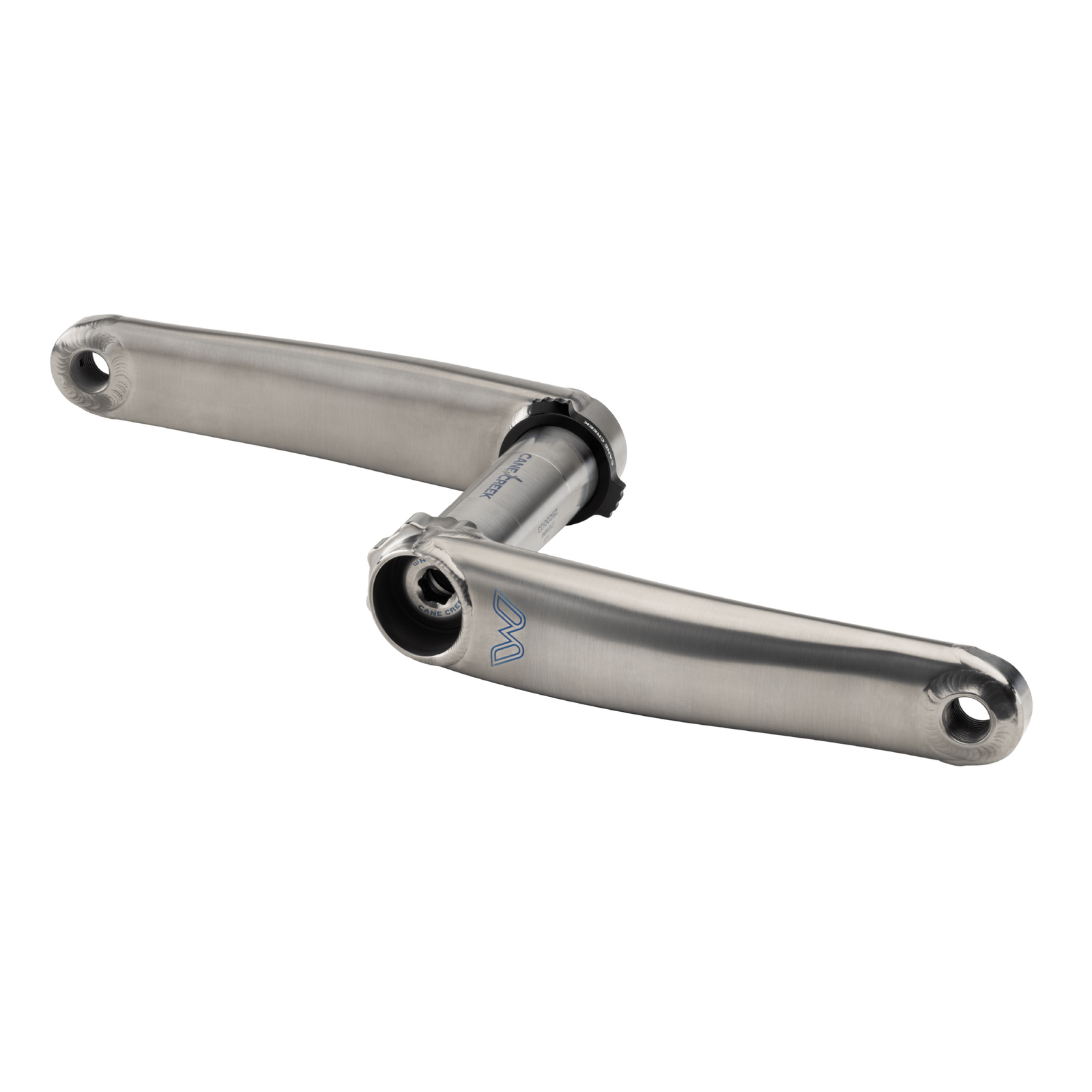

Cane Creek's eeWings Mountain crankset pairs carbon-light titanium arms with an 8-bolt direct-mount interface, built to outlast carbon on trail, enduro and DH bikes without the weight penalty.

Highlights

  • Butted 3/2.5 titanium tubular arms with a CNC 6/4 titanium spindle and Hirth joint
  • 8-bolt direct-mount interface – compatible with SRAM Transmission chainrings and SRAM's direct-mount power meters
  • 30mm spindle; CNC aluminium preloader sets bottom bracket bearing preload precisely
  • Stainless steel 8mm crank fixing bolt
  • Lifetime limited warranty against defects in materials and workmanship

Titanium construction

Each arm is butted 3/2.5 titanium, joined to a CNC-machined 6/4 titanium spindle with a Hirth joint for direct power transfer. The brushed titanium finish can be polished out with a basic Scotchbrite pad if it picks up scratches.

Chainring and power meter compatibility

The 8-bolt direct-mount interface takes SRAM Transmission chainrings and SRAM's direct-mount power meters. Supplied with the crank fixing bolt and chainring bolts; chainring, spider and bottom bracket are sold separately.

Compatibility & fit

30mm spindle, built for Mountain geometry (176mm Q-factor). Fits 73mm and 92mm threaded bottom bracket shells, plus 73mm, 89.5mm and 92mm press-fit shells – confirm with Tune's workshop which bottom bracket your frame needs.

Options

LengthWhat differs
160mmShortest Mountain length
165mmMid-length Mountain arm
170mmLongest Mountain arm
Cane Creek backs eeWings cranks with a lifetime limited warranty against defects in materials and workmanship. For warranty support, return the product to Tune Cycles and we'll manage the claim with Cane Creek's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
  • Butted 3/2.5 titanium arms, CNC 6/4 titanium spindle, Hirth joint
  • 8-bolt direct mount – SRAM Transmission chainring and power meter compatible
  • 30mm spindle; CNC aluminium preloader
  • Stainless steel 8mm crank fixing bolt
  • Lifetime limited warranty
BrandCane Creek
RangeeeWings Mountain
MaterialTitanium (3/2.5 arms, 6/4 spindle)
Spindle30mm
Chainring interface8-bolt direct mount
Q-factor176mm
Bottom bracket fit73mm / 92mm threaded; 73mm / 89.5mm / 92mm press-fit
WarrantyLifetime limited
Length (this option)160mm, 165mm or 170mm
