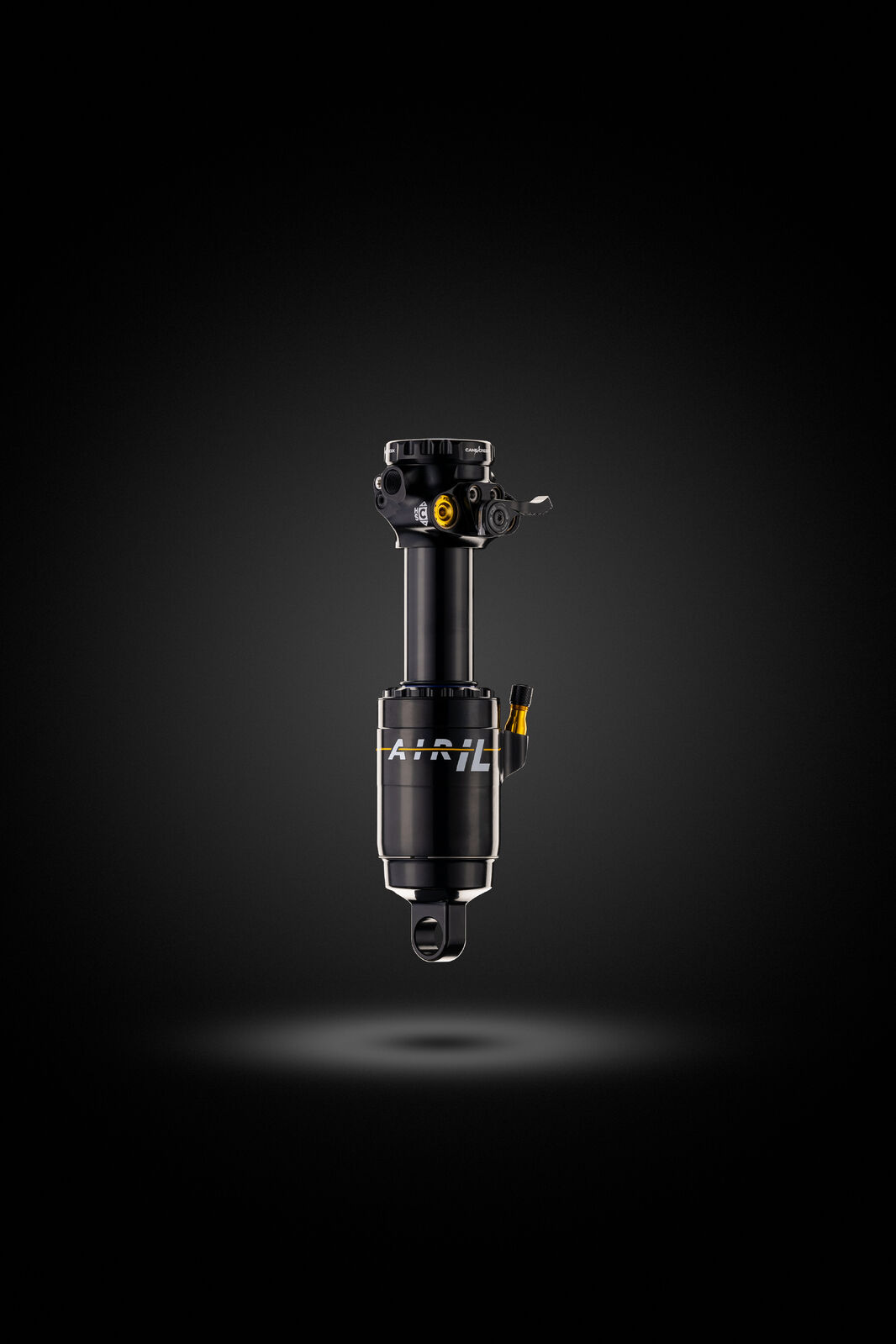

Cane Creek DB Air IL G2 Rear Shock – 40mm, 165mm
SKU code: DTW-CSG-BAD2612
The second-generation Air IL packs Cane Creek's full 4-way DB Twin Tube damping into a narrower, lighter shock aimed at XC, trail and enduro bikes. A slimmer air spring and valve body improve frame clearance over the first generation, and peak air pressure rises to 350psi.
Highlights
- DB Twin Tube damping: independent high- and low-speed compression and rebound
- Climb Switch with an integrated tool, built into the lever
- Slimmer air spring and 50.5mm valve body for tight frames
- Air spring rated to 350psi maximum
- Hand-assembled and dyno-tested in Fletcher, NC, weight approximately 385g (varies by size)
- Trunnion or standard-eyelet mount, depending on length
DB Twin Tube damping
Oil circulates continuously through externally adjustable valving instead of the main piston, giving independent high- and low-speed compression and rebound control without internal valving changes.
Climb Switch
Engaging Climb Switch changes the low-speed damping through internal climbing circuits tuned for off-road climbing, adjusting both compression and rebound rather than just locking out compression.
Compatibility & fit
The Air IL G2 is sold as the damper only, without mounting hardware. 165mm and 185mm eye-to-eye lengths use a trunnion mount; 190mm and 210mm use a standard eyelet. Match eye-to-eye length, stroke and mount type exactly to your frame's suspension design — Cane Creek's shock range is sized for 100-140mm of rear-wheel travel on XC, trail and enduro bikes. The Tune workshop can fit and set up the shock.
Options
| Eye-to-eye | Stroke | Mount |
|---|---|---|
| 165mm | 40mm, 42.5mm or 45mm | Trunnion |
| 185mm | 50mm, 52.5mm or 55mm | Trunnion |
| 190mm | 40mm, 42.5mm or 45mm | Standard eyelet |
| 210mm | 50mm, 52.5mm or 55mm | Standard eyelet |
- DB Twin Tube 4-way independent damping
- Climb Switch with integrated tool
- Slimmer valve body and air spring (350psi max)
- Hand-assembled in Fletcher, NC, approx. 385g
- Trunnion or standard-eyelet mount by length
- Sold without mounting hardware
| Damping | DB Twin Tube, independent HSC/LSC/HSR/LSR, Climb Switch |
|---|---|
| Valve body / air spring diameter | 50.5mm valve body, 51mm air spring |
| Max air pressure | 350psi |
| Weight | Approx. 385g (varies by size) |
| Hardware | Sold separately, to suit frame eyelet width |
| Manufacturing | Hand-assembled and dyno-tested, Fletcher, NC |
| Eye-to-eye / stroke / mount (by option) | 165mm trunnion (40/42.5/45mm stroke); 185mm trunnion (50/52.5/55mm); 190mm standard eyelet (40/42.5/45mm); 210mm standard eyelet (50/52.5/55mm) |
| SKU | DTW-CSG-SHDBAILG2-PAR |
| Brand | Cane Creek |
| Shipping Weight | 1.5000kg |
