Cane Creek's 50-Series complete headset, specified for Canyon frames with a 52mm head tube top and bottom and a tapered steerer.

Highlights

  • IS52/28.6 top | IS52/40 bottom for a tapered steerer
  • Specified for Canyon frames
  • ZN40 sealed cartridge bearings, zinc-coated for corrosion resistance
  • Forged steel crown race, co-molded lip seal

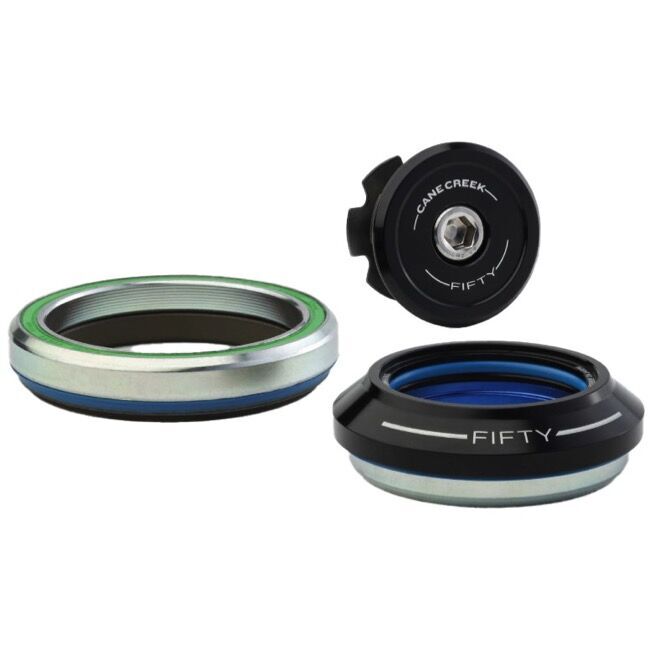

  • Complete assembly: top cap, preload bolt, top cover, compression ring, bearings, crown race and cups
  • Interlok spacer compatible

S.H.I.S. — what the code means

S.H.I.S. (Standard Headset Identification System) states the head tube and steerer diameters a headset needs, written as upper | lower. This headset is IS52/28.6 | IS52/40: Integrated top and bottom, a 52mm head tube throughout, with a 28.6mm (1-1/8in) steerer at the top bearing and a 40mm (1.5in) tapered steerer at the bottom. Matching the code exactly is what makes a headset fit.

Compatibility & fit

Dirt Works lists this as the Canyon-specific build of the IS52/28.6 | IS52/40 assembly; we haven't independently confirmed which Canyon models it covers, so check against your specific frame with Cane Creek or the Tune workshop before ordering.

Cane Creek backs the 50-Series headset with a 1-year warranty against defects in materials and workmanship. For warranty support, return the product to Tune Cycles and we'll manage the claim with Cane Creek's Australian distributor. This is in addition to your rights under the Australian Consumer Law — keep your proof of purchase.
  • IS52/28.6 | IS52/40 S.H.I.S. — tapered steerer
  • Specified for Canyon frames
  • ZN40 sealed cartridge bearings, zinc-coated
  • Forged steel crown race
  • Complete assembly incl. top cap and compression ring
  • Interlok spacer compatible
BrandCane Creek
Series50-Series
S.H.I.S.IS52/28.6 | IS52/40
Frame fitCanyon
SteererTapered (1-1/8in to 1.5in)
Top stack height9mm
Bottom stack height1mm
Bearing typeZN40 sealed cartridge, zinc-coated
Crown raceForged steel
Cup material6061-T6 aluminium
Part numberBAA2541
ColourBlack
SKU DTW-CKG-BAA2541
Barcode # 840226075303
Brand Cane Creek
Shipping Weight 0.2000kg
