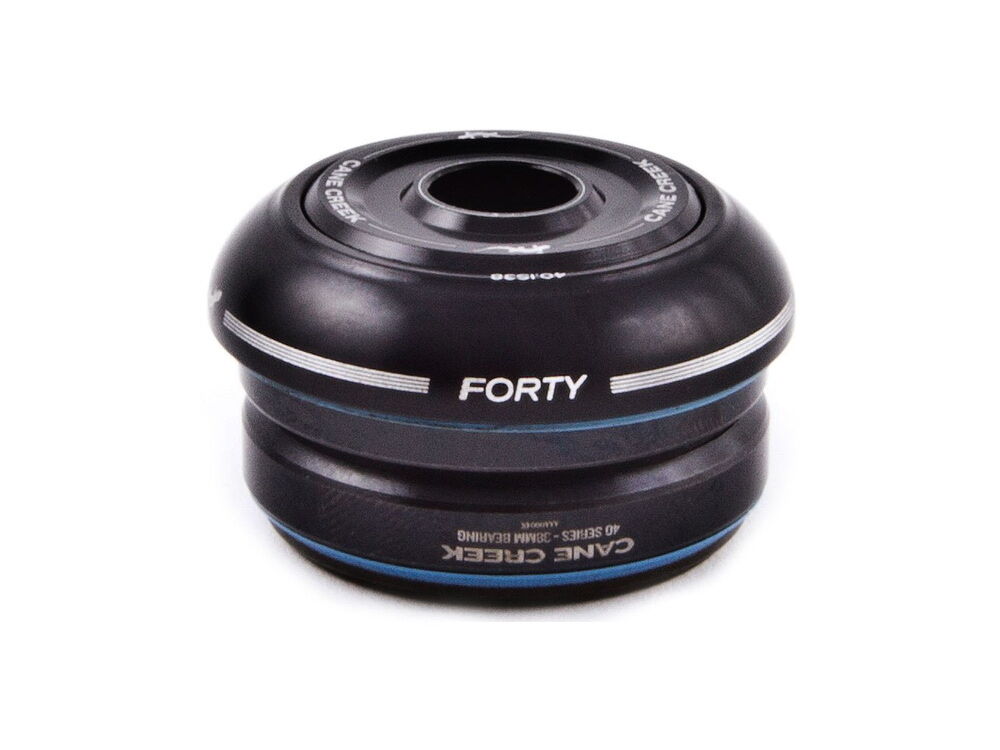

Cane Creek's 40-Series integrated headset sits the bearings directly in the head tube for a lighter, lower-profile fit than an external-cup headset.

Highlights

  • IS38/25.4 top | IS38/26 bottom for a 1in straight steerer
  • Sealed cartridge bearings, Integrated (IS) fit
  • Black finish
  • Interlok spacer compatible

S.H.I.S. — what the code means

S.H.I.S. (Standard Headset Identification System) states the head tube and steerer diameters a headset needs, written as upper | lower. This headset is IS38/25.4 | IS38/26: Integrated top and bottom, a 38mm head tube, with a 25.4mm (1in) steerer at the top bearing and a 26mm crown race seat at the bottom. Matching the code exactly is what makes a headset fit.

Compatibility & fit

Fits a 38mm head tube with a 1in straight steerer only. Cane Creek offers this top cover in two heights (9mm short or 15mm tall); Dirt Works' listing doesn't state which this SKU ships with, so confirm the cover height with Cane Creek or the Tune workshop before ordering. Confirm the full S.H.I.S. code against your frame either way.

Cane Creek backs the 40-Series headset with a 1-year warranty against defects in materials and workmanship. For warranty support, return the product to Tune Cycles and we'll manage the claim with Cane Creek's Australian distributor. This is in addition to your rights under the Australian Consumer Law — keep your proof of purchase.
  • IS38/25.4 | IS38/26 S.H.I.S. — 1in straight steerer
  • Sealed cartridge bearings, Integrated (IS) fit
  • Black finish
  • Interlok spacer compatible
BrandCane Creek
Series40-Series
S.H.I.S.IS38/25.4 | IS38/26
Steerer25.4mm (1in, straight)
Bottom stack height1mm
Fit typeIntegrated (IS)
Part numberBAA0071K
ColourBlack
SKU DTW-CKG-HS40IS38K
Barcode # 840226095028
Brand Cane Creek
Shipping Weight 0.2000kg
