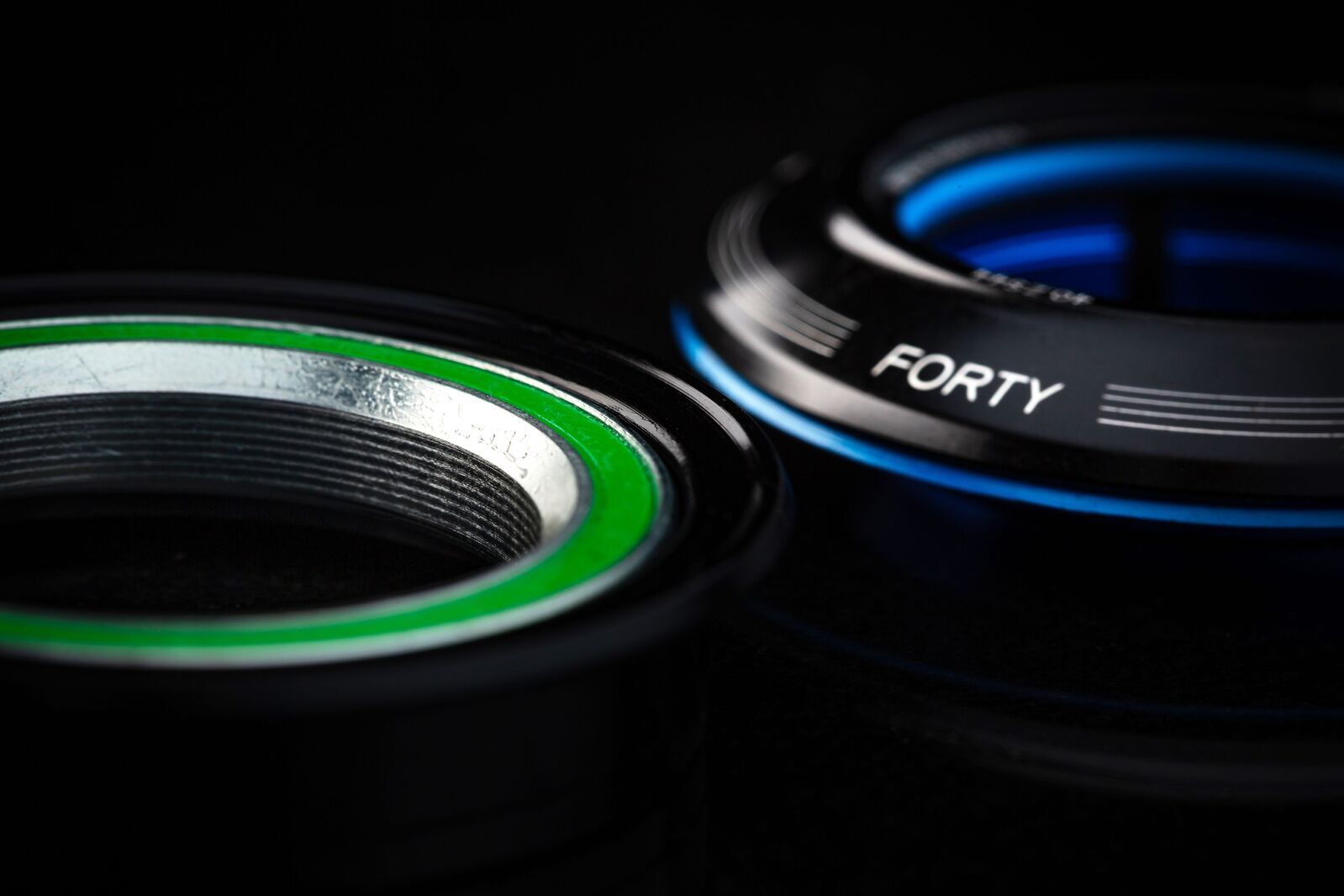

A Cane Creek 40-Series headset with zero-stack cups top and bottom, built for frames with a 56mm head tube bore at both ends and a tapered steerer.

Highlights

  • Zero-stack (ZS) upper and lower, S.H.I.S. ZS56/28.6 | ZS56/40
  • Tapered-steerer assembly
  • Short-cover top
  • ZN40 sealed cartridge bearings, 6061-T6 aluminium cups
  • Black finish

S.H.I.S. explained

Cane Creek's S.H.I.S. code states a headset's fit in one line: cup type, head tube bore, and steerer diameter after the slash. Both halves of this headset read 56, meaning the frame has a 56mm bore at the top of the head tube as well as the bottom — an uncommon pairing, so check your frame's own marking.

Compatibility & fit

Fits a 56mm head tube bore top and bottom, tapered 1-1/8in to 1.5in steerer. Confirm your frame's own S.H.I.S. code matches before ordering.

Cane Creek covers 40-Series headsets with a 1 year warranty against defects in materials and workmanship. For warranty support, return the product to Tune Cycles and we'll manage the claim with Cane Creek's Australian distributor. This is in addition to your rights under the Australian Consumer Law, so keep your proof of purchase.
  • S.H.I.S. ZS56/28.6 | ZS56/40 tapered
  • 56mm head tube fit, top and bottom
  • ZN40 sealed cartridge bearings
  • Black finish
S.H.I.S. upperZS56/28.6
S.H.I.S. lowerZS56/40
SteererTapered 1-1/8in to 1.5in
BearingZN40 sealed cartridge, 36°/45°
ColourBlack
SKU DTW-CKG-HS40ZS56ZS56
Barcode # 840226080192
Brand Cane Creek
Shipping Weight 0.2000kg
