BR-RS785

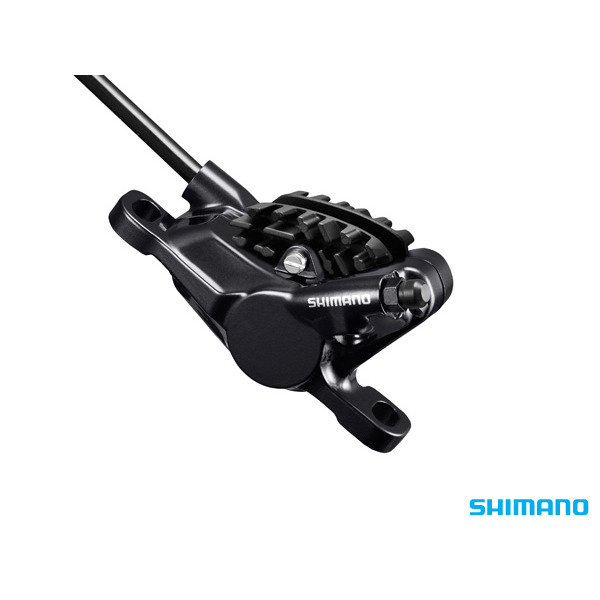

SHIMANO - Post Mount - Hydraulic Disc Brake - Caliper

Compatible with post mount frames and forks, the SHIMANO RS785 hydraulic disc brake caliper utilizes ICE TECHNOLOGY pads for improved heat management.

Shimano warrants to the original retail purchaser that the Shimano bicycle division product for which they received this warranty, is free from non-conformities in material and workmanship for a period of two years and their Dura-Ace and XTR components are covered for a period of three years from the date of original retail purchase. Shimano footwear, soft goods and wheels are warranted for a period of one year.

  • MODEL NO: BR-RS785
  • ULTEGRA 6870 Series
  • Series color (ULTEGRA)
  • Average weight: 271(/pair)
  • ICE TECHNOLOGIES pad compatible caliper
  • Brake hose color (kit): Black | White
  • Brake hose (Kit): SM-BH59-J-SS SM-BH59-JK-SS
  • Brake type: Hydraulic disc brake
  • Caliper fixing bolt Anti loosen method: Snap ring
  • Caliper fixing bolt Tool size: 5mm
  • Hose joint: Straight
  • Mount type: Post-mount
  • Oil: SHIMANO Mineral
  • ONE WAY BLEEDING
  • Pad Option: G02A Resin G03A Resin | G03S Metal
  • Pad Standard: J02A Resin J03A Resin | J04C Metal
  • Pad mount: Pad axle
  • Piston: 2
  • Recommended brake lever: ST-R8070
  • Recommended disc brake rotor: SM-RT99
  • J-Kit spec (for OEM)
  • Oil: SHIMANO Mineral
  • Fixing bolt Spec for rear mount_18.7mm
SKU SHM-IBRRS785MPRF
Barcode # 4524667630654
Brand Shimano
Shipping Weight 0.3000kg
Shipping Cubic 0.001000000m3
Unit Of Measure each

Must be installed and serviced by qualified bicycle mechanic
