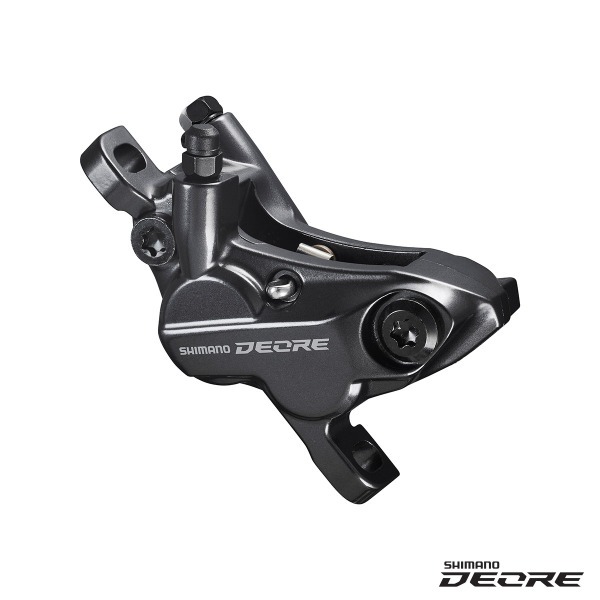

Shimano Deore BR-M6120 four-piston disc brake caliper

The four-piston Deore caliper gives you more braking power and better control on steep, sustained descents, without asking more of your hands. Quick piston retraction helps keep the pads clear of the rotor between grabs.

Highlights

  • Four-piston hydraulic disc brake caliper
  • Post mount fitting, usable front or rear
  • Quick piston retraction for cleaner pad clearance
  • Resin brake pads supplied
  • Deore series colour

More control on long descents

Four pistons spread the clamping load over a larger pad area, so power builds progressively and stays consistent as the brake heats up. That is what gives you the confidence to ride steeper terrain and brake later.

Compatibility and fit

Post mount caliper, supplied without a mount adapter, so you will need the correct adapter for your frame or fork and rotor size. Use Shimano mineral oil only. Sold as a caliper: lever, hose, rotor and adapter are purchased separately. If you are unsure what your bike takes, ask us before you order.

Shimano warrants to the original retail purchaser that the Shimano bicycle division product for which they received this warranty, is free from non-conformities in material and workmanship for a period of two years and their Dura-Ace and XTR components are covered for a period of three years from the date of original retail purchase. Shimano footwear, soft goods and wheels are warranted for a period of one year.

  • Superior modulation gives you the power you need
  • Quick piston retraction
  • High power 4-piston disc brake caliper
  • MODEL NO: BR-M6120
  • DEORE M6100 Series
  • Black Series Color (SHIMANO logo) ***
  • Remarks  *Only compatible with resin pad
  • Black Brake hose color (kit)
  • Brake hose (Kit): SM-BH90-SS
  • Hydraulic disc brake type
  • Anti loosen method Snap ring Caliper fixing bolt
  • Caliper fixing bolt Tool size: 5mm
  • Hose joint Straight
  • J-Kit spec (for OEM)
  • Mount type: Post-type
  • Oil    SHIMANO Mineral
  • ONE WAY BLEEDING
  • D02S Metal Pad Option
  • D03S Resin Pad Standard
  • Split pin Stainless Steel Pad mount
  • Piston: 4
  • Recommended brake lever: BL-M6100
  • Recommended disc brake rotor: SM-RT54* SM-RT56* SM-RT64 SM-RT66
  • Compatible Brake Rotor Size: 140 mm (SS)
  • Compatible Brake Rotor Size: 160 mm (S)
  • Compatible Brake Rotor Size: 180 mm (M)
  • Compatible Brake Rotor Size: 203 mm (L)
SeriesDeore
TypeHydraulic disc brake caliper
Pistons4
Mount typePost mount
PositionFront or rear
Pads suppliedResin
ColourSeries colour
SKU SHM-EBRM6120MPRX
Barcode # 4550170615734
Brand Shimano
Shipping Weight 0.3000kg
Shipping Cubic 0.001000000m3
Unit Of Measure each

Must be installed and serviced by qualified bicycle mechanic
