BR-4770-R

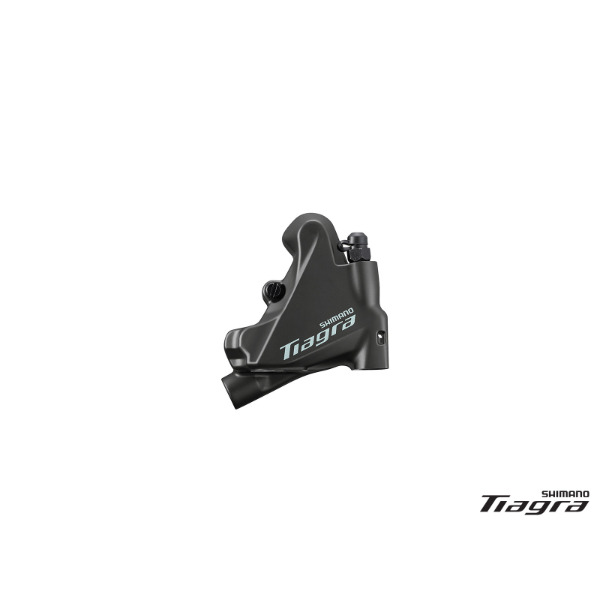

SHIMANO TIAGRA - Flat Mount - Hydraulic Disc Brake - Rear Caliper

The all-new SHIMANO TIAGRA BR-4770 hydraulic disc brake caliper offers greater rider control in all conditions. With convenient ONE WAY BLEEDING and easy hose joint system, installation and adjustment are kept simple.

Shimano warrants to the original retail purchaser that the Shimano bicycle division product for which they received this warranty, is free from non-conformities in material and workmanship for a period of two years and their Dura-Ace and XTR components are covered for a period of three years from the date of original retail purchase. Shimano footwear, soft goods and wheels are warranted for a period of one year.

  • Greater rider control and confidence in all conditions
  • Integrated hydraulic brake and shifting lever
  • Simple set up and maintenance
  • Convenient tool access
  • Easy hose joint system (J-kit)
  • Simple wheel replacement
  • Easy and clean bleeding system
  • ONE WAY BLEEDING
  • Model No: BR-4770-R
  • TIAGRA 4700 Series
  • Series color
  • Black Brake Hose Color (kit)
  • Brake Hose (Kit): SM-BH90-JK-SSR
  • Hydraulic Disc Brake Type
  • Bolt Fix Pin Caliper Fixing Bolt Anti Loosen Method
  • Caliper Fixing Bolt Tool Size: 4mm
  • Fixing Bolt Spec For Rear Mount 10mm Mount
  • Fixing Bolt Spec For Rear Mount 15mm Mount
  • Fixing Bolt Spec For Rear Mount 20mm Mount
  • Fixing Bolt Spec For Rear Mount 25mm Mount
  • Fixing Bolt Spec For Rear Mount 30mm Mount
  • Fixing Bolt Spec For Rear Mount 35mm Mount
  • Straight Hose Joint
  • Flat Mount Type
  • Oil SHIMANO Mineral
  • Pad Option: L03A-R
  • Pad Standard: K03S Resin | K04S Metal
  • Pad Mount Axle
  • Piston: 2
  • Recommended Brake Lever: ST-4720 ST-4725
  • Recommended Disc Brake Rotor: SM-RT64
  • J-Kit spec (for OEM)
SKU SHM-IBR4770RDRF
Barcode # 4550170448486
Brand Shimano
Shipping Weight 0.3000kg
Shipping Cubic 0.001000000m3
Unit Of Measure each

Must be installed and serviced by qualified bicycle mechanic
