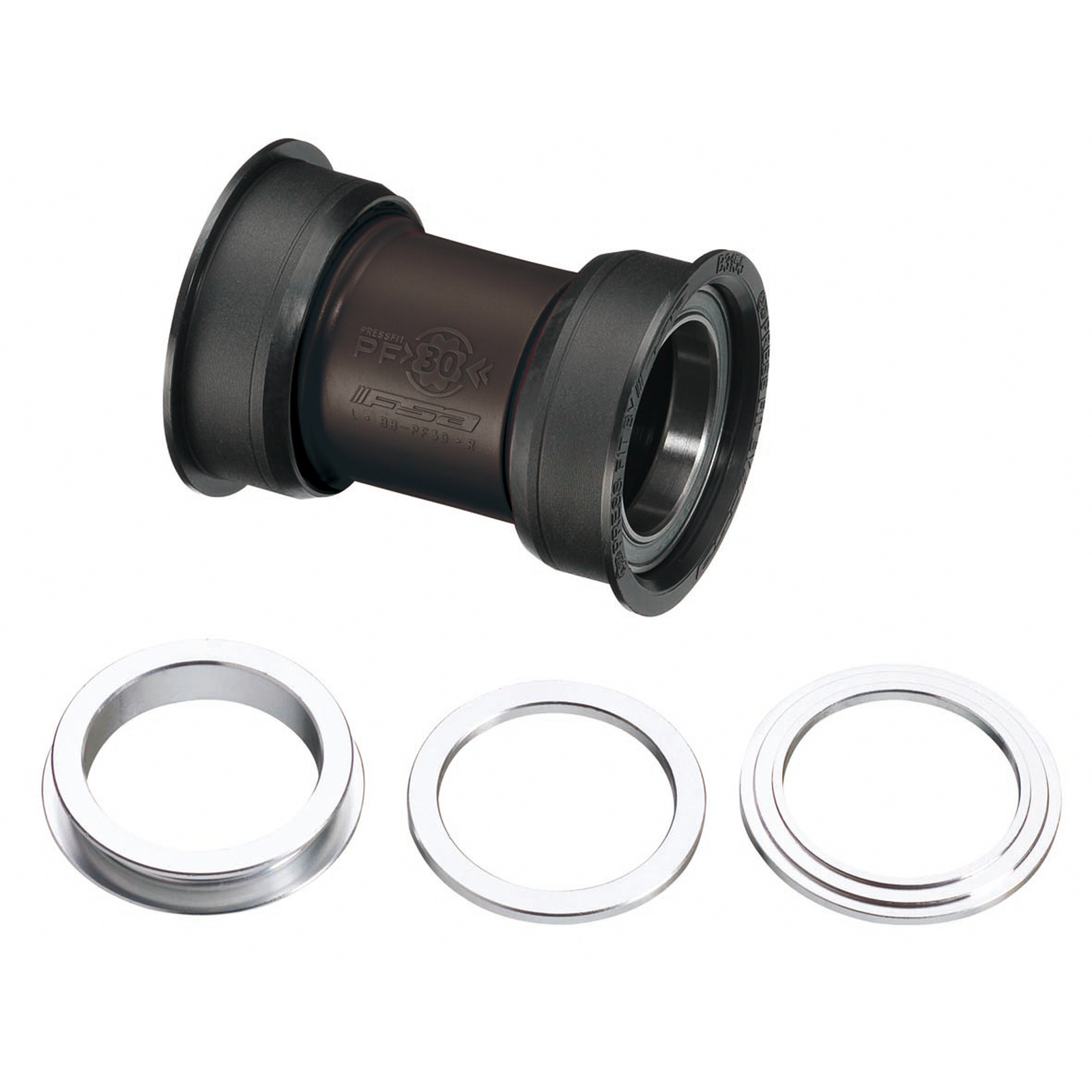

An FSA bottom bracket for a PF30 (68 or 73mm) frame shell, taking a BB392EVO or BB30 (30mm) crank spindle.

Highlights

  • Frame shell: PF30 (68 or 73mm)
  • Crank spindle: BB392EVO or BB30 (30mm)
  • Bearings: Stainless steel cartridge
  • Cups: Nylon
  • Included: Wave spring, bearing shield, spacer, adjustment washers

Details

Press-fit bottom brackets press straight into a smooth, unthreaded frame shell, so the shell must be the right size, clean and in good condition for the cups to sit square and quiet.

Fit and compatibility

It suits a PF30 (68 or 73mm) frame shell and a BB392EVO or BB30 (30mm) crank spindle. Measure the shell width and check whether it's threaded or press-fit before you order. If you're changing crank standards at the same time, check that the new crank's spindle length and chainline suit the frame as well.

Fitting

Bottom brackets need the right tools and a clean, properly prepared shell, and press-fit cups must go in square. Our workshop can fit it and check the crank's preload and play at the same time.

Not sure what shell your frame has? Send us the frame model or a photo of the bottom bracket area and we'll confirm the fit before you order.

FSA warrants its products against defects in materials and workmanship for two years from the original purchase, for the original purchaser. Bearings, seals and wave washers are wear parts, so they're covered for manufacturing defects only, not wear.

For a warranty claim, return the item to Tune Cycles with your proof of purchase and we'll manage the claim for you. FSA products come with guarantees that can't be excluded under the Australian Consumer Law, and this cover is in addition to those rights.

  • Frame shell: PF30 (68 or 73mm)
  • Crank spindle: BB392EVO or BB30 (30mm)
  • Bearings: Stainless steel cartridge
  • Cups: Nylon
  • Included: Wave spring, bearing shield, spacer, adjustment washers
Frame shellPF30 (68 or 73mm)
Crank spindleBB392EVO or BB30 (30mm)
BearingsStainless steel cartridge
CupsNylon
IncludedWave spring, bearing shield, spacer, adjustment washers
SKU BPW-FSA-0032
Model # FSA-0032
Barcode # 4710636251351
Brand FSA
