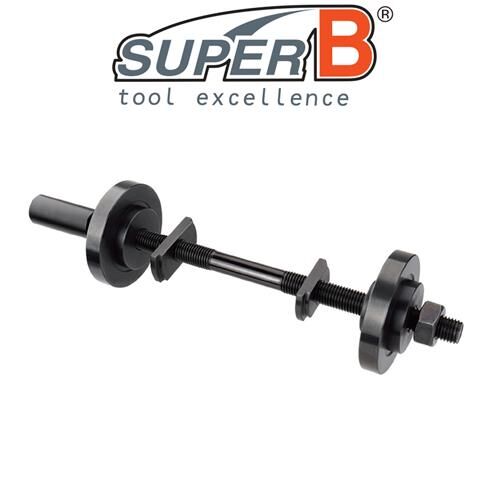

One threaded-rod tool that both pulls out and presses in press-fit bottom bracket bearings, designed by Super B to do the job without damaging the frame.

Highlights

  • Removes and installs press-fit BB bearings
  • BB86 / BB90 / BB92 (24 mm)
  • BB30 (30 mm)
  • 24 mm and 30 mm plates for removal
  • Turned with an 8 mm hex key and a 17 mm open-ended wrench

What's in the set

Threaded rod, two bushings, a 24 mm plate, a 30 mm plate, washer, two M10 nuts and a cover.

How it works

To remove a bearing, the plate for your bearing size goes in behind it and the rod pulls it out against the cover. Hold the rod with an 8 mm hex key and turn the M10 nut with a 17 mm open-ended wrench (not included).

Compatibility & fit

Fits BB86, BB90 and BB92 press-fit bottom brackets with 24 mm bearings, and BB30 with 30 mm bearings. Prefer to leave it to us? Our workshop can remove and press in bottom brackets.

Super B offers a limited lifetime warranty: under normal use, a tool with a defect in material or manufacture will be repaired or replaced. It doesn't cover normal wear, or damage from accident, abuse, neglect, modification or improper use. This cover is in addition to your rights under the Australian Consumer Law. Keep your proof of purchase. For warranty support, return the product to Tune Cycles and we'll manage the claim with Super B's Australian distributor.

  • Press-fit BB removal and installation
  • BB86 / BB90 / BB92 (24 mm)
  • BB30 (30 mm)
  • Threaded-rod design
  • Use with 8 mm hex and 17 mm wrench
BrandSuper B
ModelTB-19002 2-in-1 B.B. Installation & Removal Tool Set
FitsBB86 / BB90 / BB92 (24 mm), BB30 (30 mm)
ContentsThreaded rod, 2 bushings, 24 mm plate, 30 mm plate, washer, 2 M10 nuts, cover
Tools needed8 mm hex key, 17 mm open-ended wrench (not included)
SKU BCP-TB19002
Model # TB19002
Barcode # 4712947227797
Brand Super B Tools
Shipping Weight 0.4000kg
Shipping Width 0.200m
Shipping Height 0.080m
Shipping Length 0.300m
