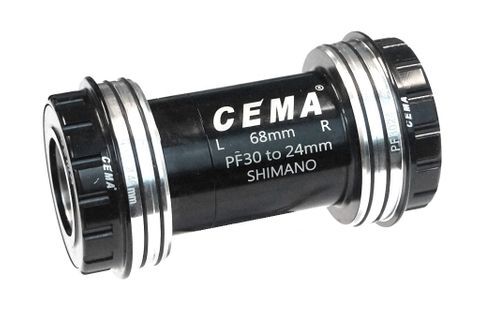

Bottom Bracket CEMA, Ceramic Hybrid, Interlock Adaptor, PF30 to 24mm interlock W:68/73 x OD:46

A CEMA ceramic hybrid bottom bracket for 24 mm Shimano / FSA-type cranks — ceramic balls in steel races for less drag and longer service than a stock steel unit. PF30 to 24 mm interlock adaptor for a 68/73 mm PF30 shell (46 mm bore).

Highlights

  • Hybrid ceramic bearings
  • PF30 to 24 mm interlock adaptor
  • 24 mm spindle (Shimano Hollowtech II, FSA MegaExo type)
  • Interlocking cups resist creak on press-fit shells

Fit and compatibility

Fits a 68/73 mm PF30 shell (46 mm bore) with a 24 mm-spindle crank (Shimano, FSA and compatible). Check your frame's shell standard and width before ordering — the wrong standard will not fit.

Supplied by Tune Cycles in Marrickville, Sydney — buy online, or have us fit it in the workshop. Every hub, headset and bottom bracket service we do uses these bearings.

Manufacturing defects are covered under CEMA's warranty terms. Return the item to Tune Cycles and we will manage the claim on your behalf — you do not need to contact CEMA or the distributor. Bearings are wear items; normal wear, contamination and damage from incorrect fitting are not covered. This is in addition to your rights under the Australian Consumer Law.

  • Hybrid ceramic bearings
  • PF30 to 24 mm interlock adaptor
  • 24 mm spindle
CEMA modelSRC-BT-PF3024B
TypePF30 to 24 mm interlock adaptor
Shell68/73 mm PF30 shell (46 mm bore)
Spindle24 mm (Shimano / FSA type)
BearingsHybrid ceramic
SKU BPW-0843
Model # 0843
Barcode # 9339506043848
Brand CEMA
