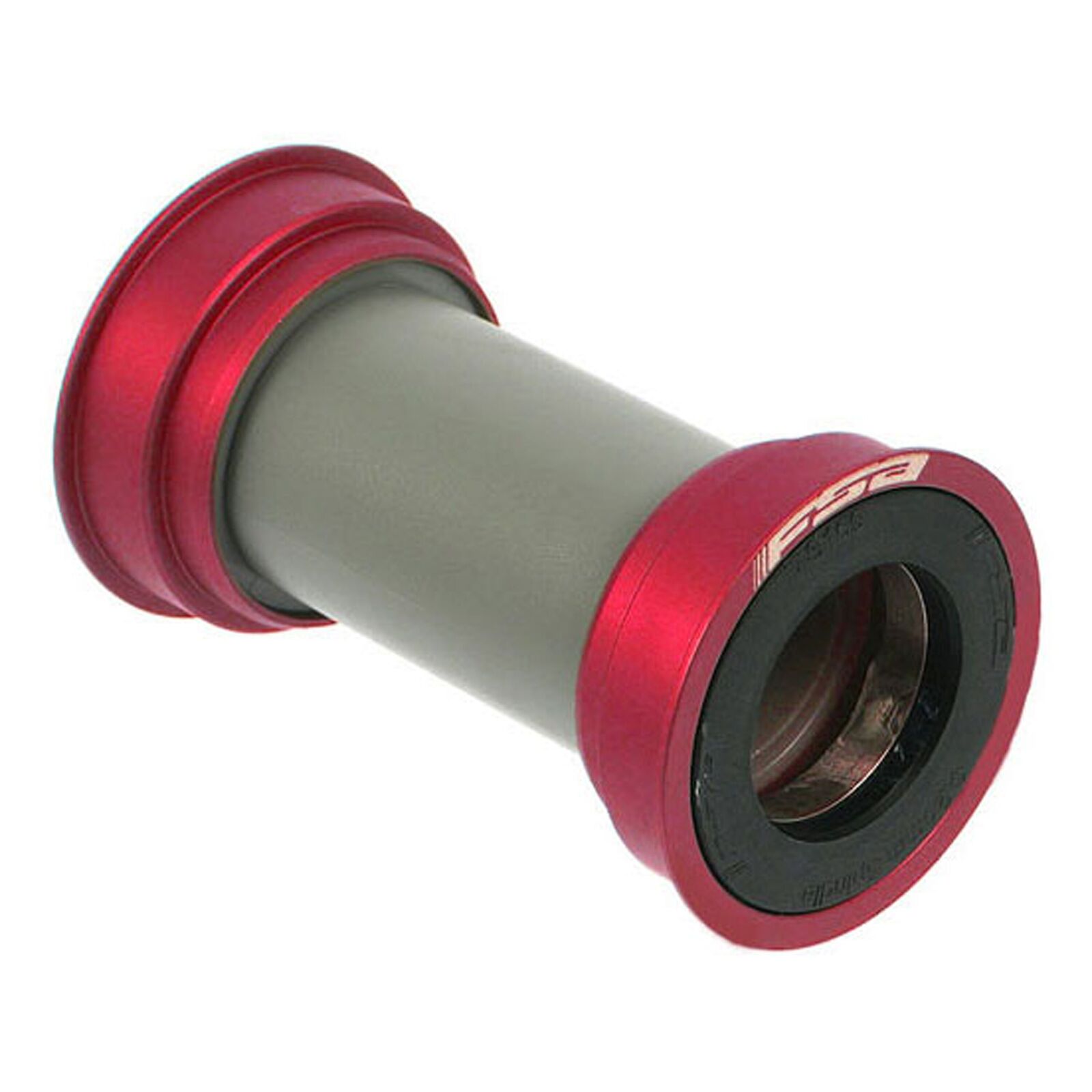

An FSA bottom bracket for a BB86 press-fit frame shell, taking a MegaExo crank spindle.

Highlights

  • Frame shell: BB86 press-fit
  • Crank spindle: MegaExo
  • Spindle diameter: 24mm
  • Bearings: Ceramic
  • Included: MW454 washer, MS150 o-ring, ME179 grease syringe

Details

Press-fit bottom brackets press straight into a smooth, unthreaded frame shell, so the shell must be the right size, clean and in good condition for the cups to sit square and quiet.

Fit and compatibility

It suits a BB86 press-fit frame shell and a MegaExo crank spindle. Measure the shell width and check whether it's threaded or press-fit before you order. If you're changing crank standards at the same time, check that the new crank's spindle length and chainline suit the frame as well.

Fitting

Bottom brackets need the right tools and a clean, properly prepared shell, and press-fit cups must go in square. Our workshop can fit it and check the crank's preload and play at the same time.

Not sure what shell your frame has? Send us the frame model or a photo of the bottom bracket area and we'll confirm the fit before you order.

FSA warrants its products against defects in materials and workmanship for two years from the original purchase, for the original purchaser. Bearings, seals and wave washers are wear parts, so they're covered for manufacturing defects only, not wear.

For a warranty claim, return the item to Tune Cycles with your proof of purchase and we'll manage the claim for you. FSA products come with guarantees that can't be excluded under the Australian Consumer Law, and this cover is in addition to those rights.

  • Frame shell: BB86 press-fit
  • Crank spindle: MegaExo
  • Spindle diameter: 24mm
  • Bearings: Ceramic
  • Included: MW454 washer, MS150 o-ring, ME179 grease syringe
Frame shellBB86 press-fit
Crank spindleMegaExo
Spindle diameter24mm
BearingsCeramic
IncludedMW454 washer, MS150 o-ring, ME179 grease syringe
SKU BPW-FSA-0020
Model # FSA-0020
Barcode # 4710636251726
Brand FSA
Shipping Weight 0.3000kg
Shipping Width 0.160m
Shipping Height 0.060m
Shipping Length 0.220m
