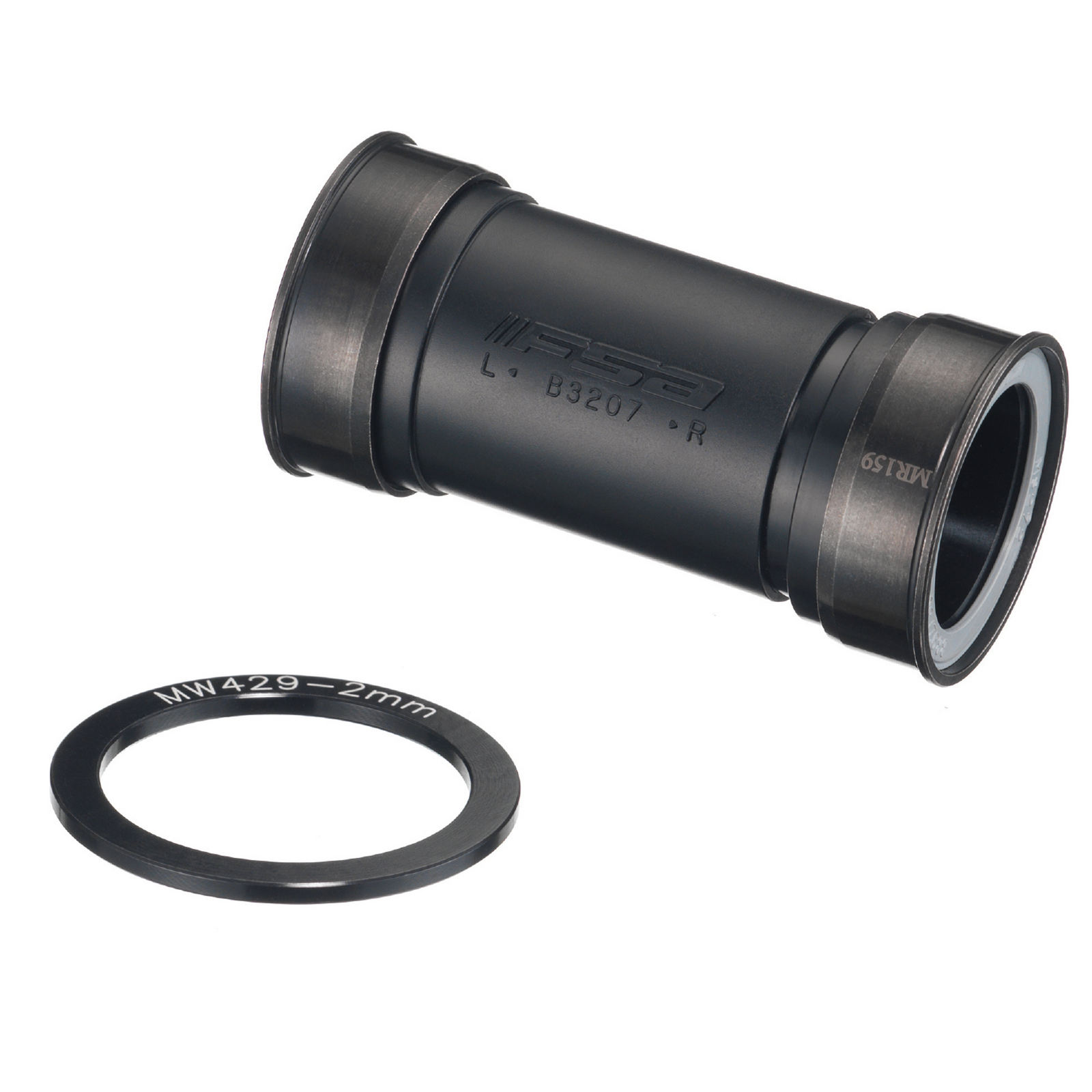

An FSA bottom bracket adapter for running a BB392EVO (30mm) crank in a BB89.5 or BB92 press-fit frame.

Highlights

  • Fits into: BB89.5 or BB92 press-fit
  • Crank spindle: BB392EVO (30mm)
  • Weight: 89g

Details

An adapter or reducer lets a crank built for one bottom bracket standard run in a frame or bottom bracket built for another, so you can keep your frame and still fit the crank you want.

Fit and compatibility

It fits a BB392EVO (30mm) crank into a BB89.5 or BB92 press-fit. Check your crank's spindle diameter and your frame's shell before ordering, because adapters are specific to both. If you're changing crank standards at the same time, check that the new crank's spindle length and chainline suit the frame as well.

Fitting

Bottom brackets need the right tools and a clean, properly prepared shell, and press-fit cups must go in square. Our workshop can fit it and check the crank's preload and play at the same time.

Not sure what shell your frame has? Send us the frame model or a photo of the bottom bracket area and we'll confirm the fit before you order.

FSA warrants its products against defects in materials and workmanship for two years from the original purchase, for the original purchaser.

For a warranty claim, return the item to Tune Cycles with your proof of purchase and we'll manage the claim for you. FSA products come with guarantees that can't be excluded under the Australian Consumer Law, and this cover is in addition to those rights.

  • Fits into: BB89.5 or BB92 press-fit
  • Crank spindle: BB392EVO (30mm)
  • Weight: 89g
Fits intoBB89.5 or BB92 press-fit
Crank spindleBB392EVO (30mm)
Weight89g
SKU BPW-FSA-0047
Model # FSA-0047
Barcode # 4712865864982
Brand FSA
