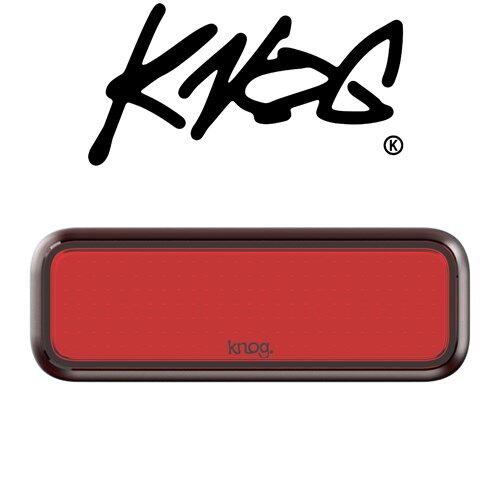

A slim rectangular rear light for eBikes, mounted on the rack or mudguard and powered by the bike's own battery, so it comes on with the bike's lighting control. The beam pattern is StVZO certified.

Highlights

  • 25 lumens, red, from Chip on Board (COB) LEDs
  • StVZO-certified beam pattern
  • Mounts to a pannier rack or mudguard at 50 mm or 80 mm bolt spacing
  • Runs off the eBike system, controlled by the bike
  • IP67 waterproof

Installation

These lights run off the eBike's own battery and have to be wired into the motor system. Knog recommends a bike shop does the install, as it can mean some disassembly and extra wiring depending on the motor. Our workshop can fit and wire it for you; installation isn't included in the price.

In the box

Rectangular rear light (25 lumens) with 1350 mm cable, and a mounting bracket (50 mm and 80 mm spacing) with hardware.

Compatibility & fit

Knog lists it as compatible with all major eBike systems; check your motor manufacturer's specification. Mounts to a pannier rack or mudguard with 50 mm or 80 mm spacing.

Knog gives its products a 2-year warranty from the date of purchase, covering defective hardware, software faults and factory defects. It doesn't cover ordinary wear and tear, or damage caused by improper use or accidents. This cover is in addition to your rights under the Australian Consumer Law. Keep your proof of purchase. For warranty support, return the product to Tune Cycles and we'll manage the claim with Knog's Australian distributor.

  • 25 lumens red, COB LEDs
  • StVZO-certified beam pattern
  • 50 mm and 80 mm mounting spacing
  • Powered and controlled by the eBike system
  • IP67, 1350 mm cable
BrandKnog
ModelBlinder E RH
Part number13077
PositionRear
Max output25 lm (0.6 W)
ColourRed
LEDChip on Board (COB)
Beam patternStVZO certified
LocationPannier rack / mudguard
Mounting spacing50 mm and 80 mm
OperationVia eBike system
Cable1350 mm eBike extension cable
WaterproofIP67
HousingPolycarbonate
Weight55 g incl. cable and bracket
DimensionsH 10 x W 23 x L 78 mm
Operating temperature-10 to 40 °C
SKU BCP-KN13077
Model # KN13077
Barcode # 9328389031288
Brand Knog Lights
