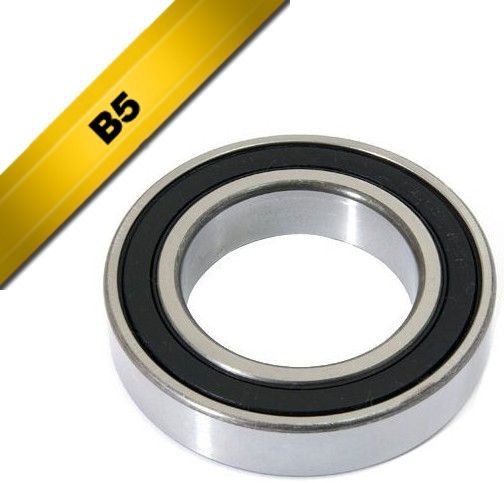

The Black Bearing 16100 is a performance-upgrade cartridge bearing sized 10x28x8mm (ID x OD x width), built as a direct replacement for a worn bearing of this size in a hub, pivot, pulley or bottom bracket cup.

Highlights

  • Chrome steel balls to ABEC 5 tolerance
  • SAE52100 rings with an optimised internal profile
  • Chrome steel cage
  • Reinforced 2RS seals for better water and dust resistance

Bearing details

Designation 16100, grade B5 (ABEC 5). Bore (ID) 10 mm, outside diameter (OD) 28 mm, width 8 mm. Sealed both sides (2RS) to keep water and grit out.

Compatibility & fit

Fits any hub, pivot, pulley or bottom bracket cup that calls up a 16100 (10x28x8mm) cartridge bearing. Check the size stamped on your old bearing before ordering — Tune Cycles can confirm fitment and press the new bearing in as part of a bearing-replacement service.

We could not confirm a published warranty term for this line, so cover here is against manufacturing defects, with remedies as required under Australian Consumer Law. For warranty support, return the product to Tune Cycles and we'll manage the claim with Black Bearing's Australian distributor.
  • Chrome steel balls to ABEC 5 tolerance
  • SAE52100 rings with an optimised internal profile
  • Chrome steel cage
  • Reinforced 2RS seals for better water and dust resistance
  • 10x28x8mm (ID x OD x width), designation 16100
Designation16100
Bore (ID)10 mm
Outside diameter (OD)28 mm
Width8 mm
GradeB5 (ABEC 5)
Seal type2RS (double rubber seal)
SKU SCV-BBBG-UB-16100-B5
Brand Black Bearing
