Profile Design ASC Computer Mount for 43 and 52 ASC Extensions Garmin
SKU code: BCP-ACASCGMT

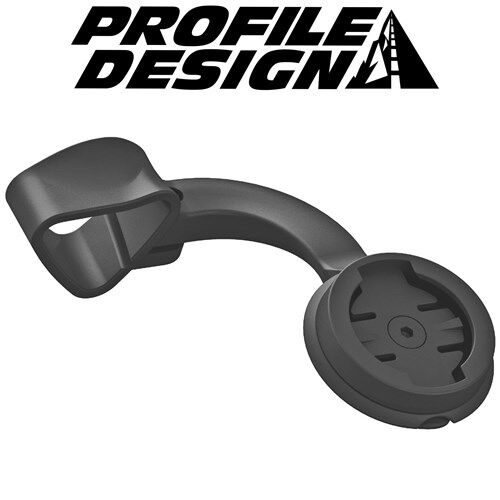

The ASC computer mount puts your head unit on a 43 or 52 ASC extension with low weight and a small frontal area, and enough adjustment to fine-tune the viewing angle.
Highlights
- Made for 43 and 52 ASC series extensions
- Smooth horizontal and rotational adjustment
- Tilts up to 15° left and 5° right
- Garmin quarter-turn interface
- Nylon, 24 g
Fitting
The mount installs on the left extension: it pushes on from the opening and clamps with a 2.5 mm hex bolt. Profile Design lists 0.7 Nm for the bracket bolt and 0.8 Nm for the Garmin mount bolt (never more than 1 Nm).
Compatibility & fit
For Profile Design 43 and 52 ASC series extensions only; not compatible with ASC Pro extensions (use the ASC Pro Computer Mount). Designed for Garmin 500 and 800 series computers: Profile Design notes a 1000 series unit may hit your wrist and tilt the computer. Wahoo computers need an aftermarket adapter.
Aerobar fitting and position set-up is a separate workshop service and isn't included in the price. Our workshop can fit the mount and set up your position.
Profile Design warrants this product to the original retail purchaser against defects in materials and workmanship for two years from the date of original retail purchase. The warranty does not cover products that have been modified, misused, involved in a crash or impact, or damaged by improper assembly or by failing to follow the installation instructions.
This cover is in addition to your rights under the Australian Consumer Law. Keep your proof of purchase.
For warranty support, return the product to Tune Cycles and we'll manage the claim with Profile Design's Australian distributor.
- For 43 and 52 ASC extensions (not ASC Pro)
- Garmin 500 and 800 series; Wahoo with aftermarket adapter
- Tilt 15° left, 5° right
- Nylon, black
- 24 g (brand-listed)
| Material | Nylon |
|---|---|
| Compatible extensions | ASC 43 and 52 series (not ASC Pro) |
| Compatible computers | Garmin 500 and 800 series; Wahoo with aftermarket adapter |
| Mounting | Left extension |
| Tilt range | 15° left, 5° right |
| Torque | Bracket 0.7 Nm; Garmin mount 0.8 Nm (max 1 Nm) |
| Colour | Black |
| Weight (brand-listed) | 24 g |
| SKU | BCP-ACASCGMT |
| Model # | ACASCGMT |
| Barcode # | 0723660011994 |
| Brand | Profile Design |
| Shipping Weight | 0.0640kg |
| Shipping Width | 0.120m |
| Shipping Height | 0.100m |
| Shipping Length | 0.800m |
