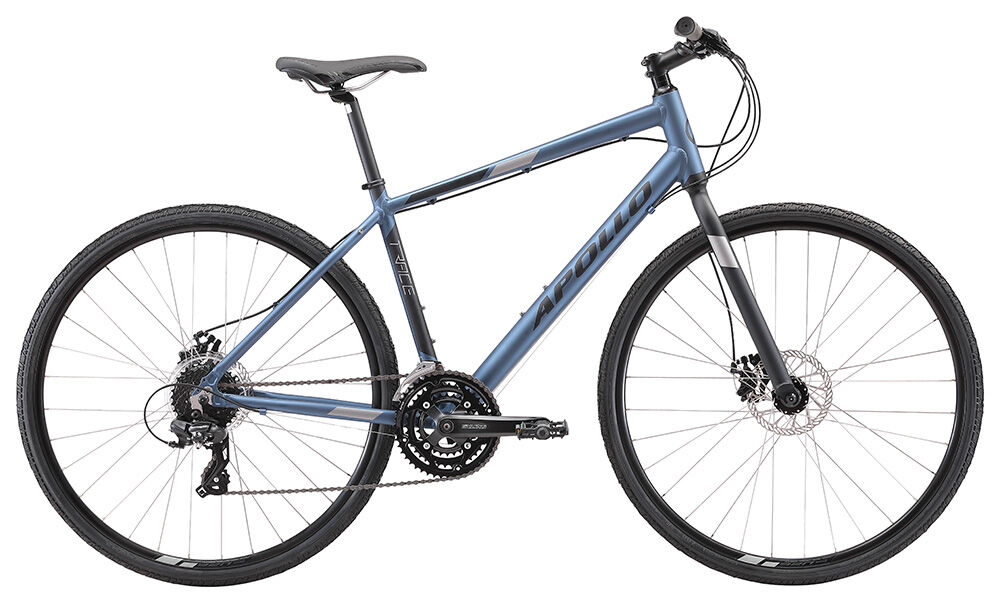

Apollo Trace 20 Flat Bar Hybrid Bike – M
SKU code: APO-22005
The Trace 20 is a fast, practical 700c flat-bar bike for commuting and fitness, with 24 gears and disc brakes.
- Butted alloy frame with pannier mounts
- Rigid disc trekking fork with rack and mudguard mounts
- Shimano 3 x 8 (24-speed) gearing with EZ Fire shifters
- Mechanical disc brakes with 160 mm rotors
The details
Weinmann double-wall disc rims with 700 x 38c Kenda Urban Sport tyres and Kraton ERGO grips.
Sizes and colours
Available in sizes S to XL, in Matte Slate / Black. Not sure which size suits you? Our team is happy to help you choose.
Apollo bikes are covered by Apollo Bicycle Co.'s limited warranty for the original purchaser, when bought new and assembled by an authorised dealer:
- Aluminium frame: 5 years against failure at any weld point (frame fatigue is not covered)
- Paint finish, parts and accessories: 12 months from the date of purchase
- Tyres and tubes are not covered
The warranty does not cover abuse, neglect, accidents, improper repair or maintenance, or modification. For warranty support, return the bike to Tune Cycles with your proof of purchase and we'll manage the claim with Apollo for you. This warranty is in addition to your rights under the Australian Consumer Law.
- Butted alloy frame with pannier mounts
- Rigid disc trekking fork with rack and mudguard mounts
- Shimano 3 x 8 (24-speed) gearing with EZ Fire shifters
- Mechanical disc brakes with 160 mm rotors
| Model | Apollo Trace 20 |
|---|---|
| Colour | Matte Slate / Black |
| Frame sizes | S, M, L, XL |
| Frame | 6061 butted alloy frame with integrated head tube, pannier mounts and replaceable derailleur hanger |
| Fork | 700c disc specific hi-ten rigid integrated trekking fork with rack and fender mounts |
| Headset | A-head semi integrated 1-1/8" with 10mm cone spacer |
| Handlebar | Alloy low riser, bore: 31.8mm, W: 600mm, sweep: 6° |
| Grips | Kraton ERGO comfort grip |
| Stem | Alloy, 31.8mm, S=70mm, M/L=90mm, XL=105mm |
| Crankset | Suntour XCE 48 x 38 x 28T L: S/M=170mm, L/XL=175mm |
| Bottom bracket | Cartridge bottom bracket |
| Pedals | Low profile high impact resin |
| Front derailleur | Shimano FD-TY710 |
| Rear derailleur | Shimano RD-TX800 8 speed |
| Shifters | Shimano EF-500 Ez Fire 24 speed |
| Cassette / freewheel | Shimano 8 speed cassette 12-32T |
| Chain | KMC Z-7 |
| Brakes | JAK-8 mechanical disc brakes with 160mm rotors |
| Wheels | 700c Weinmann U-26 double wall disc specific rims, 32 hole A/V, alloy quick release disc hubs with stainless spokes |
| Tyres | Kenda Urban Sport 700 x 38c wire bead |
| Saddle | Apollo Ergotech dual density saddle |
| Seatpost / clamp | Alloy 27.2mm micro adjust |
| SKU | APO-P-TRACE-20 |
| Brand | Apollo |
| Shipping Weight | 17.0000kg |
| Shipping Width | 0.250m |
| Shipping Height | 0.800m |
| Shipping Length | 1.450m |
