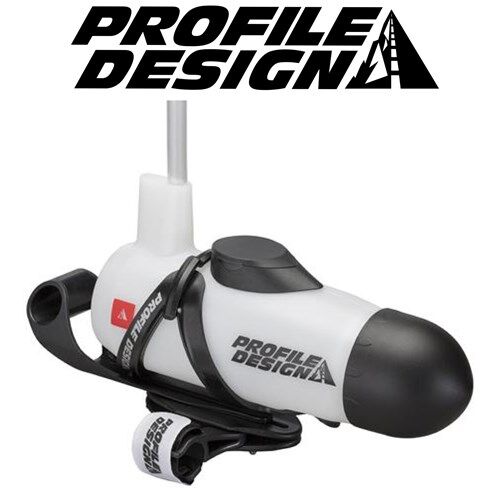

Profile Design Aero HC Between-the-Arms Hydration System 710ml
SKU code: BCP-ACHCARDRK
The Aero HC puts 710 ml between your arms on the aerobar extensions, out of the wind, with a computer mount in front. The flip cap lets you refill on the move without splashing.
Highlights
- 710 ml (24 oz) BPA-free, food-safe HDPE bottle
- Flip cap for quick, splash-free refills
- Aerodynamic shrouded straw mount
- Removable nose for cleaning
- Cage and computer mount adjust fore-aft independently
- 248 g system, 138 g bracket only
How it mounts
The nylon/glass-fibre bracket straps to the extensions with hook-and-loop straps and adjusts in width (85–120 mm centre to centre) and length. Loosening the two M5 bolts lets the cage and computer mount slide fore and aft. A bridge clips over the bottle to hold it in the cage, and the 280 mm silicone straw is cut to the length that suits your position.
Options
The bracket takes the Aero HC bottle or a standard water bottle, and the computer mount can be removed. The Aero HC bottle also works with Profile Design's Basebar Bracket if you want to position the extensions independently.
Compatibility & fit
Mounts to aerobar extensions 85–120 mm apart (centre to centre). Depending on the configuration the bolts can protrude below the bracket, so take care not to mark the stem.
Aerobar fitting and position set-up is a separate workshop service and isn't included in the price. Our workshop can fit it with your aerobars and set up your position.
Profile Design warrants this product to the original retail purchaser against defects in materials and workmanship for two years from the date of original retail purchase. The warranty does not cover products that have been modified, misused, involved in a crash or impact, or damaged by improper assembly or by failing to follow the installation instructions.
This cover is in addition to your rights under the Australian Consumer Law. Keep your proof of purchase.
For warranty support, return the product to Tune Cycles and we'll manage the claim with Profile Design's Australian distributor.
- 710 ml bottle with flip cap
- Shrouded straw mount, 280 mm silicone straw
- Integrated, removable computer mount
- Bracket adjusts 85–120 mm centre to centre
- Hook-and-loop strap mounting to the extensions
- 248 g system weight
| Capacity | 710 ml (24 oz) |
|---|---|
| Bottle | BPA-free, food-safe HDPE |
| Bracket and computer mount | Injected nylon/glass fibre |
| Width adjustment | 85–120 mm (centre to centre) |
| Straw | Silicone, 280 mm |
| Mounting | Hook-and-loop straps to the extensions |
| Weight | 248 g system, 138 g bracket only |
| SKU | BCP-ACHCARDRK |
| Model # | ACHCARDRK |
| Barcode # | 0723661001543 |
| Brand | Profile Design |
| Shipping Weight | 0.4280kg |
| Shipping Width | 0.120m |
| Shipping Height | 0.100m |
| Shipping Length | 0.800m |
