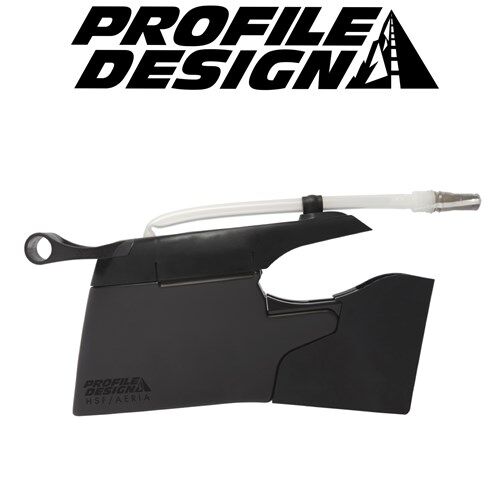

Profile Design HSF Aeria Front Hydration System 857ml
SKU code: BCP-ACARADRK1
The HSF/Aeria is a front hydration bottle that clips to a compatible Profile Design stem and sits between the stem and the frame, smoothing airflow while you carry 857 ml. Paired with a WING/20c+ base bar it gives a fully integrated front end.
Highlights
- 857 ml (30 oz), BPA-free food-safe HDPE
- Race-proven no-splash fill port
- Magnetic straw mount keeps the hose tidy over the top
- Bite valve for fluid control
- Removable computer mount, with a blank nose piece supplied
In the box
Bottle, top cover with fill port, blank nose piece, rubber gusset, flexible drinking hose (600 mm straw) with bite valve, hose magnet and mounting magnet, and the HSF mounting clip with M5 bolts. The rubber gusset can be trimmed along its guide lines to match your frame.
Clearance
Profile Design's drawing measures from the centre of the bottom of the stem to the centre of the front brake mounting hole: with a 100 mm stem you need 125 mm or more, with a 70 mm stem 145 mm or more. The clip must be free of pressure from the stem or frame once installed. Clip bolts torque to 2 Nm.
Compatibility & fit
Mounts only to Profile Design stems designed for it: the Tri Stem (80 mm or 105 mm), the 1/Seventeen with the HSF Aeria Faceplate (80 mm minimum), the Aeria Ultimate stem and the Wing Ultimate. Profile Design has not tested fit on frames with head tube nose cones or bayonet-style forks and suggests checking with the frame maker.
Our workshop can fit the system and check brake and frame clearance.
Profile Design warrants this product to the original retail purchaser against defects in materials and workmanship for two years from the date of original retail purchase. The warranty does not cover products that have been modified, misused, involved in a crash or impact, or damaged by improper assembly or by failing to follow the installation instructions.
This cover is in addition to your rights under the Australian Consumer Law. Keep your proof of purchase.
For warranty support, return the product to Tune Cycles and we'll manage the claim with Profile Design's Australian distributor.
- 857 ml capacity
- No-splash fill port
- Magnetic straw mount and bite valve
- Removable computer mount
- BPA-free food-safe HDPE, matte black
- Fits Tri Stem, 1/Seventeen + HSF faceplate, Aeria Ultimate, Wing Ultimate
| Capacity | 857 ml (30 oz) |
|---|---|
| Construction | BPA-free, food-safe HDPE bottle |
| Colour | Matte black |
| Straw | 600 mm with bite valve |
| Mount | HSF clip, M5 bolts, 2 Nm |
| Compatible stems | Tri Stem (80/105 mm), 1/Seventeen with HSF Aeria Faceplate (80 mm min), Aeria Ultimate, Wing Ultimate |
| Operating temperature | -40 °C to +75 °C |
| Weight | 420 g |
| SKU | BCP-ACARADRK1 |
| Model # | ACARADRK1 |
| Barcode # | 0723660006242 |
| Brand | Profile Design |
| Shipping Weight | 0.6000kg |
| Shipping Width | 0.160m |
| Shipping Height | 0.060m |
| Shipping Length | 0.220m |
