24" Rear Wheel – Sturmey-Archer S-RF3 3-Speed Hub, Alex DM18 24.4mm Silver Rim, 36H, Silver Spokes
SKU code: BPW-93298
Three gears sealed inside the hub, away from the weather: this 24" rear wheel is built around Sturmey-Archer's S-RF3, a simple way to give a city, cruiser or folding bike a low gear for hills and a high one for the flat.
- Change gear while stopped at the lights, which a derailleur can't do

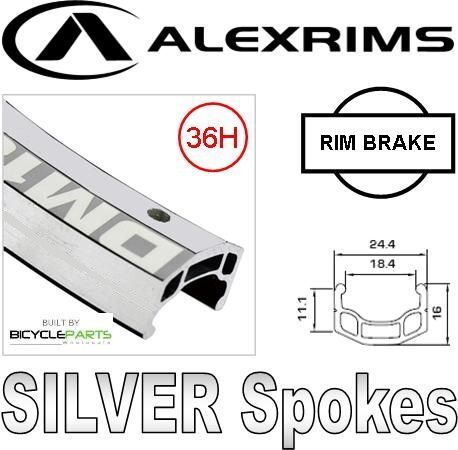

- Alex DM18 rim, 24.4 mm wide, double-wall, laced 36H
- Silver Mach 1 spokes, hand-laced, tensioned and trued
- Built to order to a standard spec, not machine-laced
The hub. Sturmey-Archer lists the S-RF3 as: classic 3-speed internal gear hub, 177% gear range (steps of 33% and 33%); 6061 aluminium hub shell; freewheel version, with no brake in the hub; takes a 13T to 24T sprocket; hub weight 970 g.
Fit. It needs a frame with 117 mm rear spacing and takes a nutted axle. It shifts with a Sturmey-Archer 3-speed shifter and indicator chain; ask us if you need one. It takes a 13T to 24T Sturmey-Archer sprocket. The rim has a machined braking surface for rim brakes.
Built to order. Hand-built by our wheel builder and dispatched in about [lead time] business days.
Not sure it suits your bike? Send us the make, model and year and we'll check before you order. Tune Cycles can also fit it and set up the gears and brake at the same visit.
Sturmey-Archer and the rim maker don't publish consumer warranty terms we can quote for this build. The wheel is covered against defects in materials and manufacture. Normal wear, crash or impact damage and misuse are not covered. If you have a problem, return the item to Tune Cycles with your proof of purchase and we'll manage the claim.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
- Sturmey-Archer S-RF3: classic 3-speed internal gear hub, 177% gear range (steps of 33% and 33%)
- Alex DM18 rim, 24.4 mm wide, silver, 36H double-wall
- Silver Mach 1 spokes, hand-laced and trued
- Brake: rim brake (machined braking surface)
- Nutted axle, 117 mm over-locknut width
- Built to order by our wheel builder
| Wheel size | 24" (ISO 507) |
| Position | Rear |
| Rim | Alex DM18 double-wall (pinned joint) |
| Rim width (external) | 24.4 mm |
| Rim colour | Silver |
| Spoke count | 36H |
| Spokes | Silver Mach 1 |
| Hub | Sturmey-Archer S-RF3 |
| Hub type | 3-Speed Hub |
| Gears | 3-speed internal |
| Brake | Rim brake (machined braking surface) |
| Axle | Nutted axle |
| Over-locknut width (OLD) | 117 mm |
| Hub colour | Silver |
| Hub weight (Sturmey-Archer) | 970 g |
| Supplier code | BPW 93298 |
| SKU | BPW-93298 |
| Model # | 93298 |
| Brand | Workshop Consumables |
| Shipping Weight | 1.4000kg |
| Shipping Width | 0.700m |
| Shipping Height | 0.120m |
| Shipping Length | 0.700m |
