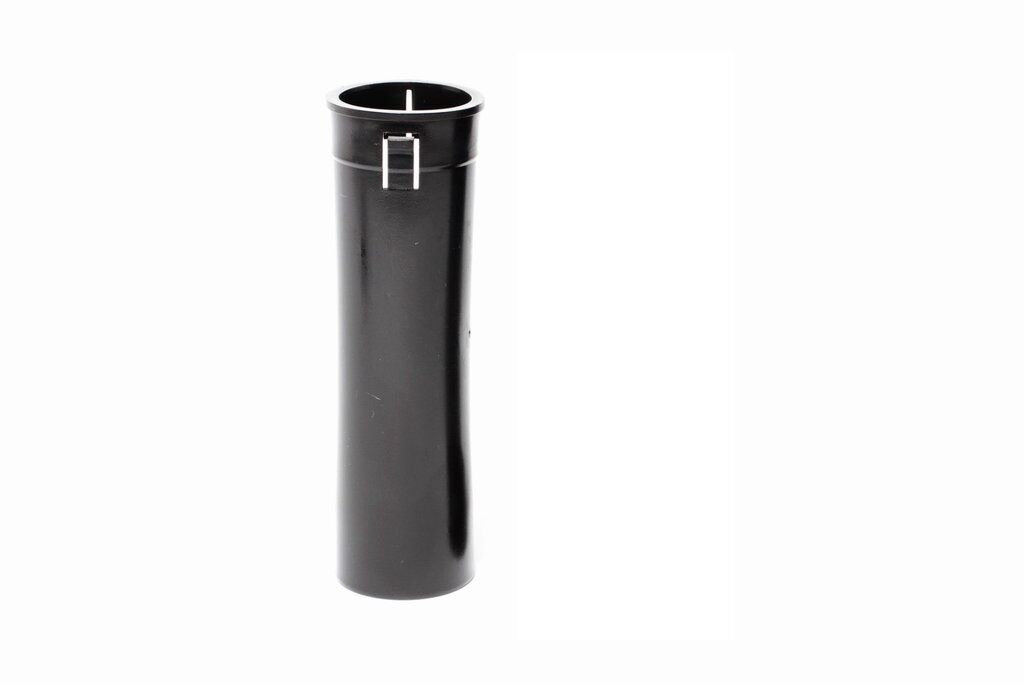

A genuine SR Suntour slider or slider sleeve for XCM, XCT30 (part code FEE785).

  • Takes up play from worn bushings
  • Specs: stanchion 30mm
  • Sold individually
  • Genuine SR Suntour part
  • Part code FEE785: match it to your parts list

The slider sleeve (bushing) guides the stanchion in the lower leg. Worn sleeves let the fork knock or feel loose.

Fit and compatibility

BPW lists it for: XCM, XCT30. SR Suntour's exploded-view parts lists show code FEE785 on: NEX (SF14, SF15, SF18, SF19, SF24); NVX30 (SF21, SF22); NX1 (SF22); XCM (SF13, SF14, SF15, SF16, SF17, SF18, SF20); XCT30 (SF19, SF25). Check the part code against your fork or shock's parts list: SR Suntour parts change between model years, and the code is the surest match.

Not sure which part your fork or shock takes? Send us the model, year and the code on the lower leg or shock body and we'll confirm before you order.

SR Suntour warranty. SR Suntour warrants its products against defects in materials and workmanship for between 6 and 24 months from the date of first retail purchase. The period depends on the product and is set out in SR Suntour's warranty document. SR Suntour's remedy is repair or replacement, at its discretion.

Not covered: normal wear, including oil, dust and oil seals, o-rings, bushings, bearings, stanchion tubes and cartridges; damage from crashes, misuse, incorrect installation or missing maintenance; modified parts; cosmetic marks; and stunt riding or racing. SR Suntour asks for a fault to be reported within 10 days of finding it, with photos, the serial number and the service history.

How to claim: return the item to Tune Cycles with your proof of purchase and we'll manage the claim.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

  • Takes up play from worn bushings
  • Specs: stanchion 30mm
  • Sold individually
  • Genuine SR Suntour part
  • Part code FEE785: match it to your parts list
Fits (per BPW)XCM, XCT30
Stanchion30mm
On SR Suntour parts listsNEX (SF14, SF15, SF18, SF19, SF24); NVX30 (SF21, SF22); NX1 (SF22); XCM (SF13, SF14, SF15, SF16, SF17, SF18, SF20); XCT30 (SF19, SF25)
QuantitySold individually
Part codeFEE785
SKU BPW-FEE785
Model # FEE785
Brand SR Suntour
Shipping Weight 0.1500kg
Shipping Width 0.160m
Shipping Height 0.060m
Shipping Length 0.220m
