Wheels MFG Replacement Hub Axle – 08 - Rear Campy QR 141x10x26
SKU code: SCV-WMWA-AXLE-08
$83.00

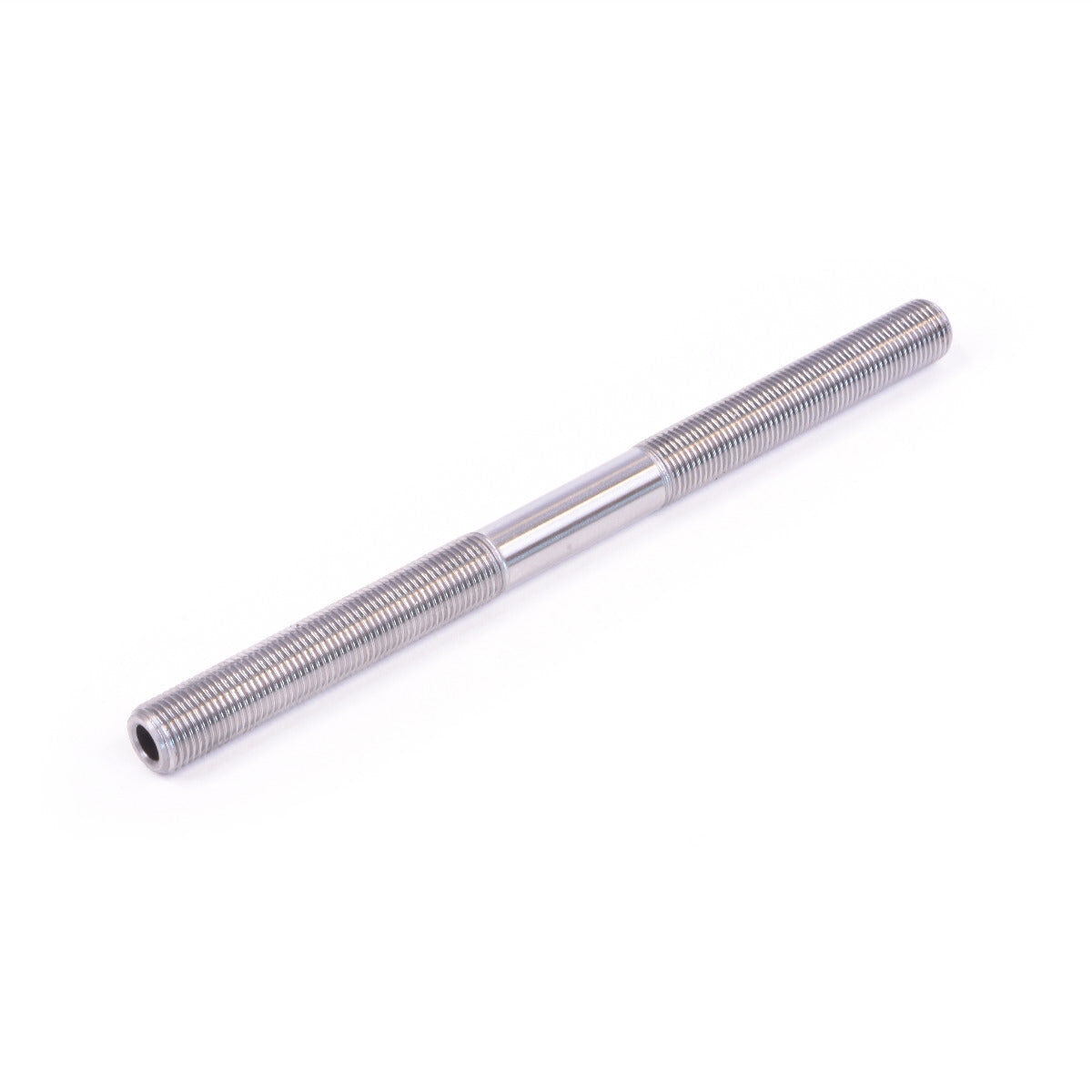

Keep an ageing hub spinning true with a genuine Wheels Manufacturing replacement axle, machined from aircraft-quality 4130 alloy steel and heat-treated for strength without brittleness.
Highlights
- Aircraft-quality 4130 alloy steel, heat-treated
- Rolled threads for easy cone and locknut assembly
- Five drop-in options across rear and front, hollow and solid axle types
- Covers Shimano/Japanese and Campagnolo/Italian hub standards
- Sold as a single axle per pack
Sizes & options
| Option | Fits | Type | Thread | Length |
|---|---|---|---|---|
| 01 – Rear Shimano QR | Shimano / Japanese rear hubs | Hollow | 10mm x 1mm | 137mm |
| 08 – Rear Campy QR | Campagnolo / Italian rear hubs | Hollow | 10mm x 26tpi | 141mm |
| 09 – Rear Campy QR | Campagnolo / Italian rear hubs | Hollow | 10mm x 26tpi | 146mm |
| 14 – Front Shimano Solid | Shimano / Japanese front hubs | Solid | 9mm x 1mm | 155mm |
| 18 – Rear Campy Solid | Campagnolo / Italian rear hubs | Solid | 10mm x 26tpi | 174mm |
Compatibility & fit
Each option is built to one specific hub standard, not a universal fit. Match diameter, thread and length against the axle you are replacing, or bring the hub or old axle into Tune Cycles and our workshop will confirm the right one before fitting.
Wheels Manufacturing backs this product with a 1 year warranty, 30-day returns. For warranty support, return the product to Tune Cycles and we'll manage the claim with Wheels Manufacturing's Australian distributor.
- Aircraft-quality 4130 alloy steel, heat-treated for strength without brittleness
- Rolled threads for easy assembly of cones and locknuts
- Hollow and solid axle types across five drop-in sizes
- Covers Shimano/Japanese and Campagnolo/Italian rear and front hub standards
- Sold as a single replacement axle per pack
| Material | 4130 alloy steel, heat-treated |
|---|---|
| Axle types | Hollow (QR) and solid |
| Thread standards | 10mm x 1mm, 10mm x 26tpi, 9mm x 1mm |
| Length range | 137mm–174mm across the five options |
| Pack quantity | 1 axle per pack |
| Option (Size) | 01 Rear Shimano QR 137mm; 08 Rear Campy QR 141mm; 09 Rear Campy QR 146mm; 14 Front Shimano Solid 155mm; 18 Rear Campy Solid 174mm |
| SKU | SCV-P-10913 |
| Brand | Wheels MFG |
| Shipping Weight | 0.2000kg |
| Shipping Width | 0.160m |
| Shipping Height | 0.060m |
| Shipping Length | 0.220m |
