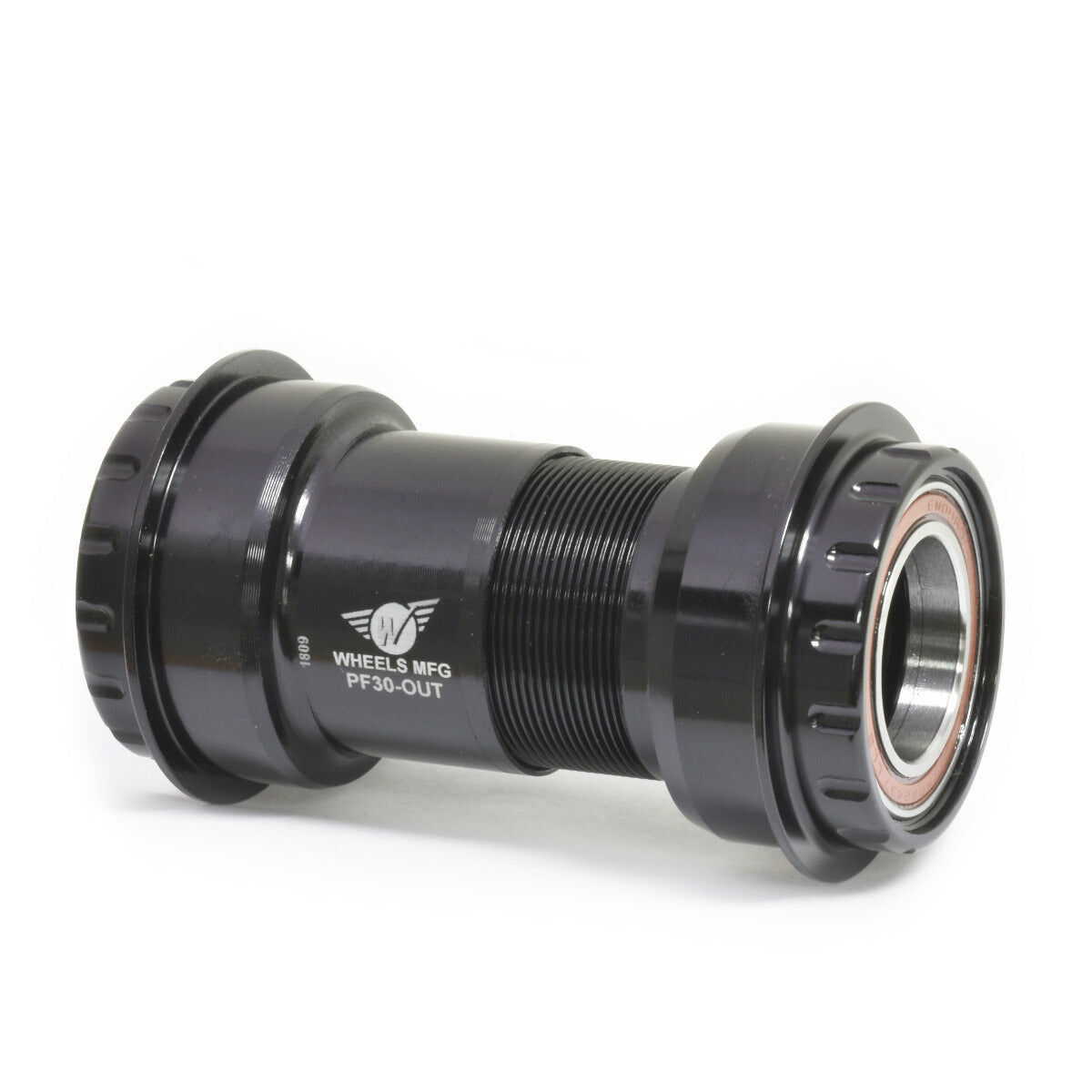

This Wheels Manufacturing bottom bracket converts a PF30 frame shell to outboard bearings for 24mm Shimano and FSA cranks, with no adapter required.

Highlights

  • Enduro ABEC 5 angular contact bearings - every ball engaged, spreading force over a larger area to cut friction and wear
  • Dual silicone seals keep contamination out for longer bearing life
  • Black anodised, machined aluminium cups
  • Made in the USA
  • Weighs 153g

Fits Shimano and FSA 24mm cranks

Built for current 24mm Shimano and FSA crank spindles. Wheels Manufacturing also lists a 24/22mm version for SRAM and Truvativ cranks - check your crank's spindle diameter before ordering.

Compatibility & fit

Fits PF30 frame shells 68-73mm wide with a 46mm bottom bracket shell inner diameter. The Tune workshop can press this in with the correct drift.

Wheels Manufacturing backs this bottom bracket with a 1-year warranty against manufacturing defects, plus 30-day returns on unused, unopened stock bought direct from Wheels Manufacturing. Wear items such as bearings, seals and spacers aren't covered under the defect warranty. For warranty support, return the product to Tune Cycles and we'll manage the claim with Wheels Manufacturing's Australian distributor.
  • Enduro ABEC 5 angular contact sealed bearings
  • Dual silicone seals
  • Black anodised machined aluminium cups
  • Fits 24mm Shimano/FSA cranks
  • Made in the USA
Bottom bracket shell width68-73mm (PF30)
Bottom bracket shell ID46mm
Crank spindle24mm (Shimano, FSA)
BearingsEnduro ABEC 5 angular contact
FinishBlack anodised aluminium
Weight153g
SKU SCV-WMBB-PF30-OUT-3
Brand Wheels MFG
