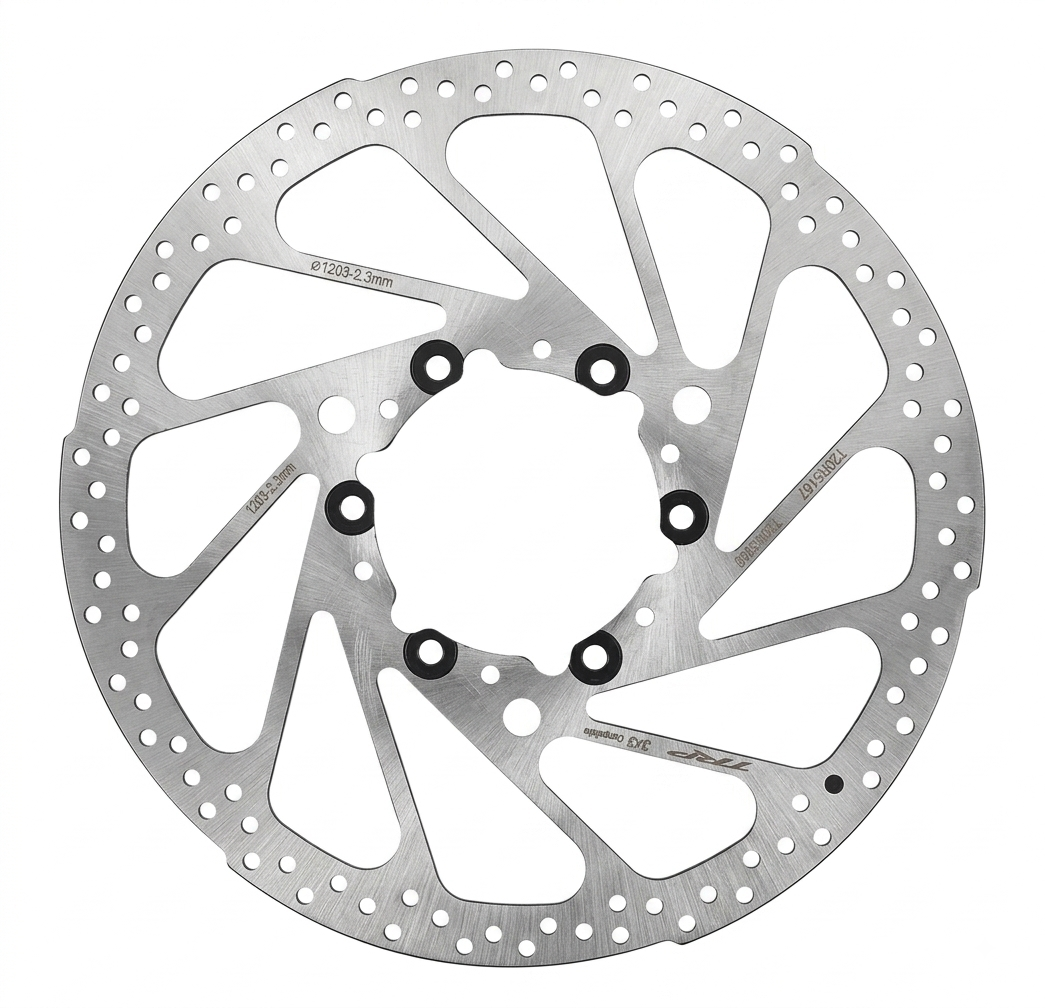

TRP 2.3mm 6-Bolt Rotor for 3x3 Gear Hub (PCD 72.25)

A 2.3 mm rotor made for the 3x3 internal gear hub's 72.25 mm bolt circle — not a standard 6-bolt disc.

Highlights

  • 2.3 mm stainless steel
  • PCD 72.25 mm bolt pattern for 3x3 gear hubs
  • M5 x 10 mm bolts included
  • 180 or 203 mm

Fit and compatibility

3x3 gear hubs with the 72.25 mm PCD only, on a 2.3 mm caliper. It does not fit a standard 44 mm 6-bolt hub.

Choose your rotor size from the options above. Not sure what fits? Ask us — we fit and service these in our workshop.

TRP covers this product against defects in materials and workmanship for two years from purchase. Wear items, crash damage, and damage from incorrect fitting, adjustment or maintenance are not covered. If you have a warranty concern, return the item to Tune Cycles and we will manage the claim with the distributor on your behalf — you do not need to contact TRP or the importer. This sits alongside your rights under the Australian Consumer Law.

  • 2.3 mm stainless steel
  • PCD 72.25 mm
  • M5 x 10 mm bolts included
BrandTRP
ModelTR-57E
Thickness2.3 mm
Bolt circlePCD 72.25 mm (3x3 gear hub)
BoltsM5 x 10 mm, included
Sizes180, 203 mm
ModelTR180-57E / TR203-57E
SKU TRP-RT-23-3X3
Brand TRP
Shipping Weight 0.2500kg
Shipping Width 0.220m
Shipping Height 0.030m
Shipping Length 0.220m
