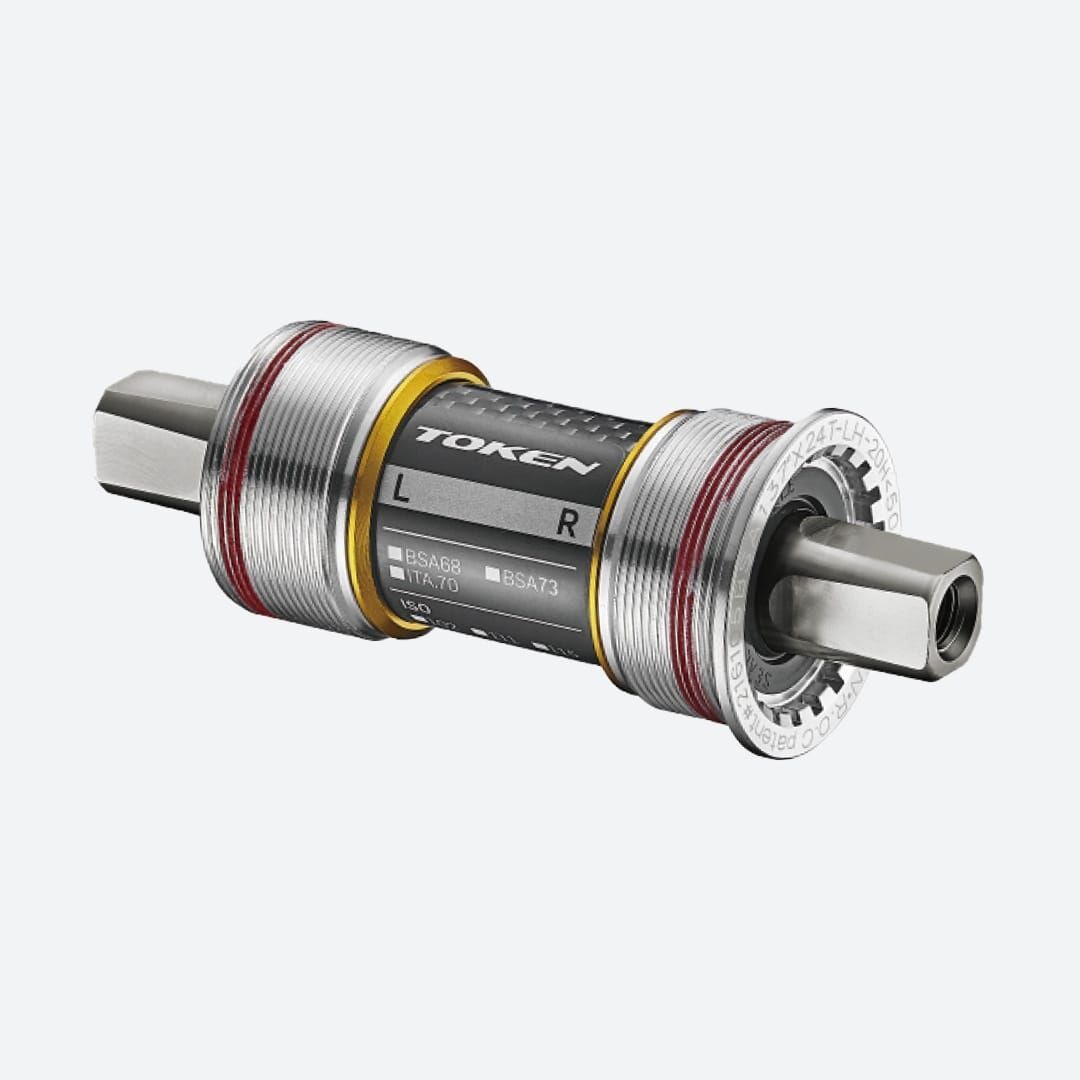

Token's square taper bottom bracket is built for BSA-threaded frames, with a well-sealed design and a patented cup that makes it impossible to over-tighten and damage the bearings.

Highlights

  • Forged alloy cups for durability at a low weight
  • Patented design prevents over-tightening damage to the bearings
  • CNC-machined hollow cromoly axle for reduced weight
  • Premium bearings, well sealed against the elements

Built to last

Forged alloy cups and a sealed bearing design keep the bottom bracket running smoothly for the long term, while the patented cup design stops installers from over-tightening the unit and damaging the bearings inside.

Compatibility & fit

Threads into a 68mm BSA bottom bracket shell. Axle length is 116mm, a length typically used with triple mountain bike cranksets — check your crankset's specified spindle length before ordering.

Fitting

Our workshop can fit and check bottom brackets as part of a service — ask in-store or when you book online.

Token bottom brackets carry a 2-year warranty against defects in materials or workmanship from the original date of purchase, covering the original purchaser only. For warranty support, return the product to Tune Cycles and we'll manage the claim with JetBlack Cycling, Token's Australian distributor.
  • Forged alloy cups for durability and low weight
  • Patented anti-over-tightening cup design protects the bearings
  • CNC-machined hollow cromoly axle
  • Well sealed against dirt and water
  • 116mm axle length for triple mountain bike cranksets
Shell standardBSA, 68mm
Crank interfaceJIS square taper
Axle materialCromoly, CNC-machined hollow axle
Axle length116mm
Bearing typePremium bearings
CupsForged alloy
ColourSilver
SKU JET-TK-DBB838HAL-116
Brand Token
