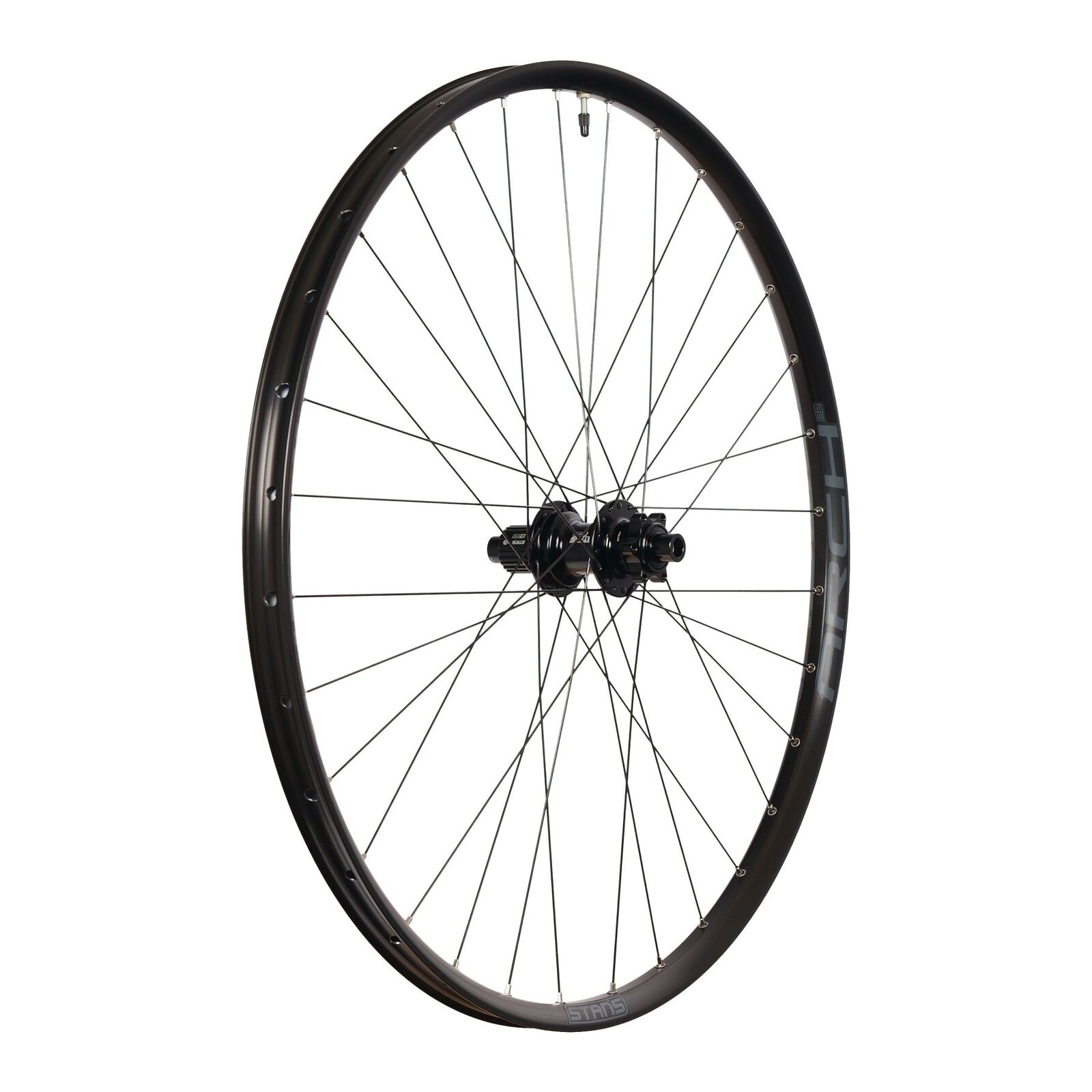

The Arch S2 rear wheel is built for versatility across trail, all-mountain, enduro and eBike riding, combining Stan's tubeless-ready BST rim with a durable, fast-engaging E-sync hub.

Highlights

  • Versatile 28mm internal width, optimised for 2.2–2.5″ tyres
  • 6061 aluminium rim with a sleeved joint and stainless steel rim eyelets
  • Patented Bead Socket Technology (BST) for easy tubeless inflation and a reliable seal
  • E-sync hub with 8.18° engagement and reinforced pawls
  • Cromoly axle and double-row Enduro bearings for a 47% increase in max torque capacity over Neo hubs
  • Tubeless ready with rim tape pre-installed

Rim & hub

A reinforced, eyeletted spoke bed and a reliable sleeved joint back the 6061 aluminium construction, with a 28mm internal width for excellent cornering with 2.2–2.5″ tyres. The E-sync hub uses cromoly steel axles, double-row Enduro bearings and heat-treated steel ratchet rings, built to handle eBike torque and aggressive trail riding, with four pawls engaging in only 8.18° of rotation.

Compatibility & fit

This wheel is built for a 12×148mm Boost rear axle with a 6-bolt disc rotor mount and a Shimano HG freehub body. Our workshop can handle tubeless tyre set-up on request.

Stan's NoTubes backs its wheels, rims, hubs and accessories against defects in materials and workmanship for the original owner under its published warranty policy; it excludes misuse, crash damage outside a registered crash-replacement claim, and normal wear and tear. For warranty support, return the product to Tune Cycles and we'll manage the claim with JetBlack Cycling, Stan's NoTubes' Australian distributor. For warranty support, return the product to Tune Cycles and we'll manage the claim with JetBlack Cycling, Stan's NoTubes' Australian distributor.
Versatile 28mm internal width for 2.2–2.5″ tyres, 6061 aluminium rim, sleeved joint, stainless steel eyelets, Bead Socket Technology (BST) tubeless-ready rim, E-sync hub, 8.18° engagement, reinforced pawls, Shimano HG freehub body, Tubeless ready with rim tape pre-installed
Wheel positionRear
Axle12×148mm (Boost)
Brake mount6-bolt disc
Wheel size29″
FreehubShimano HG
Rim internal width28mm
Rim material6061 aluminium alloy
HubE-sync, cromoly axle, double-row Enduro bearings
LacingTraditional J-bend, single spoke length
Tyre range2.2–2.5″
SKU JET-NT-DWA290008
Brand Stan's
Shipping Weight 1.4000kg
Shipping Width 0.700m
Shipping Height 0.120m
Shipping Length 0.700m
