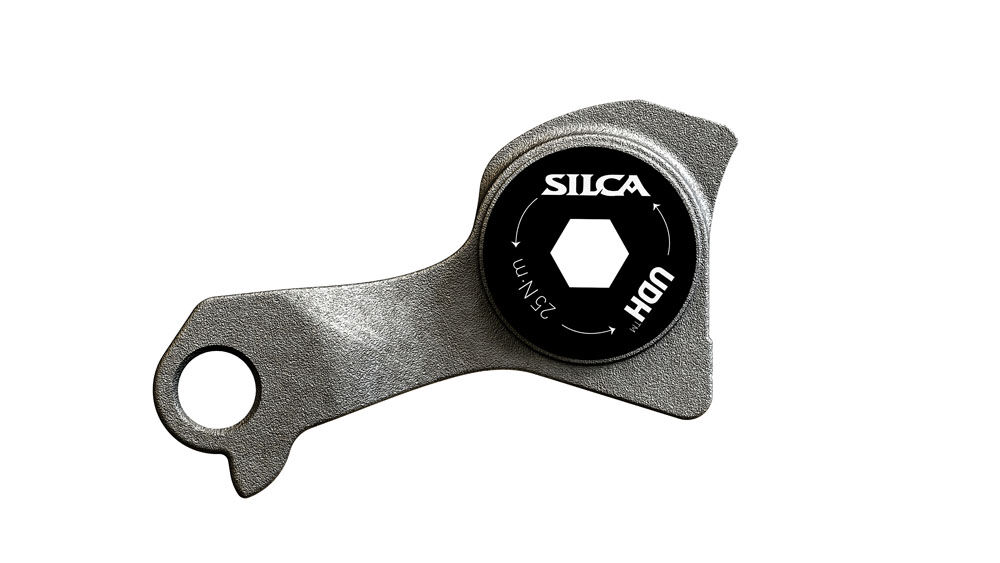

If your frame uses a UDH (Universal Derailleur Hanger), SILCA's 3D-printed titanium version gives you a stiffer, lighter hanger that holds alignment through hard shifting and knocks.

Highlights

  • Fits frames built to the UDH standard
  • Shimano (Direct Mount) version replaces the B-link: 8-12x stiffer and 4-10 g lighter (SILCA figures)
  • SRAM (standard) version: 2-7x stiffer, 2-6 g lighter than aluminium (SILCA figures)
  • Each hanger verified to within 0.2 degrees of parallelism

Why titanium

Modern electronic derailleurs shift fast and hard enough to flex a conventional aluminium-plate hanger by up to 4 degrees mid-shift, costing precision and speed. SILCA designs each hanger with AI-generated structural infill and 3D prints it in titanium. SILCA 3DP hangers were used on 2 stage wins at the 2023 Tour de France and are credited with holding derailleur alignment through numerous crashes.

Alignment: read before fitting

Every SILCA hanger is verified to within 0.2 degrees of parallelism before it ships. Do not use a hanger alignment gauge or try to bend it: titanium resists cold-bending, and forcing it risks snapping the internal fracture geometry designed to protect your frame. If alignment measures out after fitting, SILCA points to the frame, a dirty dropout or a bent derailleur cage instead. Hanger fitting and gear set-up are available as a separate Tune Cycles workshop service.

Compatibility & fit

For UDH-compatible frames only. SILCA says that if your frame is not UDH-compatible and isn't on its list of frame-specific hangers, it has no confirmed fit. Direct mount hangers replace the B-link on Shimano derailleurs. For non-UDH frames, see SILCA's frame-specific Direct Mount and Standard 3DP hangers.

Options

Shimano (Direct Mount)SILCA 'Direct Mount' UDH hanger. Replaces the B-link on a Shimano derailleur.
SRAMSILCA 'Standard' UDH hanger. Conventional hanger shape.
Covered by the SILCA Limited Lifetime Warranty: free of defects in materials or manufacture for the lifetime of the original user, with hard parts guaranteed to remain functional for 7 years from the date of purchase. Abuse, modification, impacts and crash damage are not covered; rubber, leather and gauge parts fall under SILCA's 2-year Limited Warranty. For warranty support, return the product to Tune Cycles and we'll manage the claim with SILCA's Australian distributor.
  • For UDH-standard frames
  • 3D-printed titanium with AI-generated structural infill
  • Direct Mount version replaces the Shimano B-link
  • Verified to within 0.2 degrees of parallelism
  • Do not bend or use an alignment gauge
Material3D-printed titanium
StandardUDH (Universal Derailleur Hanger)
ToleranceWithin 0.2 degrees of parallelism
OptionsDrivetrain: Shimano (Direct Mount) = SILCA Direct Mount; SRAM = SILCA Standard
SKU ECH-P-SI-3DP-UDH-HANGER
Brand SILCA
