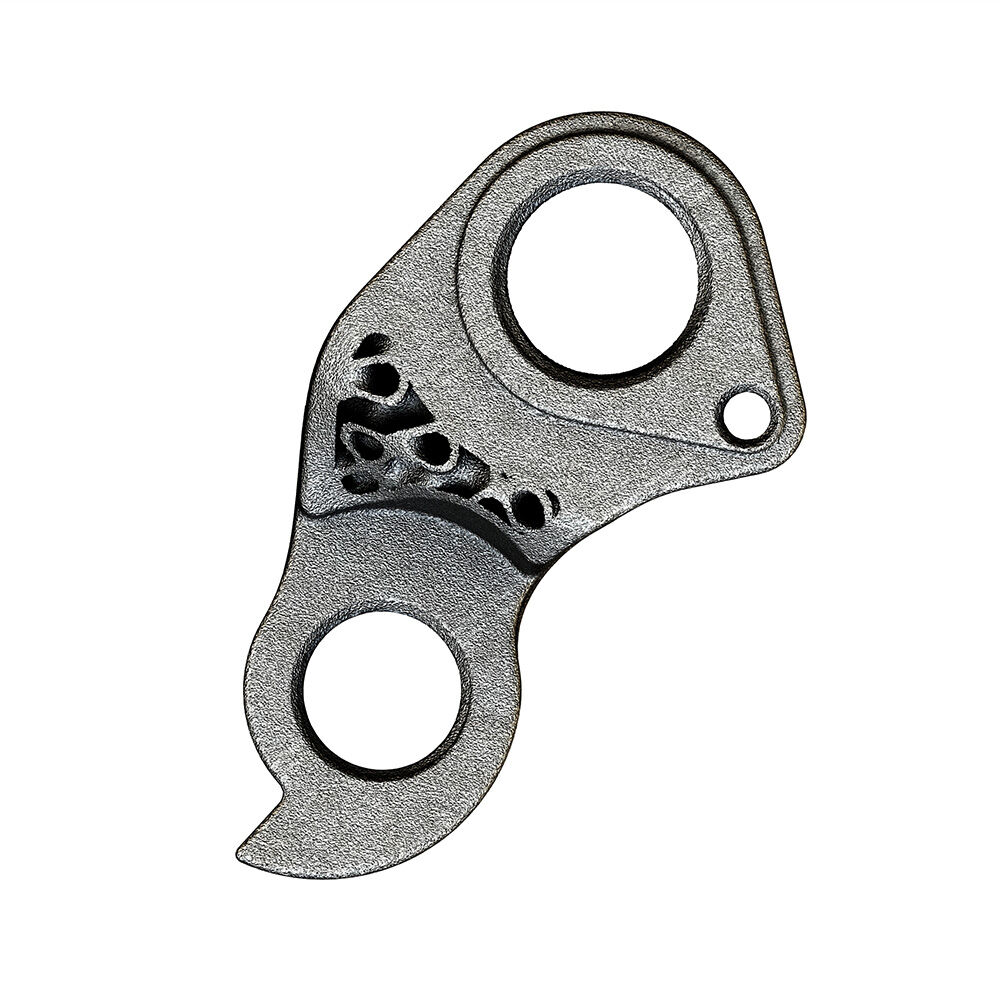

SILCA's 3D-printed titanium standard hanger swaps a flexy aluminium plate for a stiff, precisely made titanium part, so your derailleur stays where it should be under hard, fast shifts.

Highlights

  • 3D-printed titanium with AI-generated structural infill
  • SILCA quotes 2-7x the stiffness of aluminium hangers
  • 2-6 g lighter than aluminium, depending on model
  • Each hanger verified to within 0.2 degrees of parallelism
  • Frame-specific shapes for nine brands

Why titanium

Modern electronic derailleurs shift fast and hard enough to flex a conventional aluminium-plate hanger by up to 4 degrees mid-shift, costing precision and speed. SILCA designs each hanger with AI-generated structural infill and 3D prints it in titanium. SILCA 3DP hangers were used on 2 stage wins at the 2023 Tour de France and are credited with holding derailleur alignment through numerous crashes.

Alignment: read before fitting

Every SILCA hanger is verified to within 0.2 degrees of parallelism before it ships. Do not use a hanger alignment gauge or try to bend it: titanium resists cold-bending, and forcing it risks snapping the internal fracture geometry designed to protect your frame. If alignment measures out after fitting, SILCA points to the frame, a dirty dropout or a bent derailleur cage instead. Hanger fitting and gear set-up are available as a separate Tune Cycles workshop service.

Compatibility & fit

This is the standard-shape hanger that SILCA sells as the SRAM version of each numbered hanger. Choose the option for your frame brand, then check your model and year in the table below. Frames not listed have no confirmed SILCA fit. For Shimano direct mount derailleurs, see the SILCA 3DP Titanium Direct Mount Derailleur Hanger; for UDH frames, see the SILCA 3DP Titanium UDH Derailleur Hanger.

Options

Frame optionSILCA hanger number and frames SILCA lists for it
CannondaleSILCA hanger 101: SuperSix (non-Speed Axle) 2020-2022; SystemSix (non-Speed Axle) 2019-2021; Topstone Carbon (non-Speed Axle) 2019-2021; Topstone Alloy (non-Speed Axle) 2019-2023; CAAD13 (non-Speed Axle) 2020-2023
Cervélo / FocusSILCA hanger 102: Cervélo disc-brake bikes 2016 on, except P5X (SILCA lists no Focus models)
FactorSILCA hanger 103: RD-H6 road and gravel disc frames, all years
GiantSILCA hanger 104: Avail Advanced and Defy Advanced 2017-2023; Anyroad Advanced 2018-2020; Langma Advanced Disc 2018-2021; Propel Advanced Disc 2018-2021; TCR Advanced Disc 2017-2020
SpecializedSILCA hanger 105: Diverge thru-axle disc 2015-2020; Roubaix thru-axle disc 2016-2020; Tarmac SL6 Disc 2018-2020; Tarmac SL7 Disc 2020-2023; Tarmac SL8 Disc 2023 on; Aethos Disc 2020 on; Allez thru-axle disc 2019-2020; Shiv Disc 2019-2020; Crux thru-axle disc 2019-2020; Venge Disc 2019-2021
ScottSILCA hanger 106: Solace Disc 2016-2017; Addict CX 2016-2021; Addict Gravel 2016-2021; Addict Disc 2017-2019; Foil Disc 2018-2022
TrekSILCA hanger 107: Domane Disc 2017 on; Boone Disc 2018 on; Emonda Disc 2018 on; Madone Disc 2019 on; Crockett Disc 2020 on; Checkpoint 2022 on; Speed Concept 2022 on
CanyonSILCA hanger 108: Endurace CF SLX Disc 2016-2022; Ultimate CF SLX Disc 2017-2022; Endurace AL Disc 2018-2023; Inflite CF SLX Disc 2018-2023; Grail CF SLX Disc 2018-2022; Grail AL Disc 2018-2022; Aeroad CF SLX Disc 2017-2019
Pinarello #209SILCA hanger 109: F8 Disc 2017 on; F10 Disc 2018 on; Dogma F 2021 on; K10S Disc 2018 on; Gan Disc 2018 on; Prince 2018 on; Gan GR Disc 2018 on; Grevil 2018 on
Covered by the SILCA Limited Lifetime Warranty: free of defects in materials or manufacture for the lifetime of the original user, with hard parts guaranteed to remain functional for 7 years from the date of purchase. Abuse, modification, impacts and crash damage are not covered; rubber, leather and gauge parts fall under SILCA's 2-year Limited Warranty. For warranty support, return the product to Tune Cycles and we'll manage the claim with SILCA's Australian distributor.
  • Standard-shape hanger, SILCA's SRAM version
  • 2-7x stiffer than aluminium (SILCA figures)
  • 2-6 g lighter depending on model
  • Verified to within 0.2 degrees of parallelism
  • Do not bend or use an alignment gauge
Material3D-printed titanium
TypeStandard hanger, SRAM version
Stiffness2-7x an aluminium hanger (SILCA)
Weight saving2-6 g depending on model (SILCA)
ToleranceWithin 0.2 degrees of parallelism
OptionsFrame: Cannondale (101), Canyon (108), Cervélo / Focus (102), Factor (103), Giant (104), Pinarello #209 (109), Scott (106), Specialized (105), Trek (107)
SKU ECH-P-SI-3DP-STD-HANGER
Brand SILCA
